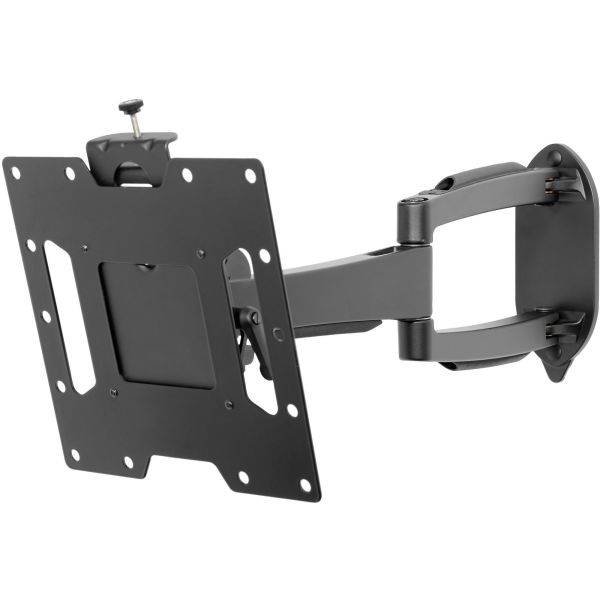

Peerless Articulating LCD Wall Arm

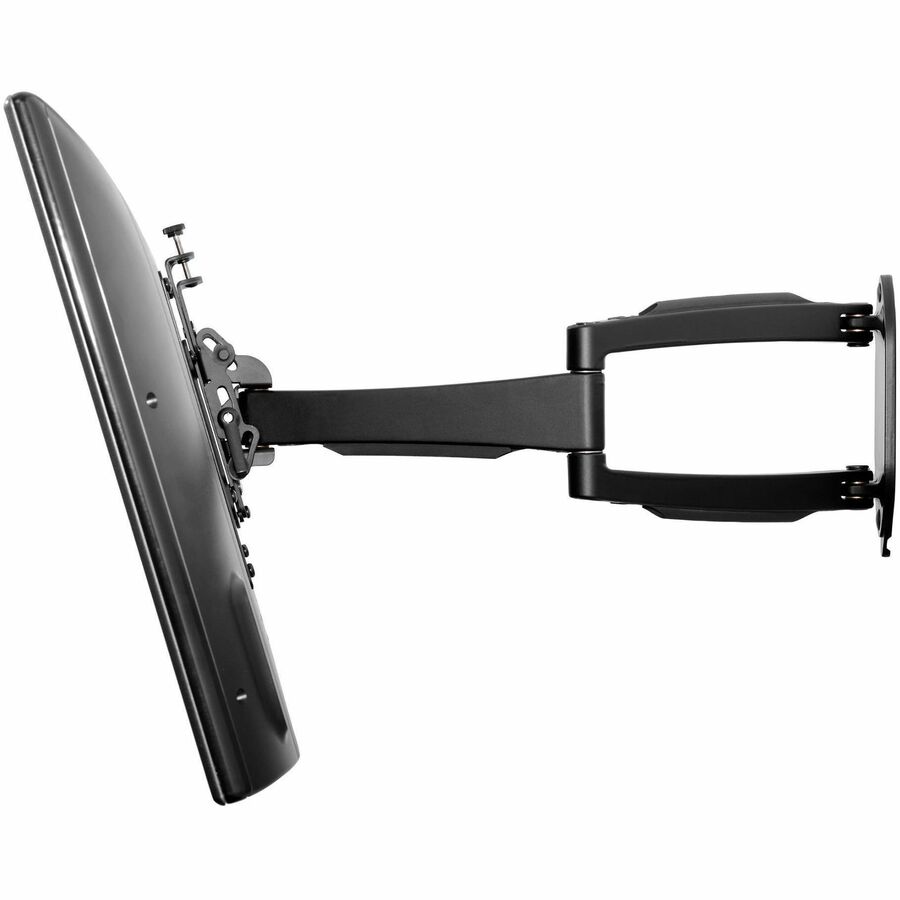

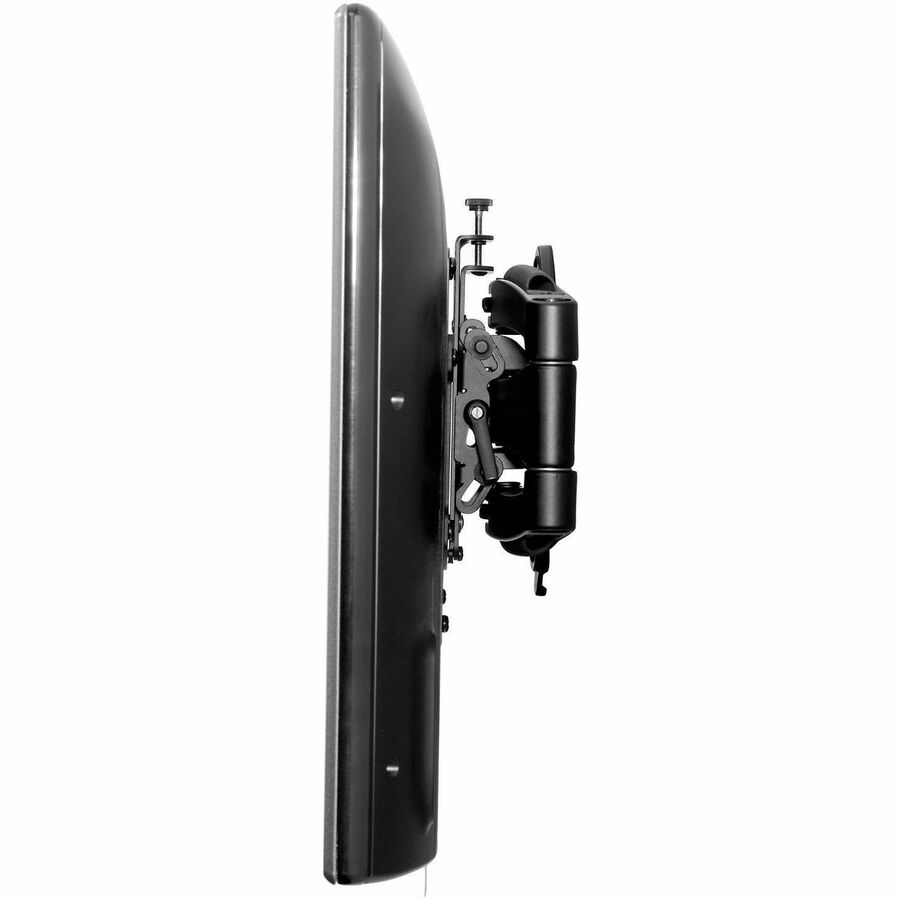

The SmartMount^® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

• Retractable
• Hook-and-Hang Design
• Adjustable Viewing Angle
• Vertical Tilt
• Cable Management

• 100 x 100
• 200 x 100
• 200 x 200

• Anodized Aluminum
• Steel

• 1 x Articulating LCD Wall Arm
• 2 x Alligator Anchor
• 4 x 0.198" ID x 0.313" OD x 0.437" H Retaining Spacer
• 1 x 3/16" Allen Wrench
• 4 x M4 x 0.7 x 12 mm Phillips Screw
• 4 x M4 x 0.7 x 20 mm Phillips Screw
• 4 x M6 x 1 x 12 mm Phillips Screw
• 2 x #14 x 2-1/2" Flat Head Wood Screw
• 2 x 1/4-20 x 0.5" Flat Head Phillips Screw
• 4 x M6 x 1 x 20 mm Phillips Screw
• 4 x M6 x 1 x 30 mm Phillips Screw

• Comes with VESA 100mm/200mm/200 x 200mm screen adapter plate
• Three pivot points for virtually limitless adjustment that can be tightened to restrict movement
• Adjustable roll of 7º in either direction allows screen to be easily leveled

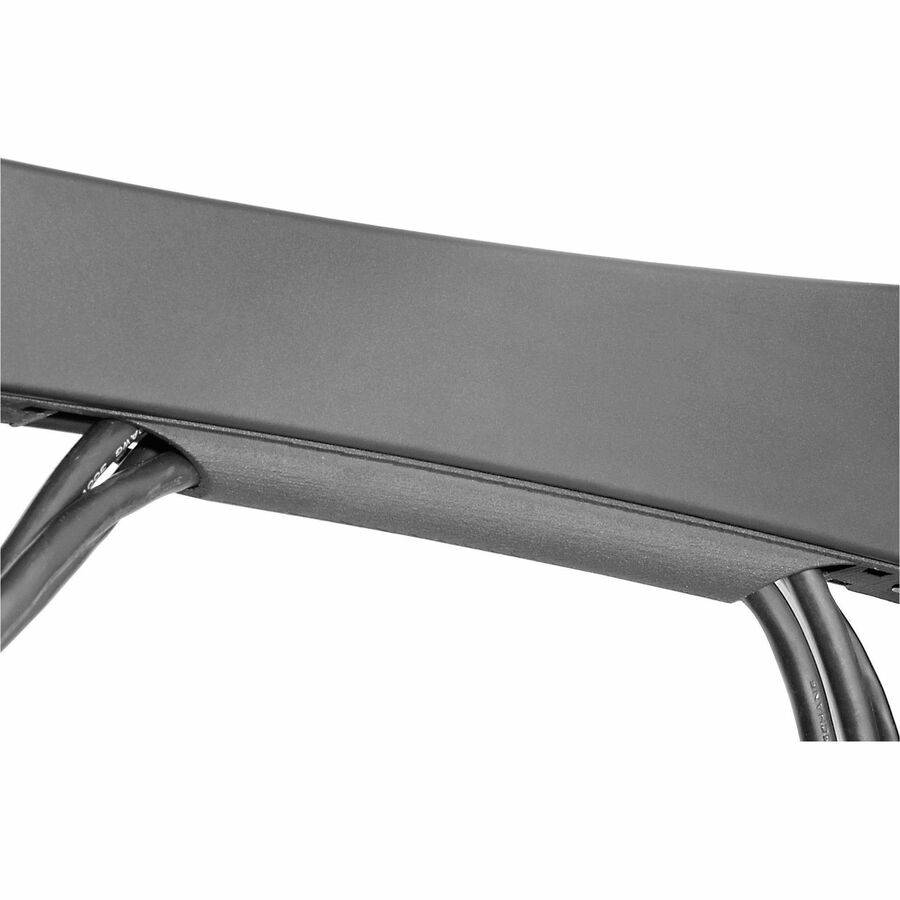

• Built-in internal cord management conceals wires for a clean look
• Scratch resistant epoxy finish

22" to 43" LCD Screens

UL
