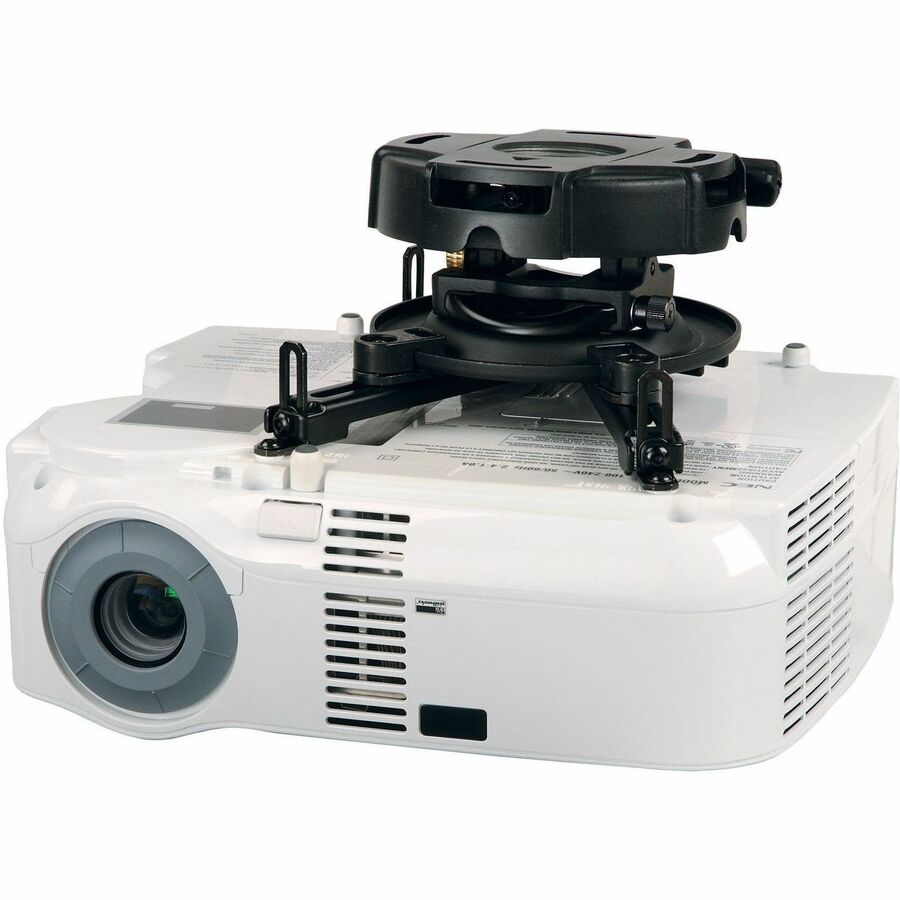

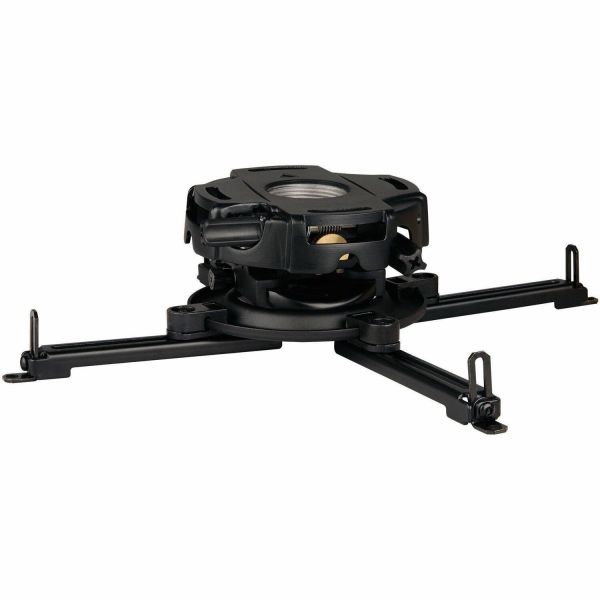

Peerless PRG-UNV Precision Gear Projector Mount

Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV' PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories.

• Tilt
• 360° Swivel
• Lockable
• Tamper Resistant
• Cable Management

PRG-UNV Precision Gear Projector Mount Includes:

• 1 x Projector mount assembly
• 1 x Adapter plate
• 2 x Concrete anchor
• 2 x (#14 x 2.5) Phillips hex head wood screw
• 1 x (#10-32 x 1/4") Socket pin screw
• 1 x 1/4" Flat washer
• 4 x #6 Flat washer x .5 OD
• 1 x 2 mm Security allen wrench
• 1 x 4 mm Security allen wrench
• 4 x (M3 x 8 mm) Serrated washer head socket pin screw
• 4 x (M4 x 10 mm) Serrated washer head socket pin screw
• 4 x (M5 x 10 mm) Serrated washer head socket pin screw
• 4 x (M6 x 10 mm) Serrated washer head socket pin screw

• Tilt- ± 20°, Roll ± 10°
• Pre-assembled design reduces installation time
• Quick release mechanism to easily service projector
• Two adjustment knobs control projector image alignment
• Horizontal wrench access slots make flush mounting installations fast & easy
• Cable management allows cables to be routed through projector mount out of sight
• Swivel (Yaw) 360° (when attached to an extension column), +/- 15° (when flush mounted)

Projector

UL
