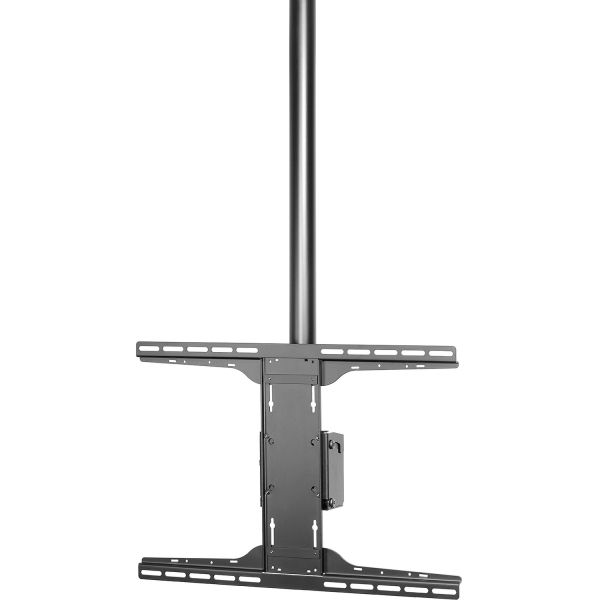

Peerless PLCM-UNL Solid-Point Flat Panel Straight Column Ceiling Mount

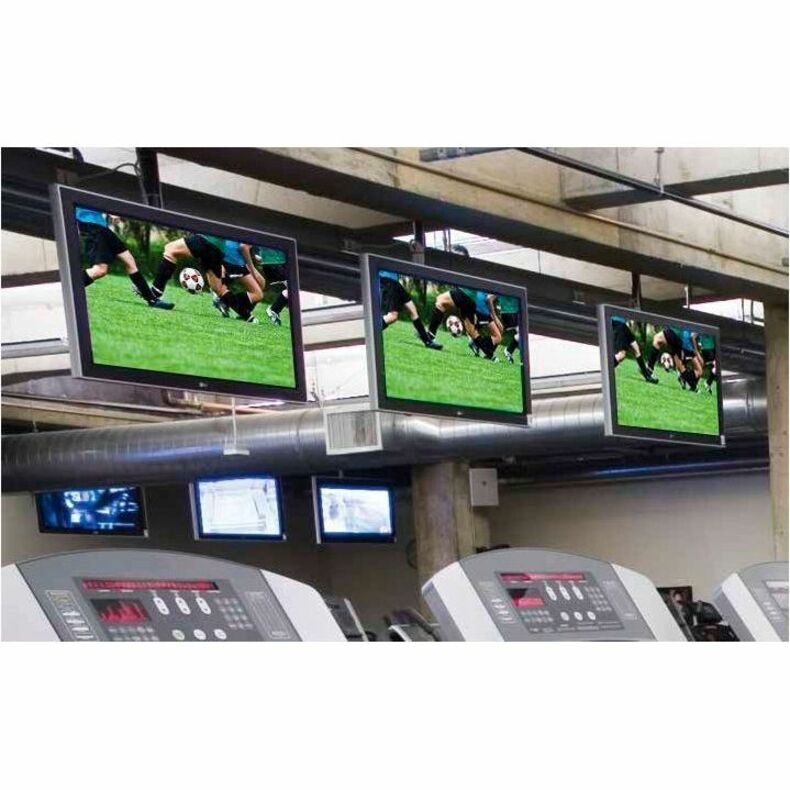

Peerless-AV's PLCM flat panel ceiling mount products and components utilize a 1.5'' Prime; NPT pipe for versatility, support and connection. The 1.5'' NPT threaded pipe make it simple to customize each mount to your specific application. The PLCM-UNL kit combines the PLP-UNL universal adaptor plate, the PLCM-2 tilt box and a fixed length 1.5'' NPT column to deliver a drop of 30''; for display mounting patterns of up to 730 x 405 mm. When combined with a Peerless-AV ceiling plate, it provides the perfect combination for flat panel ceiling mounting for sports facilities, airports, lobbies or retail environments.

• Cable Management
• Antimicrobial
• Adjustable
• 20° Tilt
• 360° Swivel

• 1 x Adapter bracket
• 2 x Shallow adapter bracket
• 2 x Deep adapter bracket
• 1 x Security allen wrench
• 1 x Ceiling arm box
• 1 x Tilt bracket
• 1 x Support pipe (33")
• 1 x Retaining collar
• 4 x Penta-pin screw (M5 x .8 x 10 mm )
• 1 x Fiber washer ( 2.875 OD x 2.125 ID x .062 H)
• 8 x Penta-pin screw (M10 x 1.5 x 15 mm)
• 1 x Penta-pin tool (M10 x 2")
• 1 x Penta-pin tool (M5 x 1" )
• 4 x Phillips Type F screw (M5 x .8 x 8 mm)

• Screen mounts vertically or horizontally
• Uses standard 1 1/2" - 11.5 NPT schedule 40 pipe
• Additional length can be added for lowering
• Theft-resistant security fasteners secure the screen to the mount
• Cord management

Flat Panel Screens: 32" - 60"
