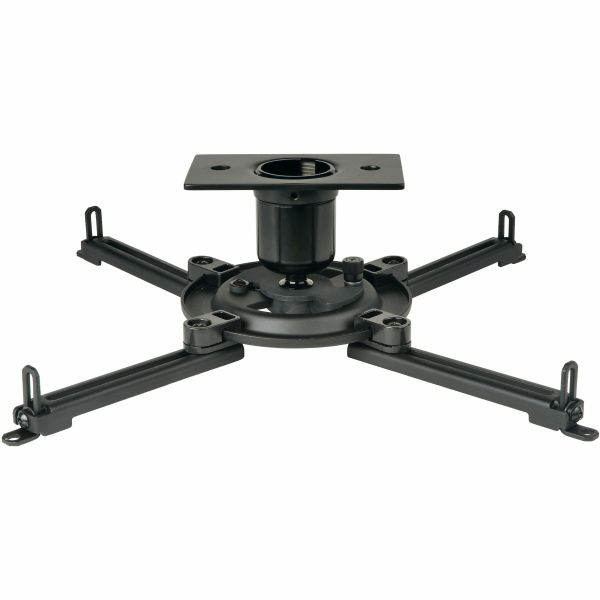

Peerless PJF2-UNV Spider Universal Projector Mount with Vector Pro II

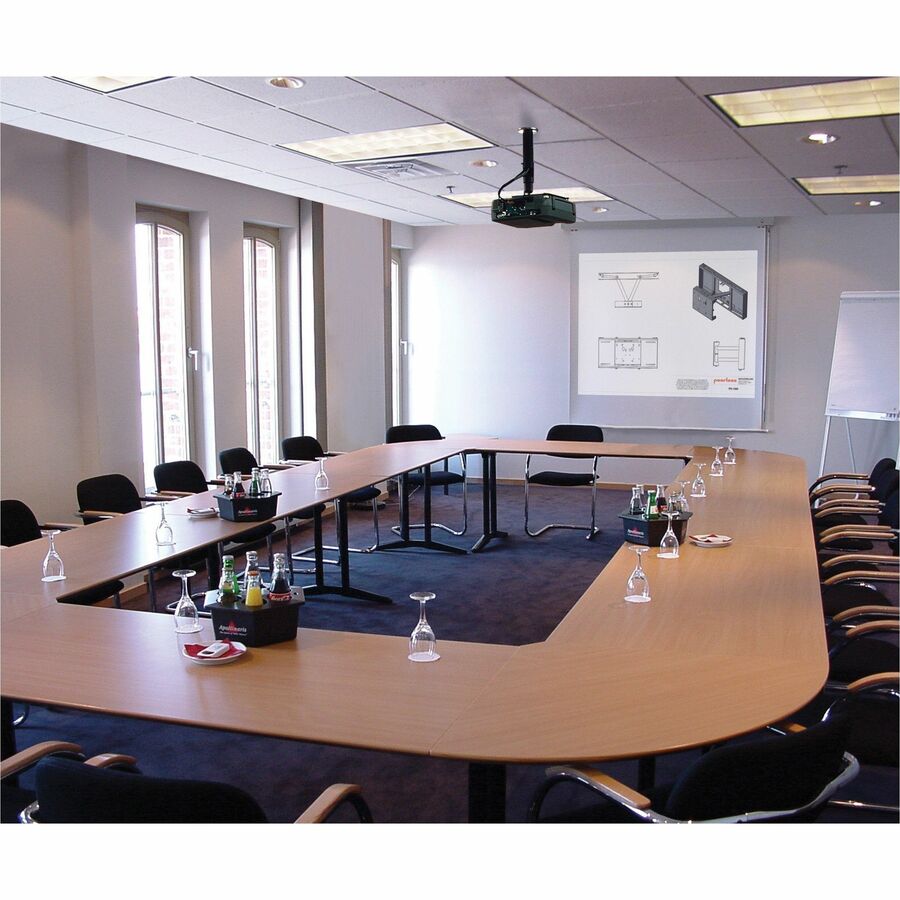

Vector Pro™ II provides a clean look with its cable management capabilities. The included extension column connector incorporates internal cable management paths that keep unsightly cords concealed from view. The mount also features a ceiling plate, ball and socket design, multidirectional positioning (roll, pitch and yaw) for proper image alignment and preinstalled security hardware at every connection point. This projector mount is perfect for use in classrooms, boardrooms, hotels, bars and restaurants or anywhere a projector needs to be mounted. The Vector Pro™ II can be flush mounted to the ceiling or mounted on the wall. It can also be mounted using 1-1/2" (38 mm) diameter extension column or 1/2" (38 mm) thread rod. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories.

• 1 x Ball and socket mount
• 1 x Socket pin type F screw (M5 x .8 x 10 mm )
• 1 x Spade thumb screw (#10-32 x 3/8" )
• 1 x Serrated washer head socket pin screw (#10-32 x 3/8" )
• 2 x Phillips hex head wood screw (#14 x 2.5 )
• 1 x Ceiling plate
• 2 x Spacer (0.25" ID x .56" OD x .26 )

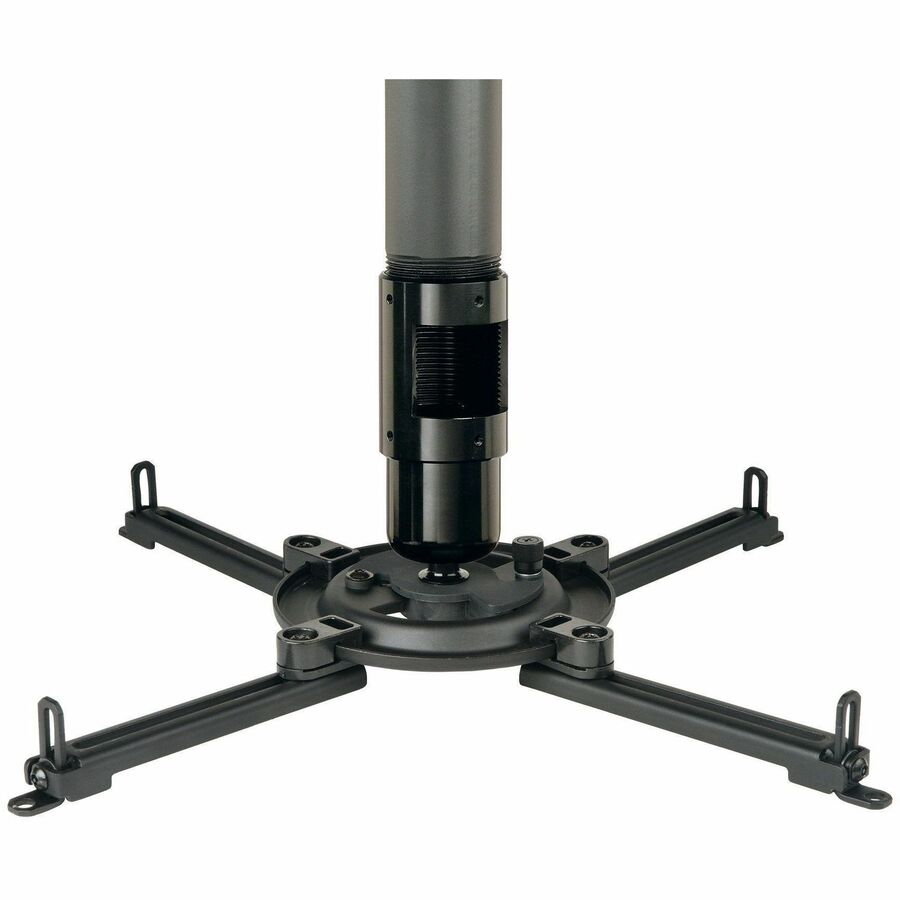

• 1 x Extension column connector with cord management
• 2 x Socket pin screw (#10-32 x 3/8")
• 3 x Slotted set screw (#10-32 x 3/16")
• 1 x Adapter plate (without connection block)
• 1 x Adapter plate (with connection block)
• 4 x Serrated washer head socket pin screw (M3 x 8 mm)
• 4 x Serrated washer head socket pin screw (M4 x 10 mm)
• 4 x Serrated washer head socket pin screw (M5 x 10 mm)
• 4 x Serrated washer head socket pin screw (M6 x 10 mm)
• 1 x Security allen wrench (2 mm)
• 1 x Security allen wrench (4 mm)
• 4 x Washer

• Roll: 30 degree (+/- 15 degree)
• Pitch: 30 degree (+/- 15 degree)
• Yaw: 360 degree
• Theft-resistant Armor Lock security for complete, integrated security from projector to ceiling
• Two thumb screws allow for easy projector removal
• Features a 1-1/2" cord access hole
• Ships fully assembled and attaches to projector adapter plate with a partial rotation and engages into place with spring loaded screw
• Can be attached to a 1-1/2" 11.5 NPT extension column, 1/2" threaded rod, or projector wall arm
• Most models offer quick and easy lamp and filter access

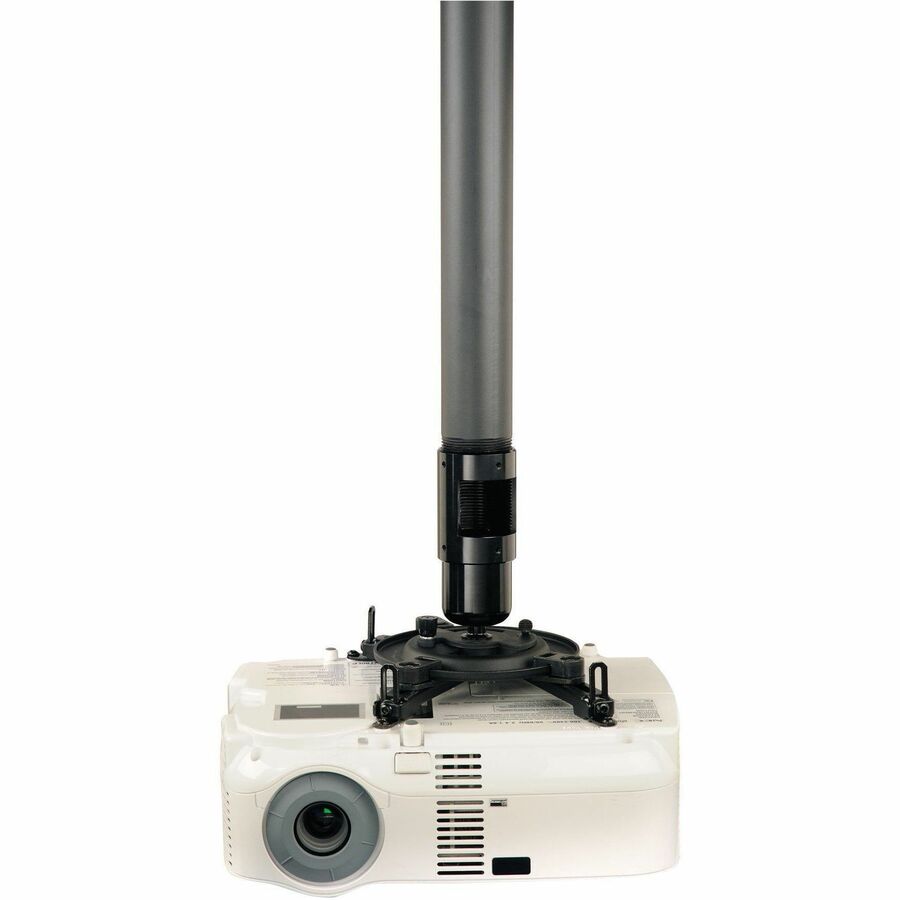

• Designed to route cords internally through an extension column
• Roll: 30 degree (+/- 15 degree)
• Pitch: 30 degree (+/- 15 degree)
• Yaw: 360 degree
• Theft-resistant Armor Lock security for complete, integrated security from projector to ceiling
• Two thumb screws allow for easy projector removal
• Features a 1-1/2" cord access hole
• Ships fully assembled and attaches to projector adapter plate with a partial rotation and engages into place with spring loaded screw
• Can be attached to a 1-1/2" 11.5 NPT extension column, 1/2" threaded rod, or projector wall arm
• Most models offer quick and easy lamp and filter access
• Designed to route cords internally through an extension column
