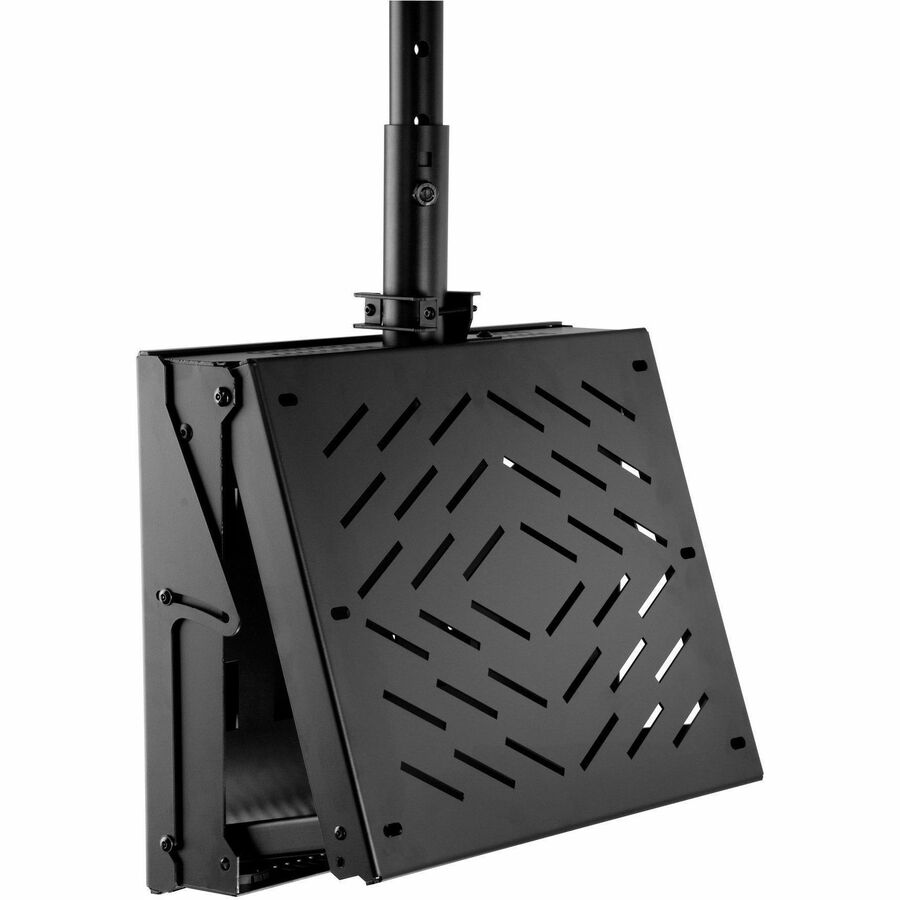

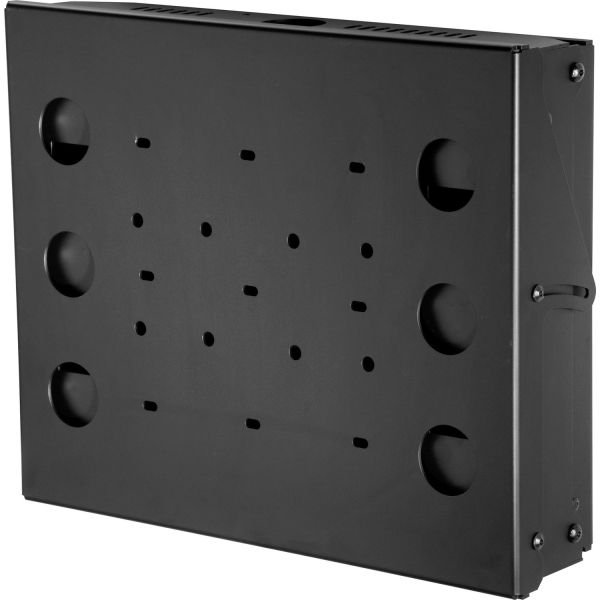

Peerless-AV DST360 Ceiling Mount for Flat Panel Display - Black

The DST360 offers a "single-box" solution to digital signage and public space flat panelinstallations. This versatile solution enables ceiling or wall mounting, providing plentyof space for a computer or media box storage. Designed for easy-assembly, this mount incorporates step-by-step installation instructions and a security option ensuring the display stays in place. Enhancing effectiveness of the mounted display, this product,when installed in a ceiling mounted application, incorporates a built-in swivel 360 degrees that positions the display at the perfect angle.

• 100 x 100
• 200 x 100
• 200 x 200

• DST360 Flat/Tilt Universal Wall or Ceiling Mount
• 1 x PC Box
• 1 x Access Plate
• 1 x Adapter Plate
• 1 x Pinch Bracket
• 1 x Yaw Lock Bracket
• 6 x M6 x 12 mm Socket Pin Serrated Washer Head Screw
• 6 x Alligator Anchor
• 6 x #14 x 2.5 Hex Phillips Wood Screw
• 1 x 4 mm Allen Wrench
• 4 x Rubber Pad
• 1 x 2" Snap Bushing
• 4 x M8 x 15mm Socket Pin Screw
• 1 x Retaining Collar
• 1 x Washer
• 1 x M5 x 10mm Type F Screw
• 2 x M5 Nylock Nut
• 2 x M5 x 55mm Socket Screw
• 6 x 1/4 - 20 x 2.5 Phillips Screw
• 6 x Toggler
• 6 x 1/4 - 20 Washer
• 4 x M4 x 12 mm Phillips Screw
• 4 x #8 Washer
• 4 x M5 x 12 mm Phillips Screw
• 4 x M6 x 12 mm phillips screw

• Computer/Media Controller Holder
• Ideal for wall or ceiling mounted applications
• Security screws prevent tampering and theft
• Universal mounting in either portrait or landscape orientation
• Works with all PLP-style VESA mounting hole adapter plates
• Clean profile design hides wiring and mount within enclosed wall plate
• Access panel opens to a full 20º for serviceability, replacement, repair or maintenance
• Mount folds open for easy access to the computer or media controller without removing the display

26" - 60" Flat-Panel Displays

VESA:

• 100 x 100mm
• 200 x 100mm
• 200 x 200mm
