Panorama Antennas Sharkee SH-IN2617 Antenna

by
PANORAMA ANTENNAS
PCN#
9BK359
MFG#
SH-IN2617
$293.23
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 7.2GHz, 1562 MHz to 1662 MHZ
  • 26 dB
  • Wireless Data Network, Cellular Network, GPS, Vehicle

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 4 lbs.
Panorama Antennas Sharkee SH-IN2617 Antenna
Tech Specs
Specifications

Manufacturer

Panorama Antennas Ltd

Manufacturer Part Number

SH-IN2617

Manufacturer Website Address

http://www.panorama-antennas.com

Brand Name

Panorama Antennas

Product Line

Sharkee

Product Model

SH-IN2617

Product Name

Sharkee SH-IN2617 Antenna

Marketing Information

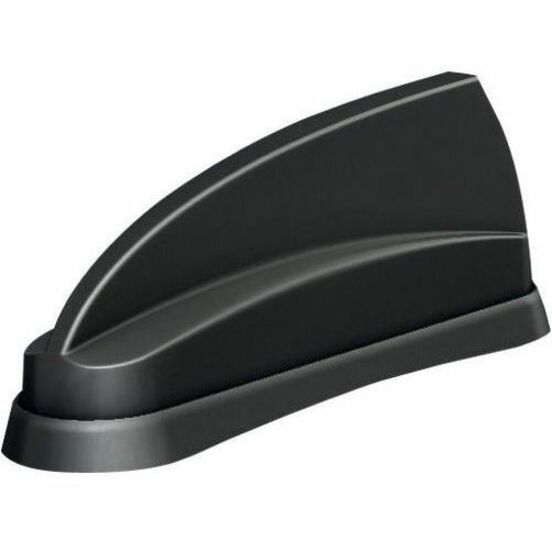

4G/5G MiMo Antenna Discrete OEM Style Sharkfin

The 'Sharkee' range has become a byword for industry leading technology in a discrete OEM sharkfin housing. The SH-IN2617 brings 5G capability to the product family.

The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.

The OEM style shark fin housing contains a 2x2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and 2x2 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

The SH-IN2617 shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the SH-IN2617 reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.

Product Type

Antenna

Package Type

OEM
Technical Information

Directivity

Omni-directional

Operating Frequency Range

  • 617 MHz to 960 MHz
  • 1710 MHz to 6000 MHz
  • 2.4 GHz
  • 4.9 GHz to 7.2GHz
  • 1562 MHz to 1662 MHZ

Antenna Gain

26 dB
Physical Characteristics

Product Color

Black

Height

3.54"

Width

2.48"

Depth

9.57"

Form Factor

Panel Mount
Miscellaneous

Application/Usage

  • Wireless Data Network
  • Cellular Network
  • GPS
  • Vehicle

Environmentally Friendly

Yes
