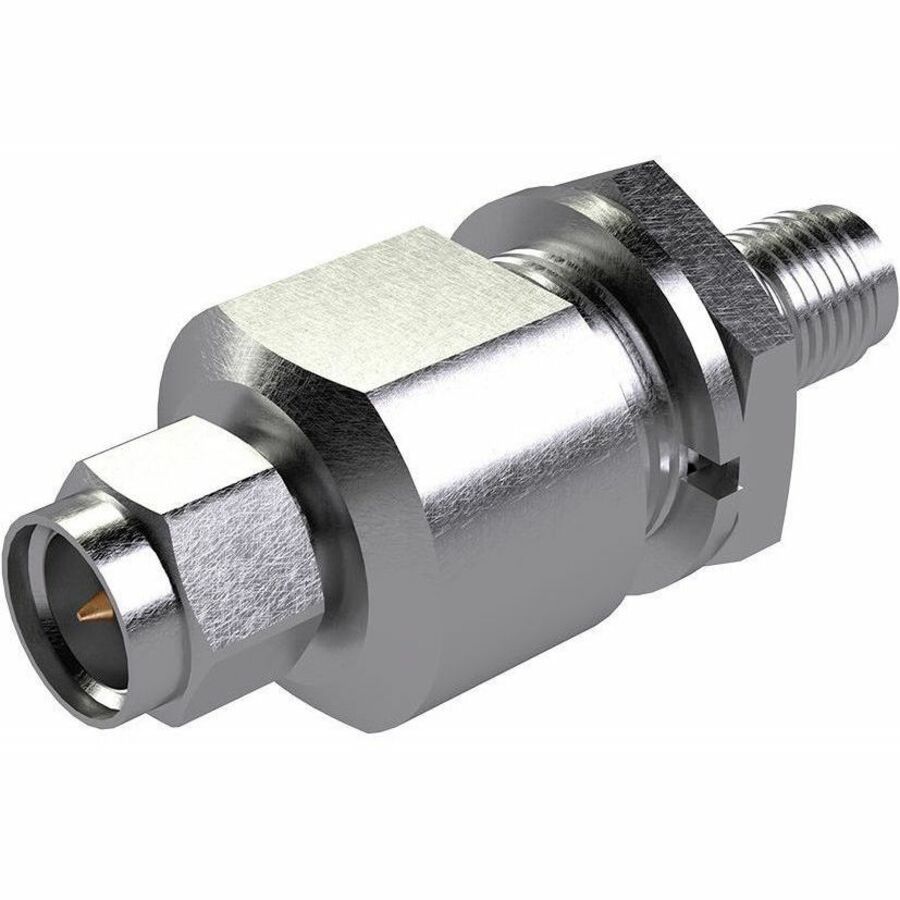

SURGE ARRESTOR MULTI STRIKE SMA M TO SMA F BULKHEAD TYPE

Name: SURGE ARRESTOR MULTI STRIKE SMA M TO SMA F BULKHEAD TYPE
Brand: PANORAMA ANTENNAS
SKU: 8KA048
Price: 162.65 USD
Availability: InStock

PANORAMA ANTENNAS

PCN#

8KA048

MFG#

SAMS-SP-SMABJ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$162.65

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

SMA
SMA
25 VA
Antenna, Coaxial, Router

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Panorama lightning arrester

Overview

Tech Specs

Specifications

Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	SAMS-SP-SMABJ
Manufacturer Website Address	http://www.panorama-antennas.com
Brand Name	Panorama Antennas
Product Name	PANORAMA SURGE ARRESTOR MULTI STRIKE
Marketing Information	This multi strike surge arrester offers a flexible light duty surge protection solution using SMA connectors allowing it to be mounted in line between antennas and feeder cables or coaxial cables and radio / router devices. The surge arrester can operate between 0-6GHz with low return and insertion loss. The surge arrester is fitted with a bulkhead feature which can be used to mount and earth the device to conductive earth bars / panels of max 6.5mm (0.25") thickness, alternatively this feature can accept a heavy duty earth tag.
Product Type	Surge Protector Module

Technical Information

Plug/Connector Type	SMA
Receptacles	SMA
Dataline Protection	Antenna Coaxial Router

Power Description

Power Handling	25 VA
Clamp Voltage	150 V

Physical Characteristics

Product Material	Brass
Height	1.4"
Width	0.6"
