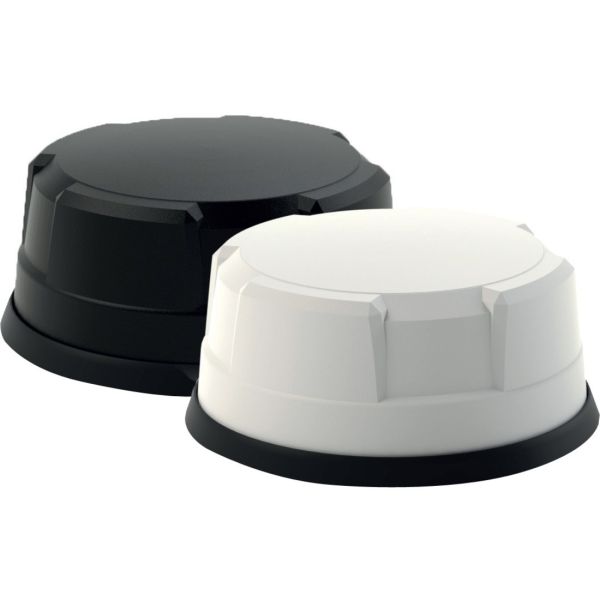

Panorama Antennas LG-IN2607 Antenna

The LG-IN2607 is a high performance 4x4 MiMo LTE, 2x2 MiMo Dual Band WiFi + 1x Bluetooth function and GPS/GNSS active antenna covering 617-960/1710-6000MHz.

• Low profile antenna with 8 functions in 1
• 4x4 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi + 1x Bluetooth function, GPS/GNSS in one housing
• Kits with extension cables available for a range of LTE routers
• Suitable for Cradlepoint R1900 Series Routers

The LG-IN2607 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz + Bluetooth function in a compact low profile housing.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.

The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

LG-IN2607 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.

• 617 MHz to 960 MHz
• 1710 MHz to 6000 MHz
• 2.4 GHz
• 4.9 GHz to 6GHz
• 1562 MHz to 1662 MHZ

• Wireless Data Network
• Cellular Network
• GPS
• Wireless Router

Cradlepoint R1900 Series Routers
