LGMTMB-6-60-24-58 KIT WHITE LGMTMB-6-60-24-58 FITTED CABLES KIT

Name: LGMTMB-6-60-24-58 KIT WHITE LGMTMB-6-60-24-58 FITTED CABLES KIT
Brand: PANORAMA ANTENNAS
SKU: 13GP50
Price: 359.76 USD
Availability: InStock

PANORAMA ANTENNAS

PCN#

13GP50

MFG#

LG-IN2532-W

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$359.76

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz
26 dB
10 dBi
Vehicle, Cellular Network, GLONASS, GPS, In
vehicle Router
White
Panel, Magnetic Mount
Omni
directional
SMA, RP
SMA, FME Connector

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

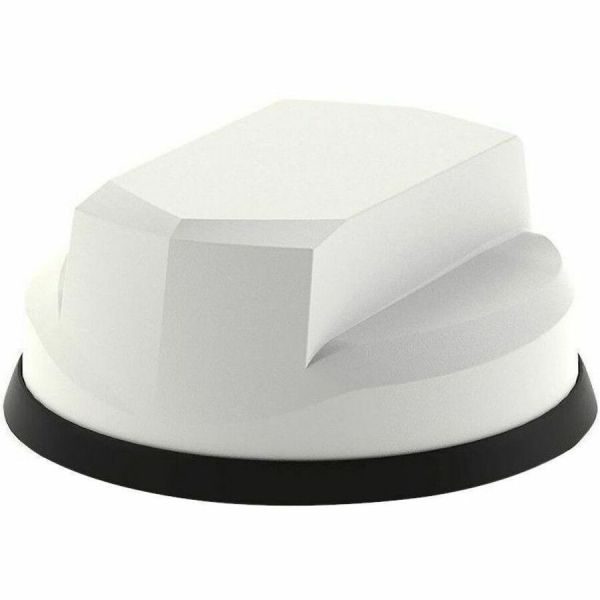

Panorama Antennas Great White L[G]M[H]M-6-60 Antenna

Overview

Tech Specs

Specifications

Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	LGIN2532W
Manufacturer Website Address	http://www.panorama-antennas.com
Brand Name	Panorama Antennas
Product Line	Great White
Product Series	L[G]M[H]M-6-60
Product Name	Great White L[G]M[H]M-6-60 Antenna
Marketing Information	The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
Product Type	Antenna

Technical Information

Directivity	Omni-directional
Operating Frequency Range	617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 6000 MHz
Antenna Gain	26 dB
Antenna Gain (Isotropic)	10 dBi

Interfaces/Ports

Connector Type

SMA
RP-SMA
FME

Physical Characteristics

Color Family	White
Product Color	White
Height	2.95"
Diameter	7.09"
Form Factor	Panel Magnetic Mount

Miscellaneous

Application/Usage

Vehicle
Cellular Network
GLONASS
GPS
In-vehicle Router
