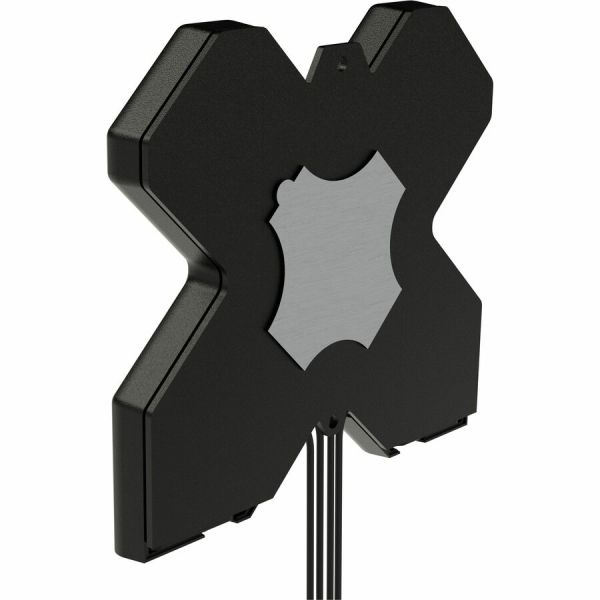

Panorama Antennas DMM4-6-60 Antenna

Name: Panorama Antennas DMM4-6-60 Antenna
Brand: PANORAMA ANTENNAS
SKU: 13JB38
Price: 97.1 USD
Availability: InStock

PANORAMA ANTENNAS

PCN#

13JB38

MFG#

DMM4-6-60-2SP

$97.10

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

Panorama Antennas DMM4-6-60 Antenna

Tech Specs

Specifications

Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	DMM46602SP
Manufacturer Website Address	http://www.panorama-antennas.com
Brand Name	Panorama Antennas
Product Series	DMM4-6-60
Product Name	DMM4-6-60 Antenna
Marketing Information	The DMM4 portable antenna is an innovative antenna design which provides 4×4 MiMo function for 4G/5G with fallback to 3G/2G. The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4×4 MiMo function. It can also provide 2x 2×2 MiMo function for a router with dual modems, each requiring a 2×2 antenna system. The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with two twinned 2m (6') length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors. The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
Product Type	Antenna

Technical Information

Directivity	Omni-directional
Operating Frequency Range	617MHz - 960MHz 1427MHz - 2700MHz 1710MHz - 2700MHz 2700MHz - 6000MHz
Antenna Gain (Isotropic)	5 dBi
Voltage Standing Wave Ratio (VSWR)	<2.5:1

Interfaces/Ports

Connector Type

SMA

Physical Characteristics

Product Color	Black
Height	7.28"
Width	7.24"
Form Factor	Desktop/Wall/Window/Adhesive Screw Mount Portable Hook/Loop/Adhesive

Miscellaneous

Application/Usage	Cellular Network
Package Contents	DMM4-6-60 Antenna 2 x Twinned 2m (6') Length Coaxial Cables
