G6 MSPOPDU 20A/16A IP44-3M TF B LK PK1

by
PANDUIT
PCN#
NN1859
MFG#
P48G33G

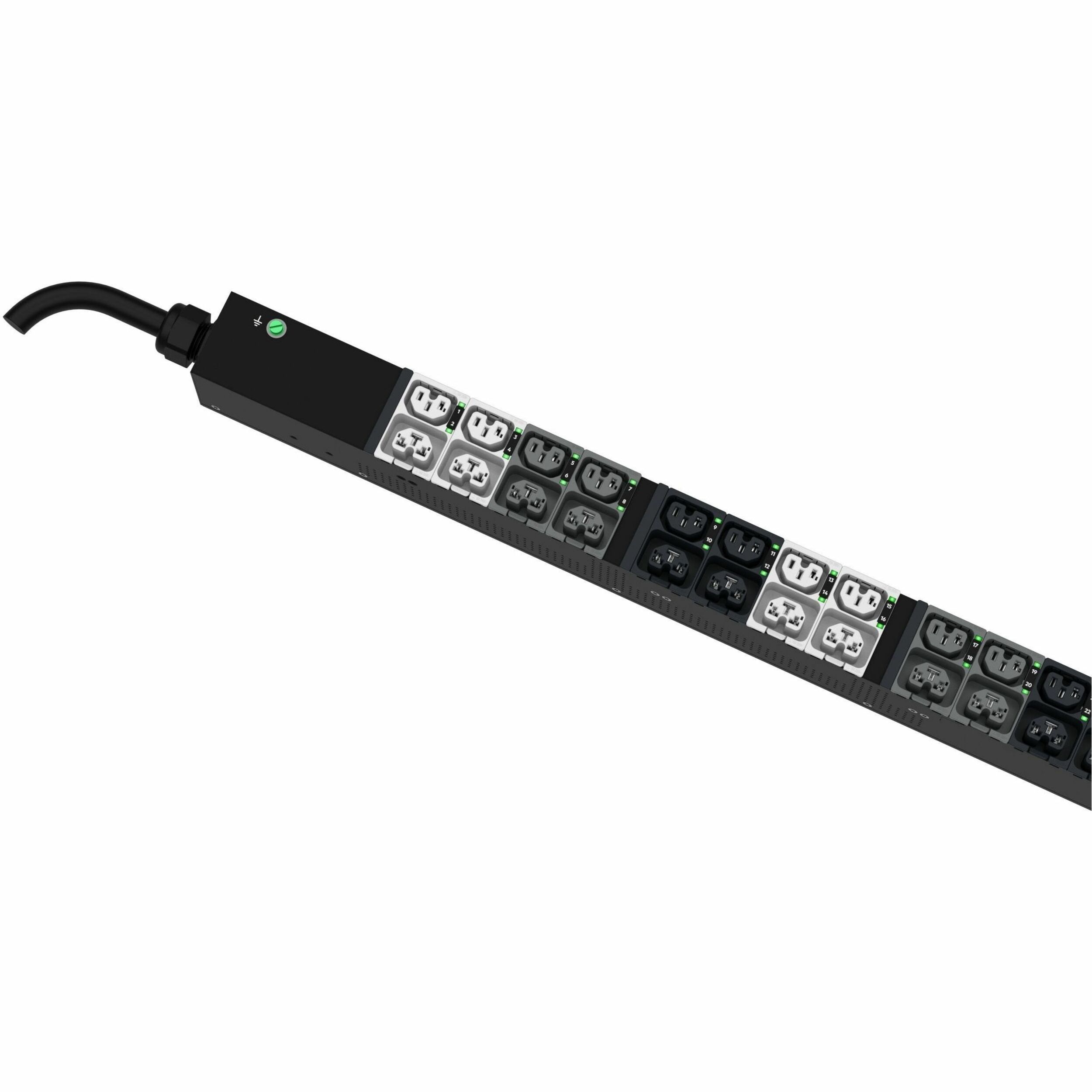

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
PANDUIT Authorized Dealer
$4,667.83
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored, Switched
  • IEC 60309 3P+N+E 6h 20A/16A (IP44)
  • 24 x IEC 60320 C13/C15, 24 x IEC 60320 C13/C15/C19/C21

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 15 lbs.
Panduit G6 MSPO PDU, 20A/16A, (24)C13/C15, (24)C13/15/C19/C21, IEC 60309 3P+N+E 6h
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

P48G33G

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Series

G6

Product Name

G6 MSPO PDU, 20A/16A, (24)C13/C15, (24)C13/15/C19/C21, IEC 60309 3P+N+E 6h

Packaged Quantity

1 Piece

Product Type

PDU
Technical Information

PDU Type

  • Monitored
  • Switched

Phase

Three Phase

Plug/Connector Type

IEC 60309 3P+N+E 6h 20A/16A (IP44)

Receptacle Type

IEC 60320 C13/C15/C19/C21

Receptacle Detail

  • 24 x IEC 60320 C13/C15
  • 24 x IEC 60320 C13/C15/C19/C21
Power Description

Input Voltage

415 V

Output Voltage

240 V AC

Input Current

20 A
Interfaces/Ports

Network (RJ-45)

Yes

USB

Yes
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Vertical

Height

59"

Width

2.2"

Depth

3"
Environmental Conditions

Minimum Operating Temperature

50°F (10°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

24.8°F (-4°C)

Maximum Storage Temperature

284°F (140°C)
Miscellaneous

Package Contents

  • G6 MSPO PDU, 20A/16A, (24)C13/C15, (24)C13/15/C19/C21, IEC 60309 3P+N+E 6h
  • Mounting Hardware

    • Additional Information

  • Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device
  • Cascade up to 32 PDUs

    • Certifications & Standards

  • UL 62368-1
  • IEC 62368-1 (EMEA)
  • FCC Pat 15 Class A (USA)
  • RETIE (Colombia)

    • Country of Origin

    		India

    Environmentally Friendly

    		Yes

    Environmental Compliance

    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
