G6 MIPDU 30A L15 TF BLK PK 1 .

by
PANDUIT
PCN#
NN1839
MFG#
P48D22G

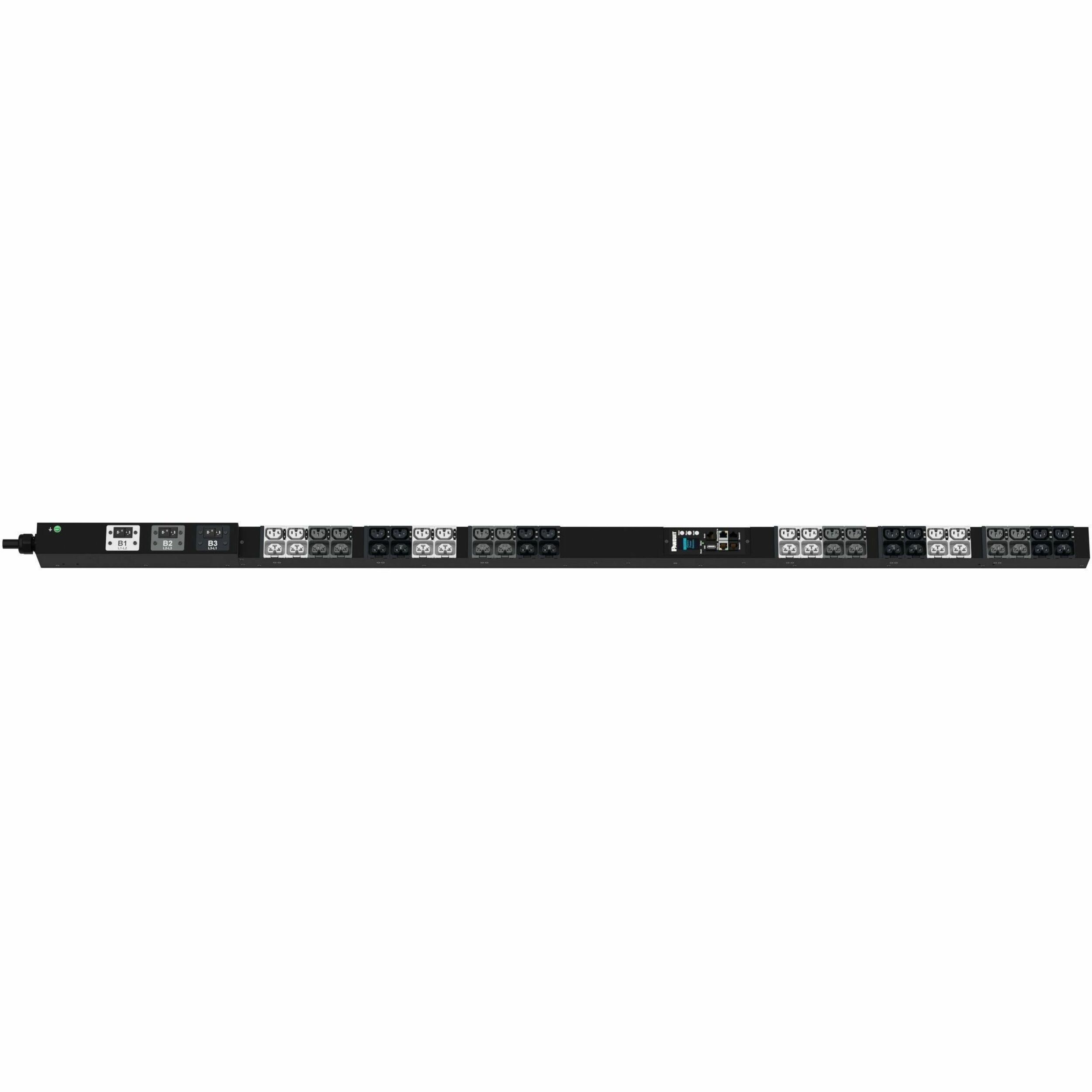

main product photo
fotorama-image
PANDUIT Authorized Dealer
$2,228.78
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored, Switched
  • NEMA L15
  • 30P

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration
Shipping Weight: 16 lbs.
Panduit G6 MI PDU, 30A, (24)C13/C15, (24)C13/15/C19/C21, L15-30P
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

P48D22G

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Series

G6

Product Name

G6 MI PDU, 30A, (24)C13/C15, (24)C13/15/C19/C21, L15-30P

Marketing Information

The Panduit G6 Monitored Input PDU features (24)C13/C15, (24)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 30 amp 208V three phase PDU with an L15-30P input plug and a 10 foot (3m) power cord. The PDU is black.

Product Type

PDU
Technical Information

PDU Type

  • Monitored
  • Switched

Phase

Three Phase

Plug/Connector Type

NEMA L15-30P

Receptacle Type

  • IEC 60320 C13/C15
  • IEC 60320 C13/C15/C19/C21

Receptacle Detail

  • 24 x IEC 60320 C13/C15
  • 24 x IEC 60320 C13/C15/C19/C21

Load Capacity (VA)

8600 W
Power Description

Input Voltage

208 V AC

Output Voltage

230 V AC

Output Voltage Range

120 V AC - 240 V AC

Input Current

30 A

Input Frequency

60 Hz

Circuit Breaker

Yes

Number of Circuit Breakers

3
Physical Characteristics

Color Family

Black

Product Color

Black

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Form Factor

  • Rack
  • Full

Rack Height

0U

Cord Length

10 ft

Height

70"

Width

2.2"

Depth

3"
Environmental Conditions

Minimum Operating Temperature

50°F (10°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

-4°F (-20°C)

Maximum Storage Temperature

140°F (60°C)
Miscellaneous

Application/Usage

  • IT Equipment
  • Server Rack/Cabinet
  • Data Center

Certifications & Standards

UL Listed File number: E218078

Country of Origin

India

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

UL Listed

Yes
Warranty

Limited Warranty

5 Year

Additional Warranty Information

Three-year default warranty plus two free years upon online registration
