G6 MIPDU 63A/60A IP44-3M TF BLK PK1

by
PANDUIT
PCN#
NN1857
MFG#
P42D21G

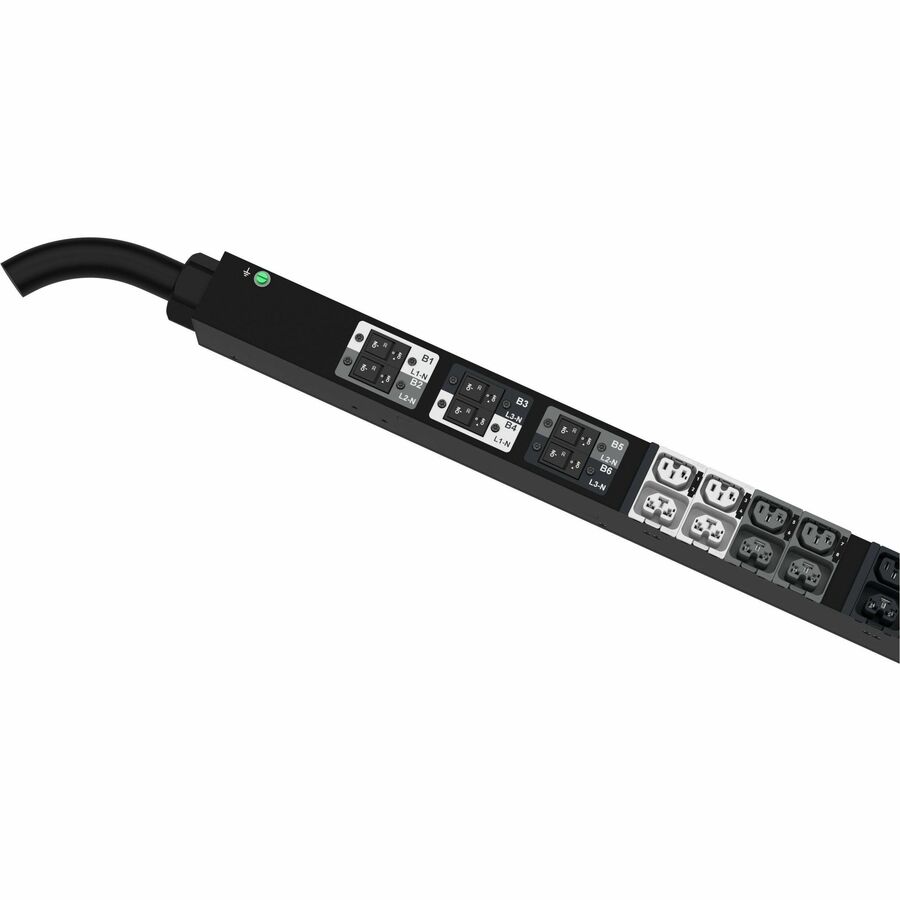

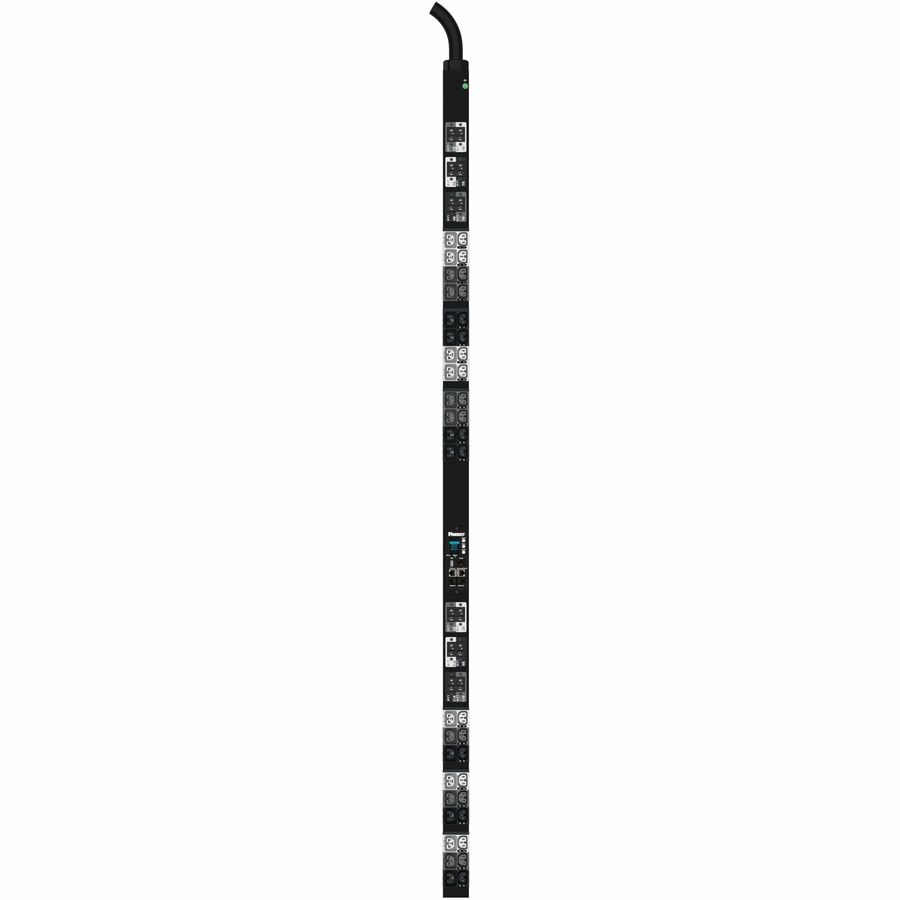

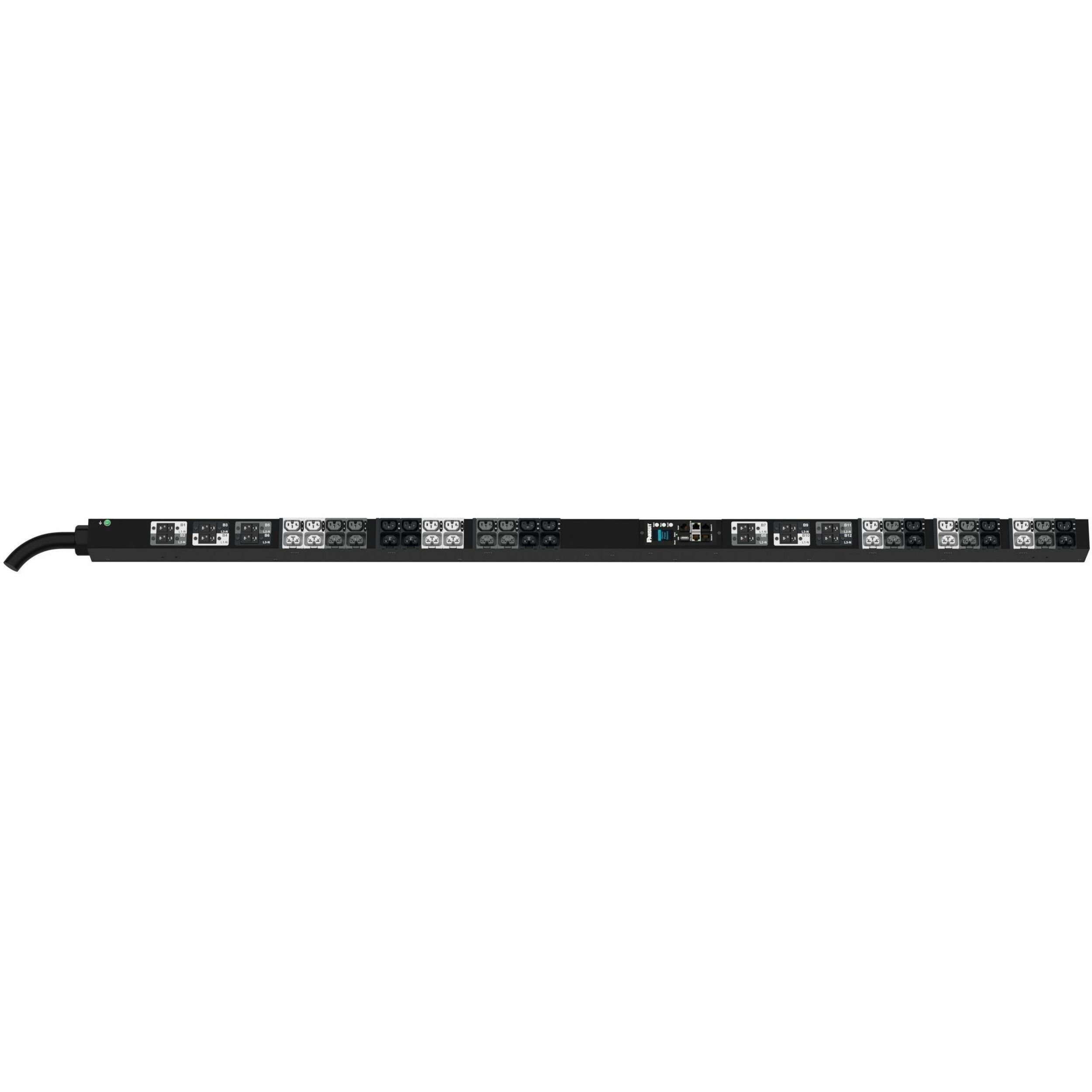

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
PANDUIT Authorized Dealer
$2,985.49
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored
  • IEC 60309 3P+N+E 6h 60/63A (IP44)
  • 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 32 lbs.
Panduit G6 MI PDU, 63A/60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+N+E 6h
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

P42D21G

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Series

G6

Product Name

G6 MI PDU, 63A/60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+N+E 6h

Packaged Quantity

1 Piece

Product Type

PDU
Technical Information

PDU Type

Monitored

Phase

Three Phase

Plug/Connector Type

IEC 60309 3P+N+E 6h 60/63A (IP44)

Receptacle Type

IEC 60320 C13/C15/C19/C21

Receptacle Detail

  • 21 x IEC 60320 C13/C15/C19/C21
  • 21 x IEC 60320 C13/C15

Features

SNMP Compatible
Power Description

Input Voltage

415 V

Output Voltage

240 V AC

Power Rating (VA)

34.50 kVA

Input Current

63 A

Input Frequency

50 Hz

Circuit Breaker

Yes

Number of Circuit Breakers

12

Voltage Measurement Accuracy

±1%

Current Measurement Accuracy

±1%
Interfaces/Ports

Network (RJ-45)

Yes

USB

Yes

Network Monitoring Port Detail

Gigabit network port reduces labor by auto negotiating with data center level network switches
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Vertical

Cord Length

10 ft

Height

70"

Width

2.2"

Depth

3"
Environmental Conditions

Minimum Operating Temperature

50°F (10°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

24.8°F (-4°C)

Maximum Storage Temperature

284°F (140°C)
Miscellaneous

Package Contents

  • G6 MI PDU, 63A/60A, (21)C13/C15, (21)C13/C15/C19/C21, IEC 60309 3P+N+E 6h
  • Mounting Hardware

    • Additional Information

  • Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device
  • Cascade up to 32 PDUs

    • Certifications & Standards

  • UL 62368-1
  • IEC 62368-1 (EMEA)
  • FCC Pat 15 Class A (USA)
  • NOM (Mexico)

    • Country of Origin

    		India

    Environmentally Friendly

    		Yes

    Environmental Compliance

    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    		3 Year
