G6 MPOPDU 30AMP TF BLK PK1 .

Name: G6 MPOPDU 30AMP TF BLK PK1 .
Brand: PANDUIT
SKU: NN1863
Price: 2913.47 USD
Availability: InStock

PANDUIT

PCN#

NN1863

MFG#

P36F15G

$2,913.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty InformationThree-year default warranty plus two free years upon online registration

Shipping Weight: 22 lbs.

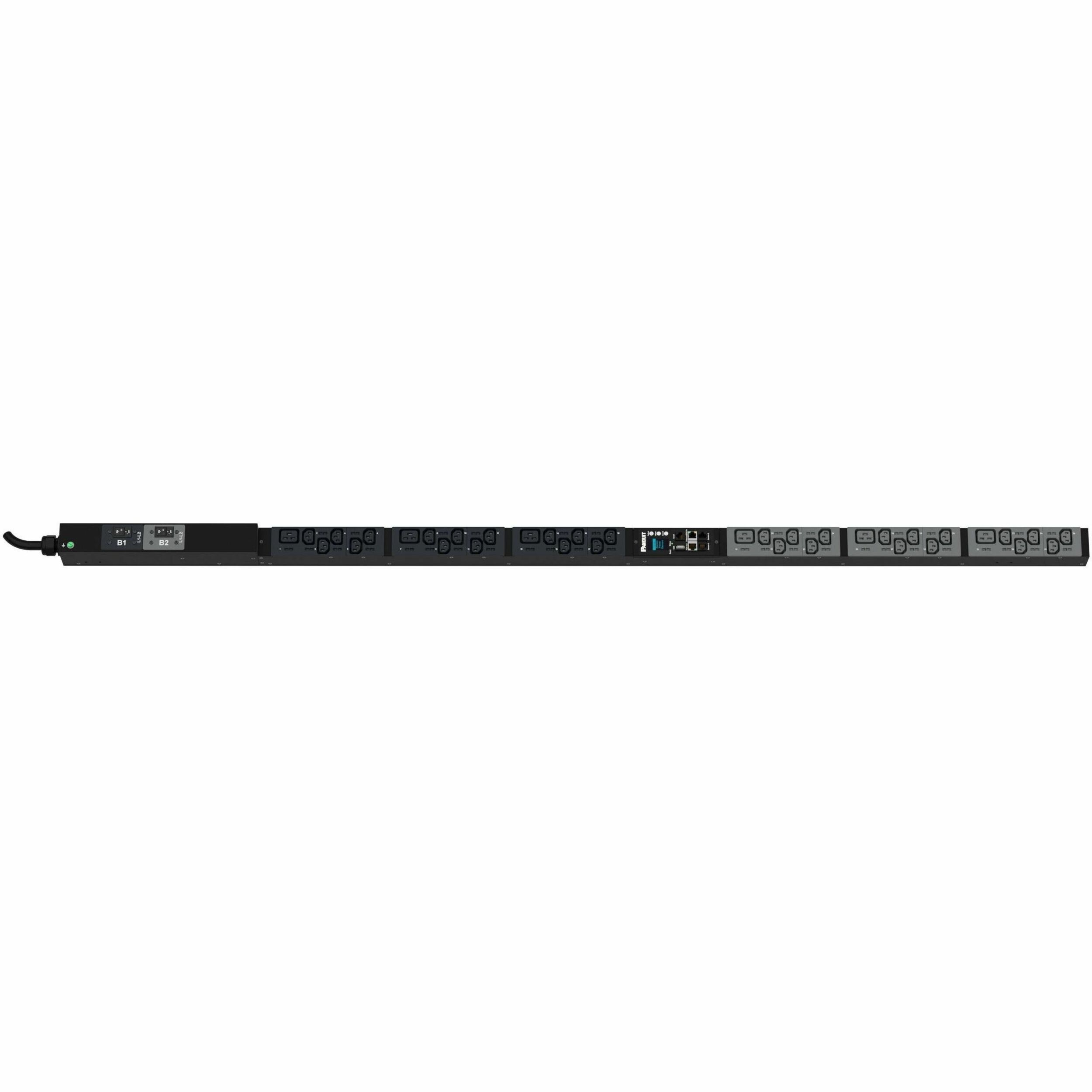

Panduit G6 MPO PDU, 30AMP, (30)C13, (6)C19, NEMA L6-30P

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	P36F15G
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Series	G6
Product Name	G6 MPO PDU, 30AMP, (30)C13, (6)C19, NEMA L6-30P
Marketing Information	The Panduit G6 Monitored Per Outlet PDU features (30) C13 and (6) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.
Packaged Quantity	1 Piece
Product Type	PDU

Technical Information

Power Description

Input Voltage	230 V AC 120 V AC 208 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage Range	120 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes
Number of Circuit Breakers	2
Voltage Measurement Accuracy	±1%
Power Measurement Accuracy	±1%
Current Measurement Accuracy	±1%

Management

SNMP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	G6 MPO PDU, 30AMP, (30)C13, (6)C19, NEMA L6-30P 1 x Mounting Hardware Kit
Application/Usage	IT Equipment Server Rack/Cabinet Data Center
Certifications & Standards	RETIE (Colombia) UL 62368-1 FCC Pat 15 Class A (USA) NOM (Mexico)
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
UL Listed	Yes

Warranty

Limited Warranty	5 Year
Additional Warranty Information	Three-year default warranty plus two free years upon online registration
