G6 MSPOPDU 30AMP NEMA L21 TF BL K PK1

by
PANDUIT
PCN#
NN1882
MFG#
P24G03G

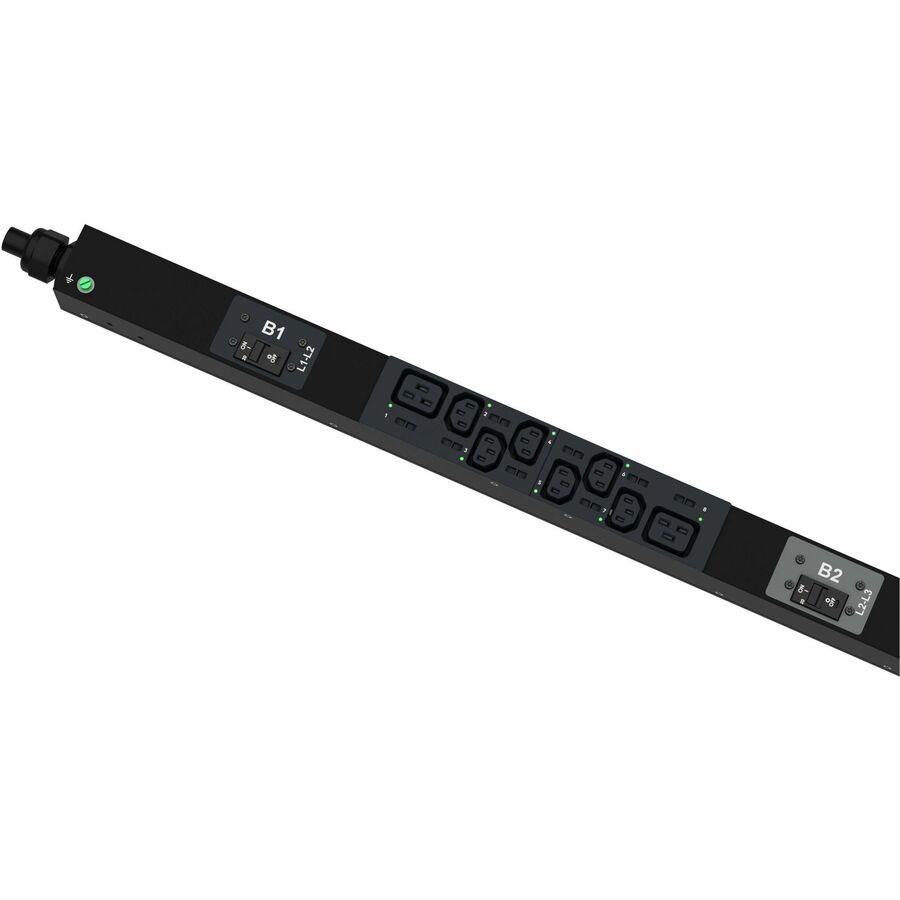

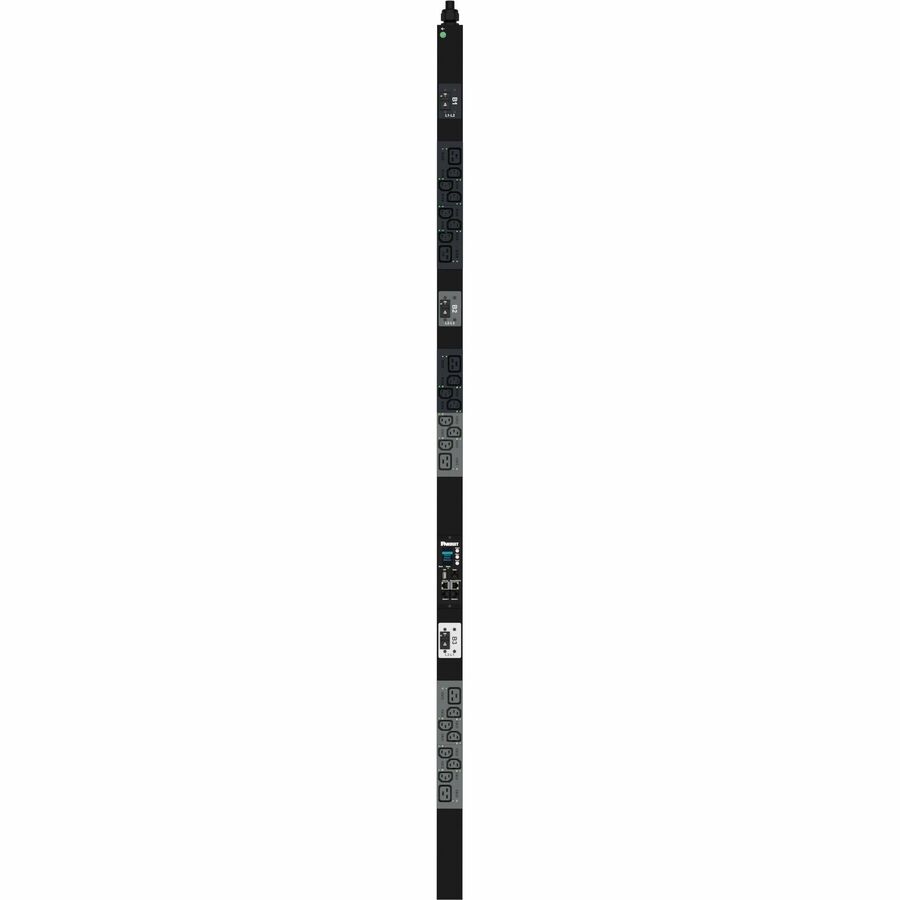

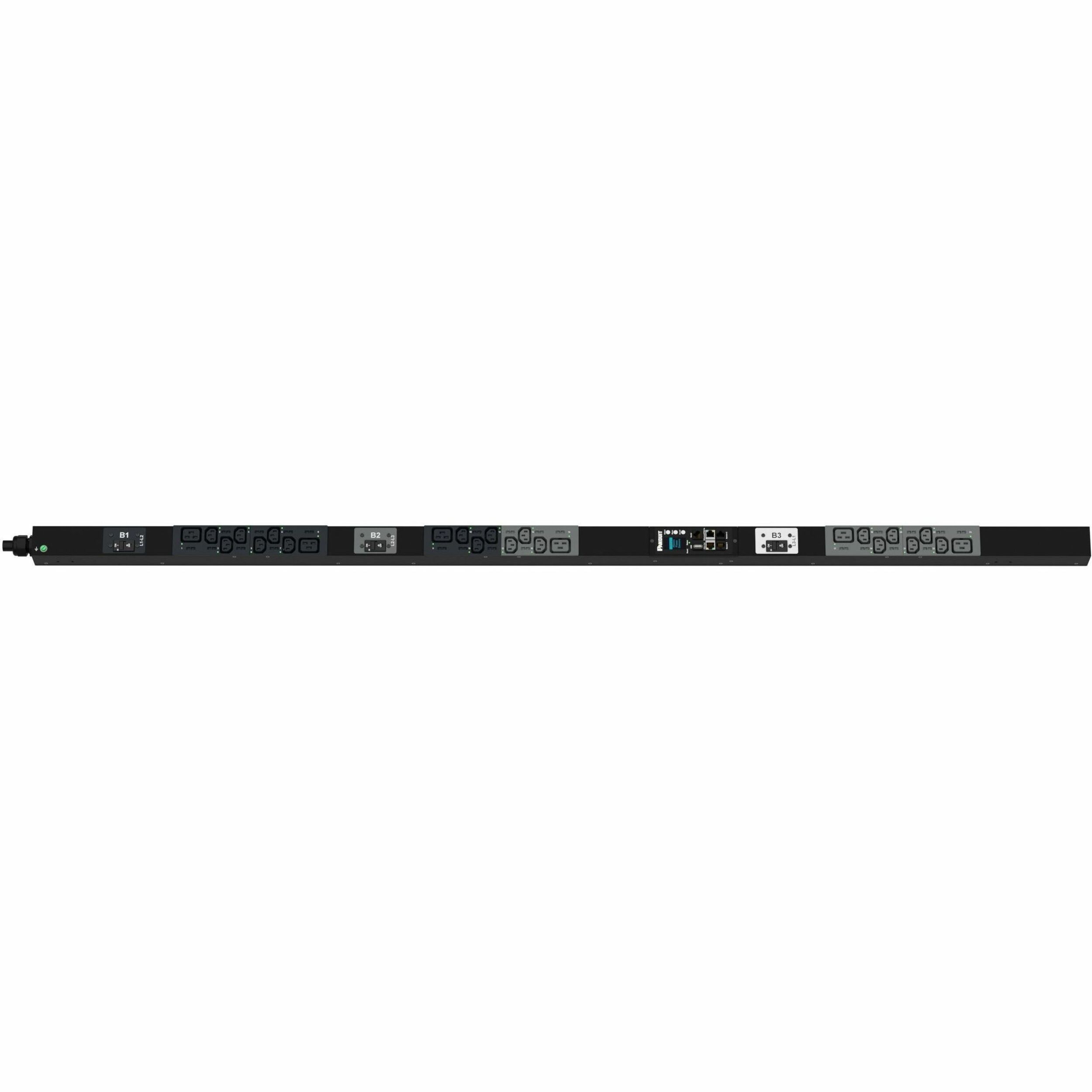

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
PANDUIT Authorized Dealer
$2,967.69
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored, Switched
  • NEMA L21
  • 30P

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 21 lbs.
Panduit G6 MSPO PDU, 30AMP, (18)C13, (6)C19, NEMA L21-30P
Overview
Tech Specs
Specifications

Manufacturer

PANDUIT CORP

Manufacturer Part Number

P24G03G

Manufacturer Website Address

http://www.panduit.com

Brand Name

Panduit

Product Series

G6

Product Name

G6 MSPO PDU, 30AMP, (18)C13, (6)C19, NEMA L21-30P

Packaged Quantity

1 Piece

Product Type

PDU
Technical Information

PDU Type

  • Monitored
  • Switched

Phase

Three Phase

Plug/Connector Type

NEMA L21-30P

Receptacle Type

IEC 60320 C13/C19

Receptacle Detail

  • 18 x IEC 60320 C13
  • 6 x IEC 60320 C19

Features

  • SNMP Compatible
  • LED Status Indicator
Power Description

Input Voltage

208 V

Output Voltage

208 V AC

Power Rating (VA)

8600 VA

Input Current

30 A

Input Frequency

50 Hz

Circuit Breaker

Yes

Number of Circuit Breakers

3

Voltage Measurement Accuracy

±1%

Current Measurement Accuracy

±1%
Interfaces/Ports

Network (RJ-45)

Yes

USB

Yes

Network Monitoring Port Detail

Gigabit network port reduces labor by auto negotiating with data center level network switches
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Vertical

Cord Length

10 ft

Height

69"

Width

2"

Depth

2.1"
Environmental Conditions

Minimum Operating Temperature

50°F (10°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

24.8°F (-4°C)

Maximum Storage Temperature

284°F (140°C)
Miscellaneous

Package Contents

  • G6 MSPO PDU, 30AMP, (18)C13, (6)C19, NEMA L21-30P
  • Mounting Hardware

    • Additional Information

  • Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device
  • Cascade up to 32 PDUs

    • Certifications & Standards

  • UL 62368-1
  • FCC Pat 15 Class A (USA)
  • NOM (Mexico)
  • RETIE (Colombia)

    • Country of Origin

    		India

    Environmentally Friendly

    		Yes

    Environmental Compliance

    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    		3 Year
