8 SERIAL STRAIGHT PINOUT2GBE ETH LTE CELLULARDUAL SIMGLOBAL

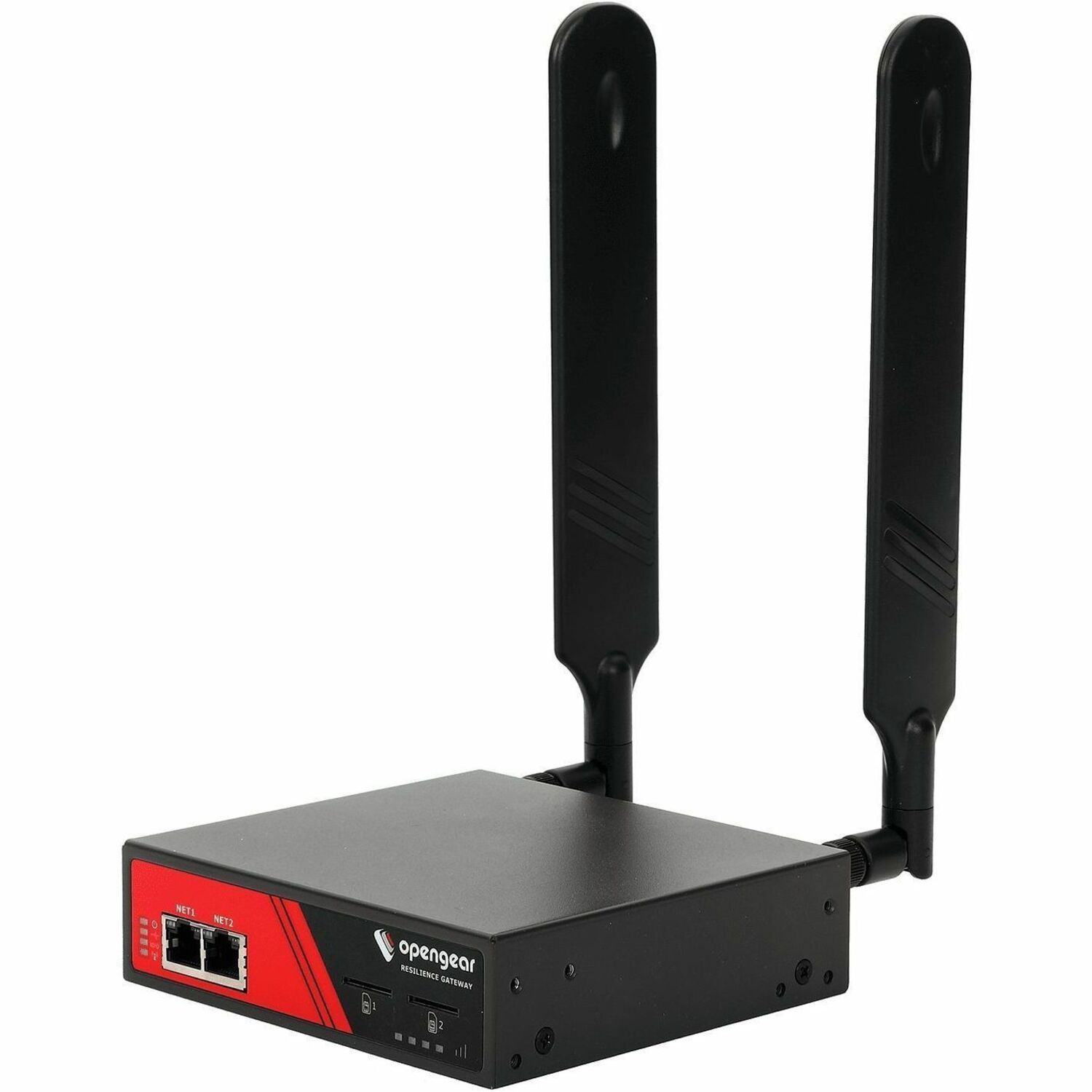

For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable.

Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem.

Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.

• Appliance now ships with one C14 power cable standard

• HTTPS
• LLDP

• 120 V AC
• 230 V AC
• 12 V DC

• 4 serial Cisco Straight pinout, ext power, 2 GbE Ethernet, LTE cellular, dual SIM, 2 DIO and 2 output ports, Global Power Supply

Models & Connectors:

• All serial ports are RJ45 RS-232 (50 to 230,400bps, Cisco pinout)
• 2 x RJ45 10/100/1000 Ethernet ports, primary and failover
• 4 x USB 2.0 console port
• 2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)
• 2 x High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)
• 4 x RS-232 serial ports

Environmental:

• Humidity: 5% to 90%
• Ambient operating temperature: -25°C to 60°C (-13°F to 140°F)
• Non-operating storage temp: -40°C to 75°C (-40°F to 167°F)

Memory & CPU:

• 800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
• 256MB DDR3 SDRAM, 32MB Embedded Flash and 4GB Internal NAND Flash

Operating System:

Linux with source code access and Custom Development Kit (CDK)

Security & Authentication:

IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP

Gateway Router:

Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists

Remote Management

HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response, RESTful APIs

Cellular Specifications for ACM7000-L:

• SIM Slot: Dual Push Click 2FF SIM slots
• Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
• Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
• Air Interface: LTE-A Pro (LTE-LAA), HSPA+
