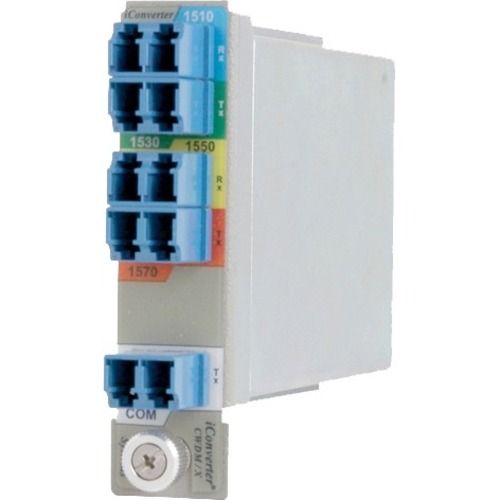

iConverter 4-Ch SF CWDM Mux/Demux

by
OMNITRON SYSTEMS
PCN#
GV2671
MFG#
8876-0
$1,551.41
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • iConverter 4
  • Channel (Ch1 1470/1490
  • Ch2 1510/1530

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 1 lbs.
iConverter 4-Ch SF CWDM Mux/Demux
Tech Specs
Specifications

Manufacturer

Omnitron Systems

Manufacturer Part Number

8876-0

Manufacturer Website Address

http://www.omnitron-systems.com

Brand Name

Omnitron Systems

Product Line

iConverter

Product Series

MUX/DEMUX

Product Model

8876-x

Product Name

iConverter MUX/DEMUX 8876-x Data Multiplexer/Demultiplexer

Marketing Information

iConverter Single-Fiber Course Wave Division Multiplexing (CWDM) modules provide a flexible and cost effective solution for increasing fiber capacity over single fiber networks. CWDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carry independent services over existing fiber infrastructure. Up to eight separate data channels can be transported on a singlefiber link with iConverter Single-Fiber CWDM modules.

Product Type

Data Multiplexer/Demultiplexer
Interfaces/Ports

Number of LC Ports

1

LC Port Type

Simplex

Number of Data Channels

4
Media & Performance

Connectivity Technology

Wired

Media Type Supported

Optical Fiber

Ethernet Technology

10 Gigabit Ethernet

Maximum Data Transfer Rate

10 Gbit/s

Fiber Mode Supported

Single-mode

Fiber Optic Wavelength

  • 1470 nm
  • 1490 nm
  • 1510 nm
  • 1530 nm
  • 1550 nm
  • 1570 nm
  • 1590 nm
  • 1610 nm
Physical Characteristics

Form Factor

Plug-in Module

Rack Height

2U

Height

2.8"

Width

0.9"

Depth

4.5"

Weight (Approximate)

1.19 lb
Miscellaneous

Package Contents

  • iConverter 4-Channel (1470/1490 - 1510/1530 - 1550/1570 - 1590/1610) Single-Fiber CWDM Mux/Demux
  • User Manual

Environmentally Friendly

Yes

Country of Origin

United States
Warranty

Limited Warranty

1 Year
