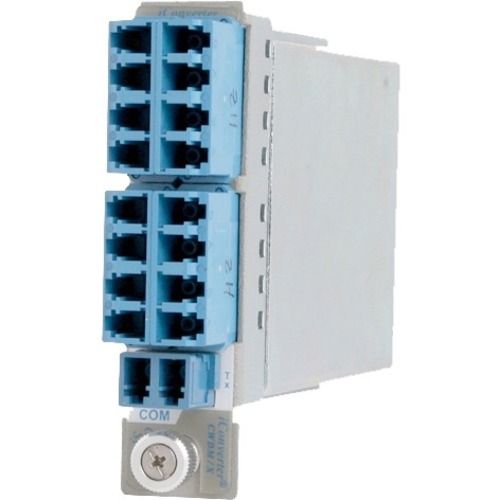

iConverter CWDM 8-Ch (1470 to 1610) DF Mux/Demux

Name: iConverter CWDM 8-Ch (1470 to 1610) DF Mux/Demux
Brand: OMNITRON SYSTEMS
SKU: UK3620
Price: 2519.01 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

UK3620

MFG#

8863-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,519.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 CWDM Channels 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

iConverter CWDM 8-Ch (1470 to 1610) DF Mux/Demux

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8863-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	MUX/DEMUX
Product Model	8863-x
Product Name	iConverter CWDM 8-Channel (1470 to1610) DF Mux/Demux
Marketing Information	Omnitron System's iConverter 8863-0 is an 8-Channel CWDM Multiplexer and Demultiplexer plug-in module that supports ITU-T G.694.2 Wavelengths between 1470 and 1610 in 20nm increments. The iConverter 8-Channel CWDM MUX is designed to multiplex up to 8 wavelengths over single-mode fiber and occupies a single slot in an iConverter Chassis. Omnitron System's CWDM/X modules are protocol and rate transparent allowing different services of up to 10Gbps per wavelength in point-to-point or protected ring topologies. They provide ideal solution to expand the capacity of existing fiber infrastructure, or consolidate multiple fiber strands in enterprise, data center interconnectivity, government/military, and Service provider's transport and access networks. - Compact form factor yields one of the highest port densities in the industry with up to 120 ports in a 2U chassis - Scalable to 8 or 16 channels using an optional Expansion Port or separate Band Splitter - Optional 1310 Pass Band Port enables existing 1310nm networks to carry up to an additional 8 CWDM channels - Protocol transparent to combine individual wavelengths for services ranging from Ethernet, EPON, RFoG, Fibre Channel, TDM and other protocols - Minimal and uniform optical loss facilitates predictable network planning and efficient use of optical power budget. - Seamless integration with other iConverter media converters and chassis for multi-service platforms - Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges - One (1) Year Warranty and Free 24/7 Technical Support Multiple multiplexers can be cascaded to combine 8, 12 or 16 wavelengths.
Product Type	Data Multiplexer/Demultiplexer

Interfaces/Ports

Management Port	No
Number of LC Ports	9
LC Port Type	Duplex
Number of Data Channels	8

Media & Performance

Connectivity Technology	Wired
Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet
Maximum Data Transfer Rate	10 Gbit/s
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1470 nm 1490 nm 1510 nm 1530 nm 1550 nm 1570 nm 1590 nm 1610 nm

Physical Characteristics

Form Factor	Plug-in Module
Rack Height	2U
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	12 oz

Miscellaneous

Package Contents	iConverter CWDM 8-Channel (1470 to1610) DF Mux/Demux User Manual
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

1 Year
