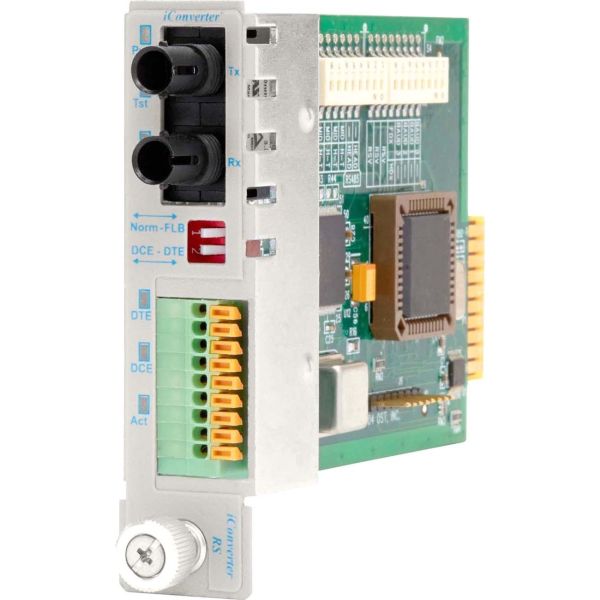

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module

Name: iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module
Brand: OMNITRON SYSTEMS
SKU: E81593
Price: 707.17 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

E81593

MFG#

8781-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$707.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x RS
422/485; 1 x ST Single
Mode; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8781-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Model	8781-1-x
Product Name	iConverter RS422/485 DB-9 ST Single-Mode 30km Plug-In Module
Marketing Information	The Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km, and is immune from electrical and magnetic interference. The RS422/485 is available with a single-mode, multimode or single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring. The RS422/485 automatically detects the signal baud rate of connected Full-Duplex serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's Full-Duplex baud rate during operation without reconfiguration or interruption of service. Half-Duplex RS-485 and Full-Duplex RS-485 (sometimes referred to as Multipoint RS-422) operations are supported via a configurable baud rate DIP-switch to match the master/slave communication timing. Supports baud rates ranging from 110 to 921,600 baud Serial interface available as DB-9 or Terminal Block connector for field wiring Features built-in configurable terminators Features configurable baud rate for Half-Duplex RS-485 and Full-Duplex RS-485 operation Supports RTS and CTS controls Supports Point-to-Point Half and Full-Duplex, Multi- Point Full-Duplex, and either Head, Tail or Mid-Position Features remote Fiber Loopback DIP-switch for easy testing of fiber link, even during serial transmission Management is available with the addition of a management module to the chassis Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Number of ST Ports	1
ST Port Type	Duplex
Number of Serial Ports	1

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	18.64 Mile

Physical Characteristics

Form Factor	Rack-mountable Desktop Internal Wall Mountable
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter RS422/485 DB-9 ST Single-Mode 30km Plug-In Module User Manual
Additional Information	Serial Port Type: DB-9 (female)
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	Compliance: UL CE FCC Class A
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
