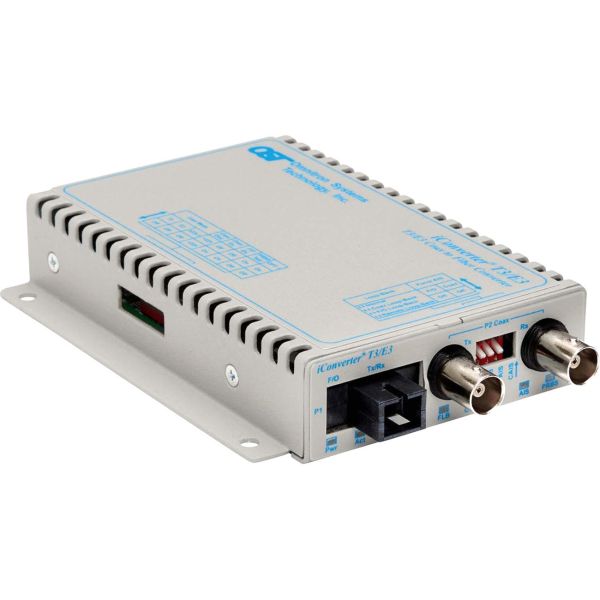

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi

• Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
• Framing independent; supports framed or unframed and channelized or fractional unchannelized data
• Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
• Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support

• Coaxial
• Optical Fiber

• T3/E3
• DS-3

• Rack-mountable
• Desktop
• External
• Wall Mountable

• iConverter T3/E3 SC Single-mode Single-Fiber 15/13 20km Wall-Mount Standalone US AC Powered
• US Power Supply - 100-120Volt / 60Hz
• User Manual

Input Voltage:

• 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
• 100-120VAC/60Hz (0.05A @ 120VAC)

• UL
• CE
• FCC Class A
