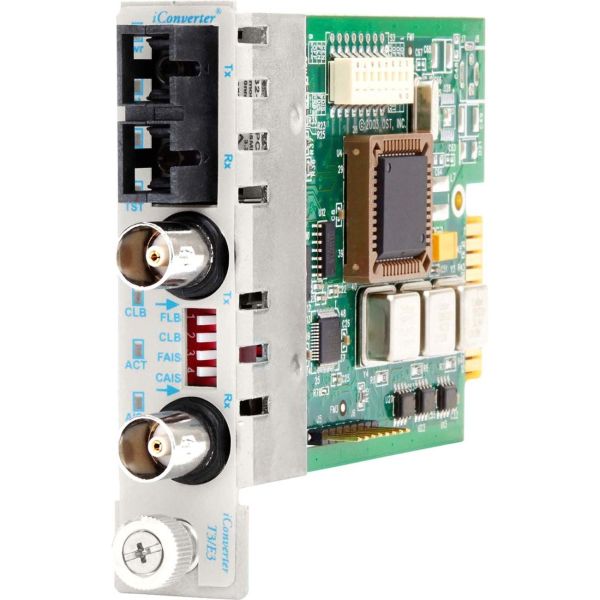

iConverter T3/E3 Fiber Media Converter Coaxial SC Multimode 5km Module

• Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
• Framing independent; supports framed or unframed and channelized or fractional unchannelized data
• Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
• Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support

• Coaxial
• Optical Fiber

• T3/E3
• DS-3

• Rack-mountable
• Desktop
• Internal
• Wall Mountable

• iConverter T3/E3 SC Multimode 5km Plug-In Module
• User Manual

• MTBF: 850,000 hours

Controls:

• T3/E3 SEL, Coax Build-Out, Coax En/Dis, Fiber En/Dis, AIS to Fiber, AIS to Coax, PRBS to Coax, Loop-Bk Coax, Loop-Bk Fiber, Loop-Bk Remote

• iConverter 19-Module Chassis
• iConverter 5-Module Chassis
• iConverter 2-Module Chassis
• iConverter 1-Module Chassis

• UL
• CE
• FCC Class A
