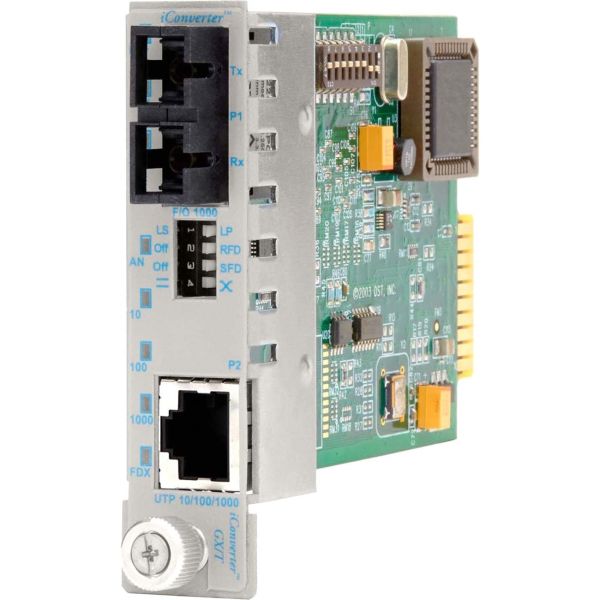

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 34km Module

Name: iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 34km Module
Brand: OMNITRON SYSTEMS
SKU: E01874
Price: 888.57 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

E01874

MFG#

8523-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$888.57

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 10/100/1000BASE
T; 1 x 1000BASE
LX; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 34km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8523-2
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	GX/T
Product Model	8523-2-x
Product Name	iConverter GX/T SC Single-Mode 34km Plug-In Module
Marketing Information	The GX/T provides 10/100/1000 UTP copper to Gigabit Ethernet fiber conversion and can be used in a managed or unmanaged fashion. The GX/T is ideal in network core or Central Office (CO) applications when conversion is required from a 10/100/1000 core switch to GigE fiber, and in edge applications when the GigE fiber is converted back into 10/100/1000 copper and delivered to a departmental or Customer Premise (CPE) switch. The UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls. Advanced features include VLAN, which allows network managers control the traffic flow between the UTP, fiber and backplane ports to enhance security, and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services to customers. The GX/T also supports port level MIB statistics reporting a real-time packet statistics to provide performance and operational monitoring. The GX/T features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting. iConverter GX/T modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis. Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T and 1000BASE-X specifications Supports VLANs, Port Access Control and MIB statistics UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting Management is available with the addition of a management module to the chassis Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	21.13 Mile

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet Gigabit Ethernet
Network Technology	10Base-T 100Base-TX 1000Base-T

Physical Characteristics

Form Factor	Rack-mountable Wall Mountable Desktop Internal
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter GX/T SC Single-Mode 34km Plug-In Module User Manual
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
