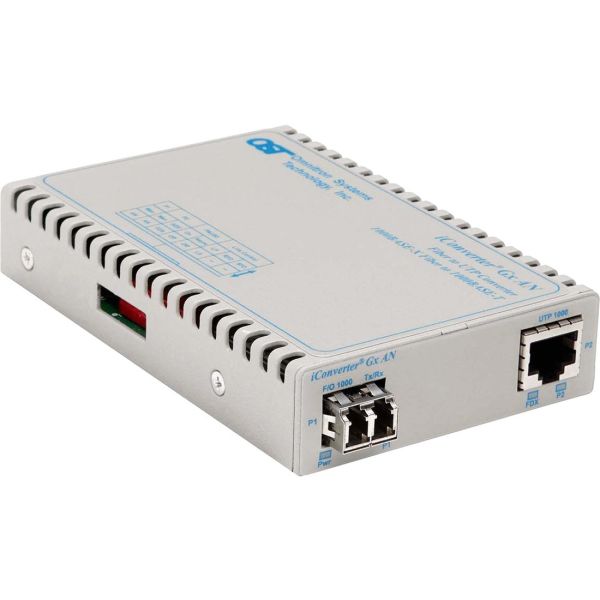

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m

Name: iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m
Brand: OMNITRON SYSTEMS
SKU: KE9866
Price: 464.37 USD
Availability: OutOfStock

OMNITRON SYSTEMS

PCN#

KE9866

MFG#

8506N-0-A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

1 x 1000BASE
T; 1 x 1000BASE
SX; Standalone; US AC Powered; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8506N-0-A
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	Gx AN
Product Model	8506N-0-x
Product Name	iConverter Gx AN LC Multimode 550m Standalone US AC Powered
Marketing Information	The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices. The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation. SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber UTP auto or forced negotitaion of duplex modes and pause capabilities Fiber port supports auto or manual negotiation User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting Management of the plug-in module is available with the addition of a management module to the chassis SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis LED displays for immediate visual status of each port Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of LC Ports	1
LC Port Type	Duplex
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Maximum Distance Supported	0.55 km
Fiber Optic Cable Core/Cladding Specification	50/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-SX

Physical Characteristics

Form Factor	Rack-mountable Desktop External
Height	1"
Width	3.1"
Depth	4.8"
Weight (Approximate)	1 lb

Miscellaneous

Package Contents	iConverter Gx AN LC Multimode 550m Standalone US AC Powered US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Input Voltage: 8-15VDC via 2.5mm barrel (0.3A @ 9VDC) 100-120VAC/60Hz (0.04A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
