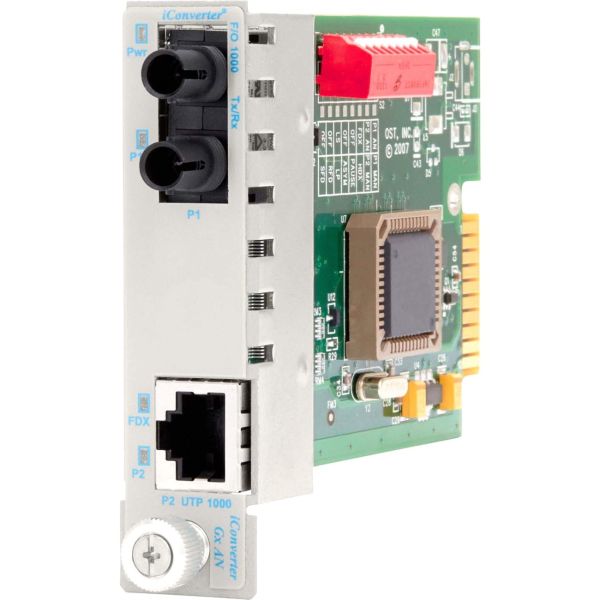

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km Module

Name: iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km Module
Brand: OMNITRON SYSTEMS
SKU: DN6489
Price: 615.72 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

DN6489

MFG#

8501N-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$615.72

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 1000BASE
T; 1 x 1000BASE
LX; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8501N-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	Gx AN
Product Model	8501N-1-x
Product Name	iConverter Gx AN ST Single-Mode 12km Plug-In Module
Marketing Information	The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices. The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation. SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber UTP auto or forced negotitaion of duplex modes and pause capabilities Fiber port supports auto or manual negotiation User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting Management of the plug-in module is available with the addition of a management module to the chassis SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis LED displays for immediate visual status of each port Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of ST Ports	1
ST Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	7.46 Mile

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-LX 1000Base-LX10

Physical Characteristics

Form Factor	Rack-mountable Desktop Internal Wall Mountable
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter Gx AN ST Single-Mode 12km Plug-In Module User Manual
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
