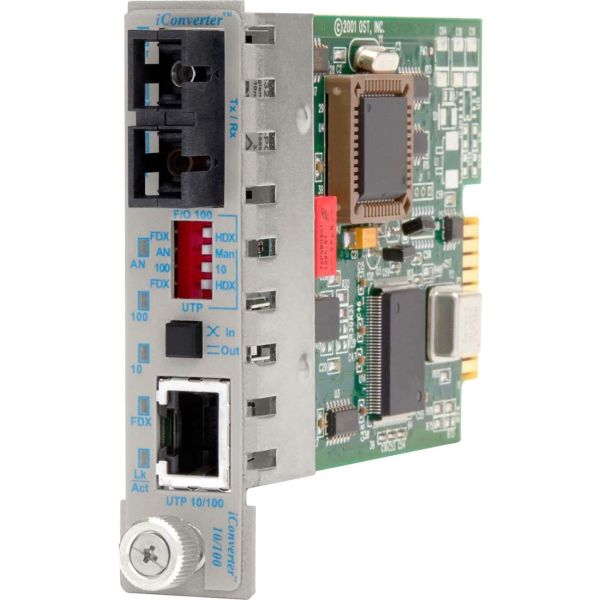

iConverter 10/100 Ethernet Fiber Media Converter RJ45 SC Single-Mode 120km Module

The iConverter 10/100 manageable media converter is a member of the modular iConverter product family. It provides UTP to Fiber conversion as well as rate conversion between 10BASE-T or 100BASE-Tx and 100BASE-Fx fiber. The 10/100 features user-selectable Link Propagate, Link Segment and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.

• UTP port with 10/100 automatically supports Half or Full-Duplex auto-negotiation with a manual crossover switch
• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
• Wide Temperature models available with temperature range of -40 to +60" C
• Lifetime Warranty and free 24/7 Technical Support

• Twisted Pair
• Optical Fiber

• Ethernet
• Fast Ethernet

• 10/100Base-TX
• 100Base-ZX

• Rail-mountable
• Desktop
• Internal
• Wall Mountable

• iConverter 10/100 SC Single-Mode 120km Plug-In Module
• User Manual

• Hot-swappable
• Wide Temperature range of -40 to +60 C
• Backplane Ethernet ports for connectivity to adjacent modules
• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting

Controls:

• UTP X-over
• LS/LP
• RFD
• Auto/Man
• 10/100
• FD/HD

• iConverter 19-Module Chassis
• iConverter 5-Module Chassis
• iConverter 2-Module Chassis
• iConverter 1-Module Chassis

• EIA/TIA 568A/B

Compliance:

• UL
• CE
• FCC Class A
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX and 100BASE-FX
