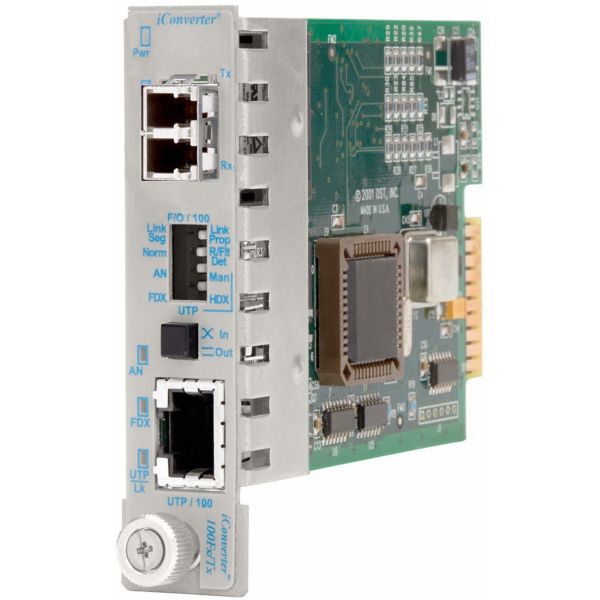

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module

Name: iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module
Brand: OMNITRON SYSTEMS
SKU: CK7523
Price: 275.93 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

CK7523

MFG#

8366-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$275.93

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 100BASE
TX; 1 x 100BASE
FX; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8366-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	100Fx/Tx
Product Model	8366-0-x
Product Name	iConverter 100Fx/Tx LC Multimode 5km Plug-In Module
Marketing Information	The iConverter 100Fx/Tx manageable media converter is a member of the modular iConverter product family. It provides 100Base-Tx UTP to 100Base-Fx Fiber conversion. This iConverter 100Fx/Tx is available single-mode. It support ST connector. The UTP port supports 100Base-Tx in either half or full duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations. UTP port supports Full or Half-Duplex 100Mbps Ethernet UTP crossover switch eliminates the need for a crossover cable User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting Management is available with the addition of a management module to the chassis Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis LED displays for immediate visual status of each port Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of LC Ports	1
LC Port Type	Duplex
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	3.11 Mile

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	100Base-TX 100Base-FX

Physical Characteristics

Form Factor	Rail-mountable Desktop Internal Wall Mountable
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter 100Fx/Tx LC Multimode 5km Plug-In Module User Manual
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3u 100BASE-TX and 100BASE-FX
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
