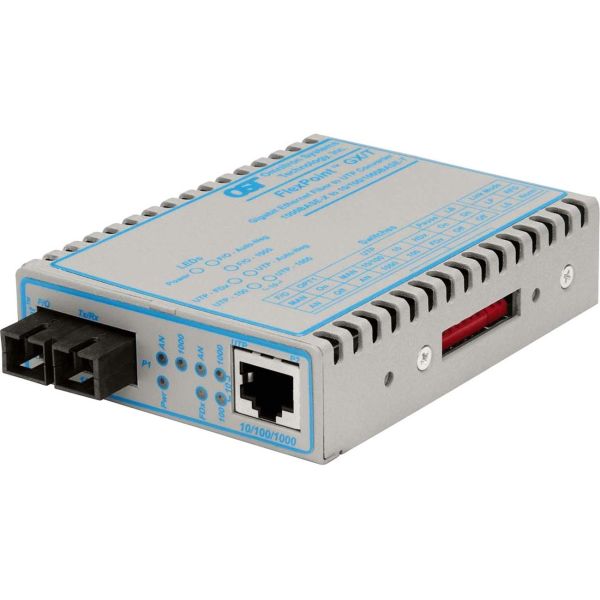

FlexPoint 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 140km

Name: FlexPoint 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 140km
Brand: OMNITRON SYSTEMS
SKU: KA3833
Price: 1369.47 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

KA3833

MFG#

4705-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,369.47

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 10/100/1000BASE
T; 1 x 1000BASE
ZX; US AC Powered; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

FlexPoint 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 140km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	4705-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Series	GX/T
Product Model	4705-x
Product Name	FlexPoint GX/T SC Single-Mode 140km US AC Powered
Marketing Information	The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1550 nm
Maximum Distance Supported	140 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-ZX

Power Description

Input Voltage

120 V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	FlexPoint GX/T SC Single-Mode 140km US AC Powered US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Input Voltage: 5-32VDC via 2.5mm barrel (0.3A @ 9VDC) 5VDC via Molex connector (0.5A @ 5VDC) 100-120VAC/60Hz (0.03A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
