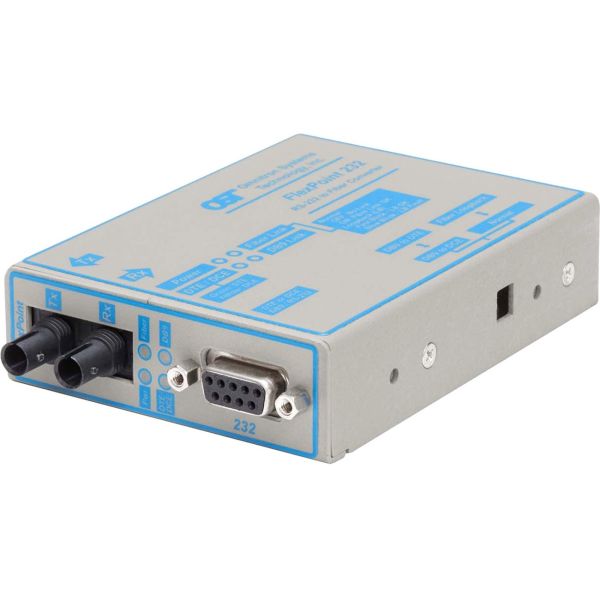

FlexPoint RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km

Name: FlexPoint RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km
Brand: OMNITRON SYSTEMS
SKU: DF1780
Price: 414.75 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

DF1780

MFG#

4483-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$414.75

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x RS
232; 1 x ST Multimode; US AC Powered; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

FlexPoint RS-232 Serial Fiber Media Converter DB-9 ST Multimode 5km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	4483-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Series	232
Product Model	4483-x
Product Name	FlexPoint 232 DB-9 ST Multimode 5km US AC Powered
Marketing Information	The FlexPoint 232 is a serial RS-232 to fiber media converter, automatically supporting speeds of up to 115,200 baud. Models are available with multimode or single-mode fiber port, capable of extending serial connection up to 28km. The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Number of ST Ports	1
ST Port Type	Duplex
Number of Serial Ports	1

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	5.01 km
Fiber Optic Cable Core/Cladding Specification	100/140 µm 62.5/125 µm 50/125 µm

Power Description

Input Voltage

120 V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	FlexPoint 232 DB-9 ST Multimode 5km US AC Powered US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Serial Port Type: DB-9 (Female) Input Voltage: 6-15VDC via 2.5mm barrel (0.5A @ 9VDC) 5VDC via Molex connector (0.6A @ 5VDC) 100-120VAC/60Hz (0.05A @ 120VAC)
Compatibility	5-Module shelf 14-Module, power-redundant Powered Chassis
Certifications & Standards	Compliance: UL CE FCC Class A
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
