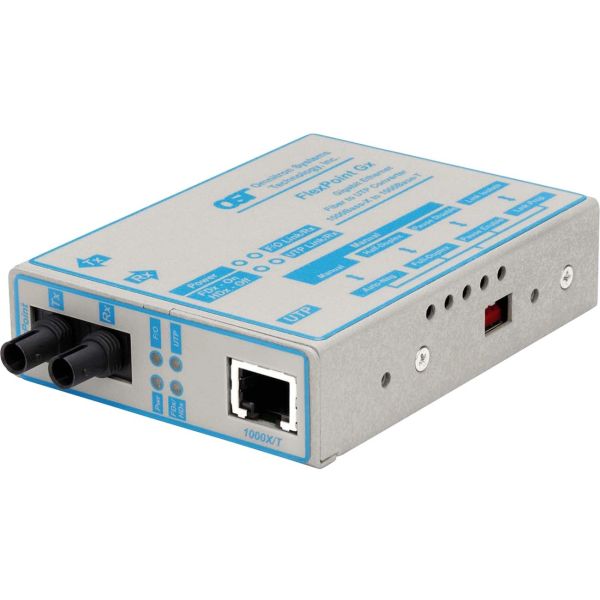

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

Name: FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km
Brand: OMNITRON SYSTEMS
SKU: DF2048
Price: 300.73 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

DF2048

MFG#

4377-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$300.73

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 1000BASE
T; 1 x 1000BASE
LX; No Power Adapter; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	4377-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Model	4377-x
Product Name	FlexPoint Gx ST Single-Mode 12km No Power Adapter
Marketing Information	The FlexPoint Gx is a 1000BASE-T UTP to 1000BASE-SX/LX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension. The FlexPoint Gx auto-negotiates with most network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with different network requirements. The FlexPoint Gx features an auto-sensing UTP port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of UTP port. The port features a crossover switch that facilitates connection to a workstation or switch. The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T to 1000BASE-SX/LX fiber media converter Fiber port supports auto or manual negotiation UTP port supports Full and Half-Duplex operation Extends network distances up to 80km User-selectable or Auto-sensing Pause flow control Supports most network interfaces with a wide variety of cable and connector types User-selectable Link Modes for quick fault detection Labeled status LEDs and switches for quick and easy installation Features a crossover switch for connection to switches or workstations Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis Completely software independent with no installation of drivers required Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of ST Ports	1
ST Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	12.01 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-LX 1000Base-LX10

Power Description

Input Voltage

9 V DC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	FlexPoint Gx ST Single-Mode 12km No Power Adapter User Manual
Additional Information	Input Voltage: 6-15VDC via 2.5mm barrel (0.4A @ 9VDC) 5VDC via Molex connector (0.6A @ 5VDC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
