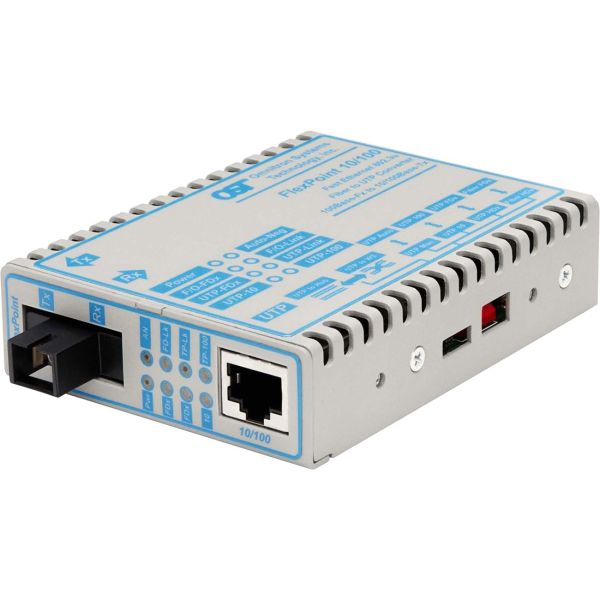

FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km

Name: FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km
Brand: OMNITRON SYSTEMS
SKU: DF1932
Price: 357.96 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

DF1932

MFG#

4357-11

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$357.96

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 10/100BASE
TX; 1 x 100BASE
BX
U; (1310/1550); US AC Powered; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

FlexPoint 10/100 Ethernet Fiber Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	4357-11
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Series	10/100
Product Model	4357-1x
Product Name	FlexPoint 10/100 SC Single-Mode Single-Fiber 13/15 20km US AC Powered
Marketing Information	The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension. The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports. When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover. The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	20 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet
Network Technology	1000Base-T 1000Base-BX 1000Base-BX-U

Power Description

Input Voltage

120 V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	FlexPoint 10/100 SC Single-Mode Single-Fiber 13/15 20km US AC Powered US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Input Voltage: 5-32VDC via 2.5mm barrel (0.5A @ 9VDC) 5VDC via Molex connector (0.8A @ 5VDC) 100-120VAC/60Hz (0.06A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
