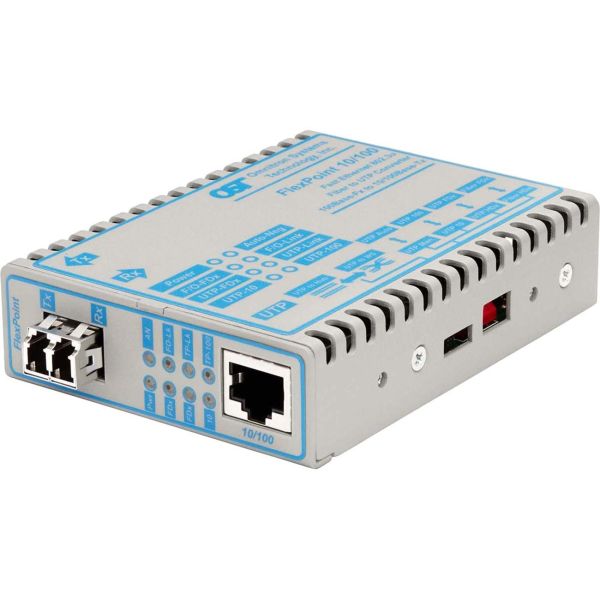

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 LC Multimode 5km

Name: FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 LC Multimode 5km
Brand: OMNITRON SYSTEMS
SKU: KD7171
Price: 314.7 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

KD7171

MFG#

4355-12

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$314.70

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 10/100BASE
TX; 1 x 100BASE
FX; Univ. AC Powered; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 LC Multimode 5km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	4355-12
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Series	10/100
Product Model	4355-1x
Product Name	FlexPoint 10/100 LC Multimode 5km Univ. AC Powered
Marketing Information	The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension. The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports. When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover. The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of LC Ports	1
LC Port Type	Duplex
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	5.01 km
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm 100/140 µm

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Power Description

Input Voltage

240 V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz

Miscellaneous

Package Contents	FlexPoint 10/100 LC Multimode 5km Univ. AC Powered Univ. Power Supply - 100-240Volt / 50-60Hz User Manual
Additional Information	Input Voltage: 5-32VDC via 2.5mm barrel (0.5A @ 9VDC) 5VDC via Molex connector (0.8A @ 5VDC) 100-240VAC/50-60Hz (0.03A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
