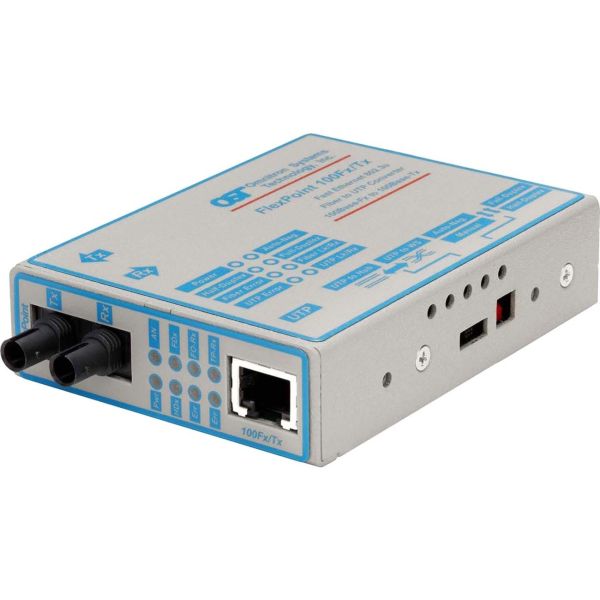

FlexPoint 100Mbps Ethernet Fiber Media Converter RJ45 ST Single-Mode 60km

• The FlexPoint 100Fx/Tx is a 100BASE-FX fiber to 100BASE-TX UTP media converter
• Supports auto-negotiation of duplex modes for easy installation
• Extends network distances up to 120km
• Supports most network interfaces with a wide variety of cable and connector types
• Labeled status LEDs and switches for quick and easy installation
• Features a crossover switch for connection to switches or workstations
• Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
• Powered Chassis
• Completely software independent with no installation of drivers required
• Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

• Twisted Pair
• Optical Fiber

• 100Base-TX
• 100Base-LX

• Rail-mountable
• Desktop
• External
• Wall Mountable

• FlexPoint 100Fx/Tx ST Single-Mode 60km US AC Powered
• US Power Supply - 120Volt / 60Hz
• User Manual

Input Voltage:

• 6-15VDC via 2.5mm barrel (0.3A @ 9VDC)
• 5VDC via Molex connector (0.5A @ 5VDC)
• 100-120VAC/60Hz (0.03A @ 120VAC)

• EIA/TIA 568A/B

• UL
• CE
• FCC Class A
• IEEE 802.3u 100BASE-TX and 100BASE-FX
