Omnitron Systems RuggedNet 10GPoEBT/Si 3262B-0-24-2Z Ethernet Switch

Name: Omnitron Systems RuggedNet 10GPoEBT/Si 3262B-0-24-2Z Ethernet Switch
Brand: OMNITRON SYSTEMS
SKU: 8NU092
Price: 1908.99 USD
Availability: OutOfStock

OMNITRON SYSTEMS

PCN#

8NU092

MFG#

3262B-0-24-2Z

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

6 Ports
2 Layer Supported
Modular
100 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack
mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 2 lbs.

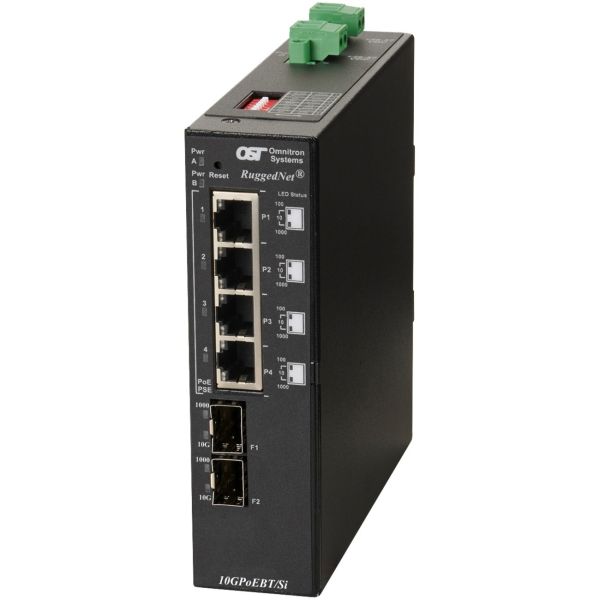

Omnitron Systems RuggedNet 10GPoEBT/Si 3262B-0-24-2Z Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	3262B-0-24-2Z
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	RuggedNet
Product Series	10GPoEBT/Si
Product Model	3262B-0-24-2Z
Product Name	RuggedNet 10GPoEBT/Si 3262B-0-24-2Z Ethernet Switch
Marketing Information	The RuggedNet 10GPoEBT/Si are industrial ruggedized and temperature-hardened unmanaged Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/Si available with 60W or 100W (IEEE 802.3bt) per user port. The RuggedNet PoE switches are Layer 2 Ethernet switches that forward frames to any port based on their MAC address. All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports. The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure. The switches support Dual Device mode that enables the 10GPoEBT/Si to operate as two independent and isolated Ethernet switches. The modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use. The RuggedNet PoE switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths. The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the model of the RuggedNet PoE switch, the switch can deliver up to 60 or 100 Watts of power per user port. The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment. All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Packaged Quantity	1
Package Type	Retail
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	6
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet Hi-PoE 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-BX10-D 1000Base-LX 1000Base-X 1000Base-LX10 1000Base-BX-D 1000Base-ZX 1000Base-BX10-U 1000Base-BX 1000Base-LX/SX 1000Base-LX/LH 1000Base-SX/LX 1000Base-BX-U 1000Base-SX 10GBase-SR 10GBase-LR 10GBase-LRM 10GBase-ER 10GBase-ZR

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Network & Communication

Layer Supported

Management & Protocols

Manageable

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	100 W
Power Source	DC
Plug/Connector Type	Terminal Block (2 Wire)

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable Shelf Mountable Rack-mountable
Height	5.5"
Width	1.5"
Depth	5.5"
Weight (Approximate)	1.77 lb

Miscellaneous

Package Contents	RuggedNet 10GPoEBT/Si 100W IEEE 802.3bt, 2xSFP/SFP+, 4xRJ-45, 2xDC Powered Industrial Temp User Manual DIN Rail Mount
Additional Information	Operating Temperature Range: -40 to +75 deg C
Certifications & Standards	IEEE 802.3, IEEE 802.3ae IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Safety: UL 60950-1, UL-62368-1, IEC 60950-1:2005+A1:2009, IEC 62368:2014/A11:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1-14, CE Mark EMC: EN 55032/EN 55024 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), IEC 61000-4-11 (General Immunity in Industrial Environments ) IP Rating: IP40 Protection
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

5 Year
