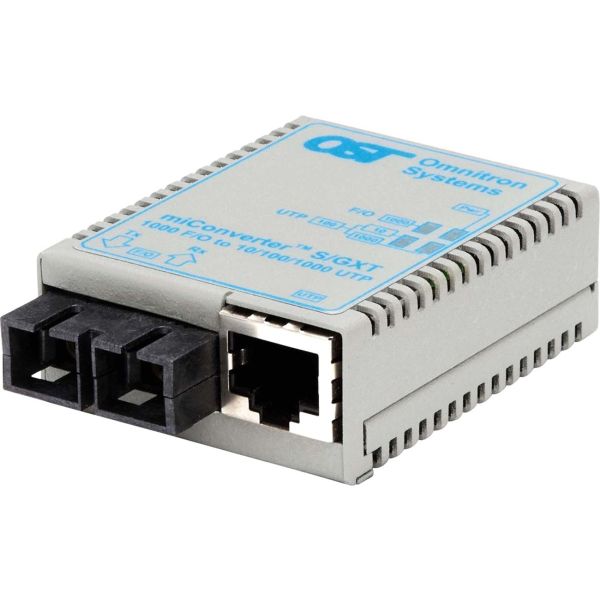

miConverter/S 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Multimode 550m

The miConverter S/GXT Gigabit fiber to 10/100/1000BASE-T and the S/FXT Fast Ethernet fiber to 10/100/1000BASE-T media converters are ideal for mobile applications where light weight, compact size and low power are critical requirements. Weighing less than 2.5 oz. (72 grams), and about the length of a standard house key, the miConverter S-Series converters can conveniently slip into any pocket or laptop carrying case for easy portability.

These ultra-compact media converters can be USB powered, enabling fiber connectivity to locations where AC or DC power is unavailable, such as field-deployed fiber-to-the-laptop and military applications. Fiber is run directly to the laptop, where it is converted to copper UTP and connected to a laptop RJ-45 port with a standard Ethernet patch cable. Power is supplied to the media converter by the laptop"s USB port using a standard USB cable, eliminating the need for an electrical outlet.

• Twisted Pair
• Optical Fiber

• 50/125 µm
• 62.5/125 µm
• 100/140 µm

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

• 10/100/1000Base-T
• 1000Base-SX

• Desktop
• External
• Wall Mountable

• miConverter S/GXT SC Multimode 550m USB/US AC Powered
• USB Power Cable
• US Power Supply - 120Volt / 60Hz
• User Manual

Input Voltage:

• 5VDC via micro-USB (0.5A @ 5VDC)
• 100-120VAC/60Hz (0.02A @ 120VAC)

• EIA/TIA 568A/B

• UL
• CE
• FCC Class A
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3z 1000BASE-X
• IEEE 802.3ab 1000BASE-T

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
