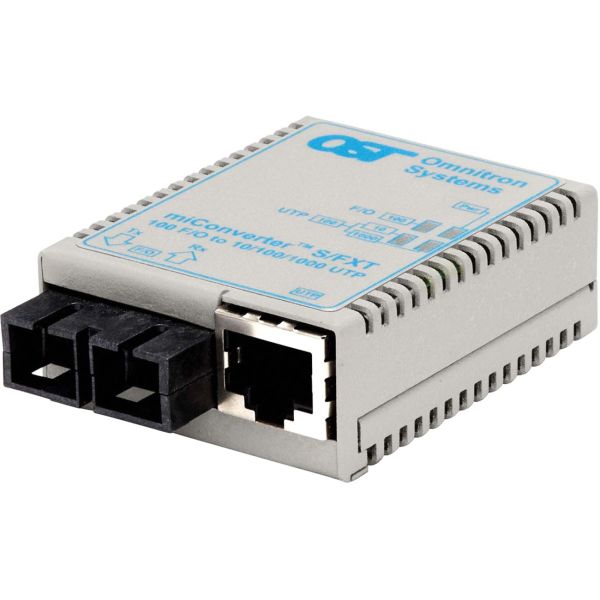

miConverter/S 10/100 Ethernet Fiber Media Converter RJ45 SC Multimode 5km

Name: miConverter/S 10/100 Ethernet Fiber Media Converter RJ45 SC Multimode 5km
Brand: OMNITRON SYSTEMS
SKU: KQ4997
Price: 346.44 USD
Availability: OutOfStock

OMNITRON SYSTEMS

PCN#

KQ4997

MFG#

1602-0-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

1 x 10/100BASE
T, 1 x 100BASE
FX, USB/US AC Powered, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

miConverter/S 10/100 Ethernet Fiber Media Converter RJ45 SC Multimode 5km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	1602-0-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	miConverter
Product Series	S/FXT
Product Model	1602-0-x
Product Name	miConverter S/FXT SC Multimode 5km USB/US AC Powered
Marketing Information	The miConverter S/FXT Fast Ethernet fiber to 10/100BASE-T media converters are ideal for mobile applications where light weight, compact size and low power are critical requirements. Weighing less than 2.5 oz. (72 grams), and about the length of a standard house key, the miConverter S-Series converters can conveniently slip into any pocket or laptop carrying case for easy portability. These ultra-compact media converters can be USB powered, enabling fiber connectivity to locations where AC or DC power is unavailable, such as field-deployed fiber-to-the-laptop and military applications. Fiber is run directly to the laptop, where it is converted to copper UTP and connected to a laptop RJ-45 port with a standard Ethernet patch cable. Power is supplied to the media converter by the laptop's USB port using a standard USB cable, eliminating the need for an electrical outlet.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	3.11 Mile

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet Gigabit Ethernet
Network Technology	10/100/1000Base-T 100Base-FX

Power Description

Input Voltage

120 V AC

Physical Characteristics

Form Factor	Desktop External Wall Mountable Mountable
Height	0.8"
Width	2.3"
Depth	1.8"
Weight (Approximate)	2.50 oz

Miscellaneous

Package Contents	miConverter S/FXT SC Multimode 5km USB/US AC Powered USB Power Cable US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Input Voltage: 5VDC via micro-USB (0.5A @ 5VDC) 100-120VAC/60Hz (0.02A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX IEEE 802.3ab 1000BASE-T
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
