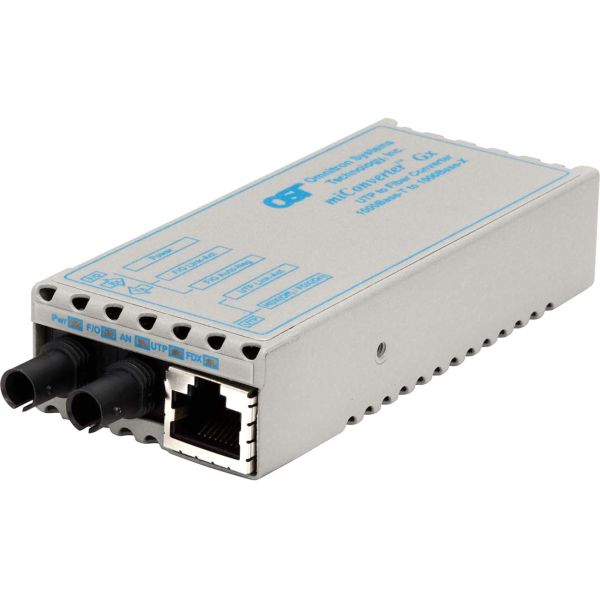

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

Name: miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km
Brand: OMNITRON SYSTEMS
SKU: CK7047
Price: 273.47 USD
Availability: OutOfStock

OMNITRON SYSTEMS

PCN#

CK7047

MFG#

1201-1-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

1 x 1000BASE
T, 1 x 1000BASE
LX, No Power Adapter, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Single-Mode 12km

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	1201-1-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	miConverter
Product Series	Gx
Product Model	1201-1-x
Product Name	miConverter Gx ST Single-Mode 12km No Power Adapter
Marketing Information	The miConverter Gx is a miniature 1000BASE-T UTP copper to 1000BASE-X fiber Gigabit Ethernet media converter. The miConverter Gx provides cost-effective fiber connectivity from Gigabit switches to diagnostic equipment, desktop and laptop computers. The miConverter Gx is the first Gigabit media converter powered by a USB port (1.0, 1.1, and 2.0). An optional USB Power Adaptor Cable is available, which reduces the module's weight and eliminates the need to tether the miConverter Gx to an electrical outlet. Miniature Gigabit Ethernet media converter Supports 1000BASE-T, 1000BASE-X and the IEEE 802.3 specification Plug-and-Play capability USB power via optional Power Adapter Cable Supports Full/Half-Duplex fiber optic auto-negotiation Multimode and single-mode fiber options LED indicators for UTP and fiber status Domestic, Universal and Country/Region specific power supply options Wall-mount with optional mounting brackets or included Velcro® strips Small and lightweight, only 5 ounces (without power supply) Cost-effective Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of ST Ports	1
ST Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	12.01 km
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-LX 1000Base-LX10

Power Description

Input Voltage

5 V DC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	0.8"
Width	1.7"
Depth	4.1"
Weight (Approximate)	5 oz

Miscellaneous

Package Contents	miConverter Gx ST Single-Mode 12km No Power Adapter Velcro Strip User Manual
Additional Information	Input Voltage: 5-15VDC via 2.5mm barrel (0.2A @ 9VDC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
