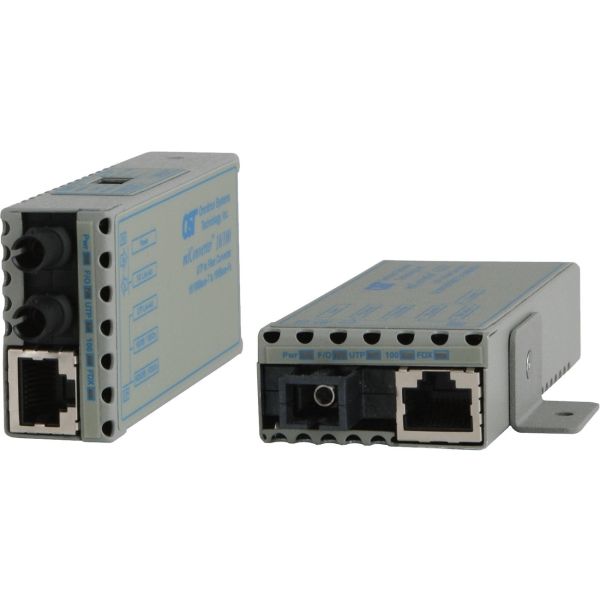

Omnitron Systems Miniature 10/100BASE-TX to 100BASE-FX Ethernet Media Converter

Name: Omnitron Systems Miniature 10/100BASE-TX to 100BASE-FX Ethernet Media Converter
Brand: OMNITRON SYSTEMS
SKU: GV1533
Price: 159.14 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

GV1533

MFG#

1102-0-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$159.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
10/100Base
TX, 100Base
FX
3.11 Mile
Wall Mountable, External

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Omnitron Systems Miniature 10/100BASE-TX to 100BASE-FX Ethernet Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	1102-0-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	miConverter
Product Series	10/100 Plus
Product Model	1102-0-x
Product Name	Miniature 10/100BASE-TX to 100BASE-FX Ethernet Media Converter
Marketing Information	The miniature miConverter 10/100 and miConverter 10/100 Plus are rate-switching 10/100 RJ-45 copper to 100BASE-FX fiber media converters. miConverter provide cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers. They can be powered by a computer's USB port using the optional USB Power Adaptor Cable, which reduces the module's weight and eliminates the need to tether the miConverter to an electrical outlet. The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	3.11 Mile

Network & Communication

Ethernet Technology	Ethernet Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Physical Characteristics

Form Factor	Wall Mountable External
Height	0.8"
Width	1.7"
Depth	4.1"
Weight (Approximate)	4 oz

Miscellaneous

Compatibility	Omnitron 18-Module Chassis: AC Powered 48VDC Powered 24VDC Powered
Certifications & Standards	UL CE FCC Class A FCC Class B IEEE 802.3
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
