NVIDIA SPECTRUM BASED 10GBE/40GBE 1U

Name: NVIDIA SPECTRUM BASED 10GBE/40GBE 1U
Brand: NVIDIA SOURCING
SKU: NP6371
Price: 30193.92 USD
Availability: InStock

NVIDIA SOURCING

PCN#

NP6371

MFG#

MSN2410-BB2FC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$30,193.92

Free Shipping

Estimated Shipment:

Product Highlights:

Manageable
10GBase
X
3 Layer Supported
Modular
Optical Fiber
1U High
Rail
mountable, Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

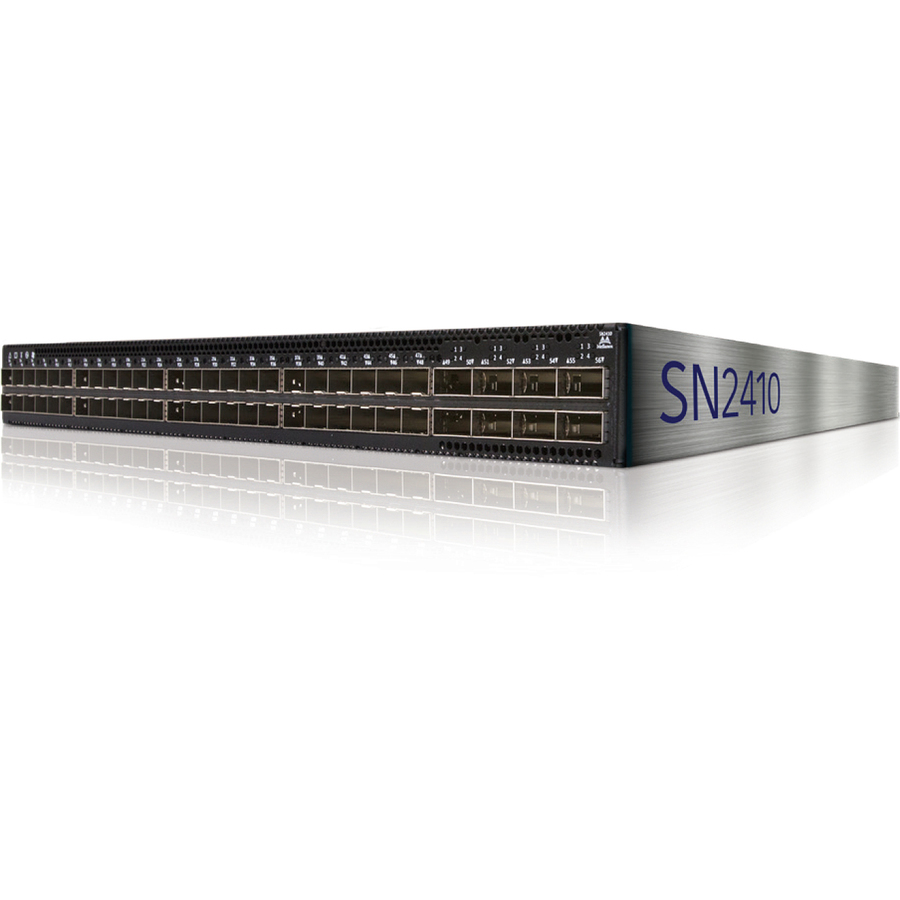

Mellanox Spectrum SN2410 Switch Chassis

Overview

Tech Specs

Specifications

Manufacturer	NVIDIA Corporation
Manufacturer Part Number	MSN2410-BB2FC
Manufacturer Website Address	http://www.nvidia.com
Brand Name	Mellanox
Product Line	Spectrum
Product Model	SN2410
Product Name	Spectrum SN2410 Switch Chassis
Marketing Information	Mellanox SN2410 provides the most predictable, highest performance 100GbE ToR switching platform for the growing demands of today's data centers. The SN2410 switch is an ONIE (Open Network Install Environment) based platform for allowing a multitude of operating systems to be mounted on it and utilizing the advantages of Open Networking and the capabilities of the Mellanox Spectrum™ ASIC. The SN2410 has three modes of operation. It can be provided preinstalled with Mellanox Onyx™ (successor to MLNX-OS Ethernet), a home-grown operating system utilizing common networking user experiences and industry standard CLI. It can come preinstalled with Cumulus® Linux, a revolutionary operating system taking the Linux user experience from servers to switches and providing a rich routing functionality for large scale applications. Finally, it can be provided with a bare ONIE image ready to be installed with the aforementioned or other ONIE-based operating systems. The SN2410 switch is an ideal top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port. Its optimized port configuration enables high-speed rack connectivity to any server at 10GbE or 25GbE speeds. The 100GbE uplink ports allow a variety of blocking ratios that suit any application requirement. Powered by the Spectrum ASIC and packed with 8 ports running at 100GbE (can be split to 16 ports running 50GbE) and 48 ports running at 25GbE, the SN2410 carries a whopping throughput of 4Tb/s with a landmark 5.95Bpps processing capacity in a compact 1RU form factor. Keeping with the Mellanox tradition of setting performance record switch systems, the SN2410 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. The low latency is maintained while switching or routing between ports at different speeds, leveraging a smart cut-through architecture that performs on-the-fly optimized buffering, eliminating any dependency between ports. With the SN2410, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities. The SN2410 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.
Product Type	Switch Chassis

Interfaces/Ports

Uplink Port	No
Modular	Yes
Stack Port	No
Port/Expansion Slot Details	48 x 10 Gigabit Ethernet Expansion Slot 8 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet 100 Gigabit Ethernet
Network Technology	10GBase-X 100GBase-X

I/O Expansions

Total Number of Expansion Slots	56.0
Expansion Slot Type	SFP28 QSFP28
Shared SFP Slot	No

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

Power Source	Power Supply
Redundant Power Supply Supported	No

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rail-mountable Rack-mountable
Height	1.7"
Width	17.2"
Depth	17"
Weight (Approximate)	18.78 lb

Miscellaneous

Package Contents	Spectrum SN2410 Switch Chassis Rail Kit 2 x Power Supplies (AC)
Country of Origin	Israel
Environmentally Friendly	Yes
