NVIDIA 30M QSFP56 LSZH BLK ACT FBR CBL

NVIDIA MFS1S00-H030E Active Optical Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH Black Pulltab 30m200Gb/s HDR QSFP56 MMF Active Optical Cable

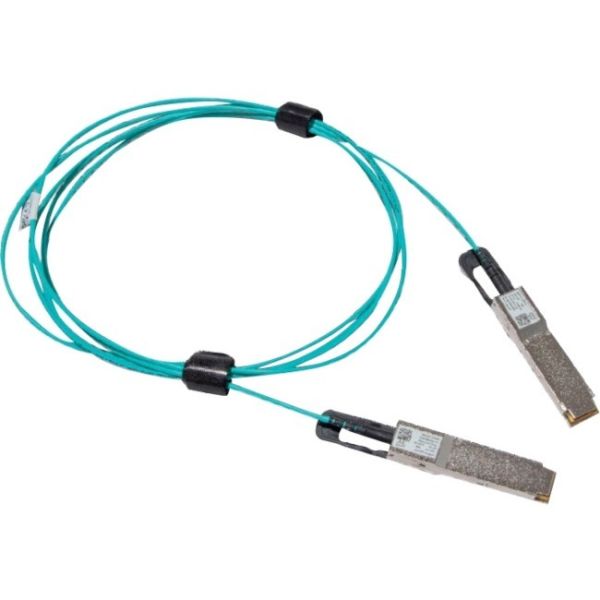

NVIDIA Networking MFS1S00-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. The MFS1S00-HxxxE AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

MFS1S00-HxxxE has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00-HxxxE offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.

Highlights

• Supports IBTA InfiniBand HDR
• Up to 200Gb/s data rate
• 4x 50Gb/s PAM4 modulation
• Programmable Rx output amplitude and pre-emphasis
• SFF-8665 compliant QSFP56 port
• Single 3.3V power supply
• 4.35W power dissipation (typ., each end with retiming)
• Bit Error Rate (BER) better than 1E-15
• Up to 150m length
• Hot pluggable
• RoHS compliant
• SFF-8636 compliant I2C management interface

• Network Device
• Transmitter
• Receiver

• HDR Support
• AOC Technology
• Bendable

• Black
• Aqua
