SPECTRUM-2 BASED 25GBE/100GBE SUPPORT REQUIRED

Name: SPECTRUM-2 BASED 25GBE/100GBE SUPPORT REQUIRED
Brand: NVIDIA
SKU: 8LC316
Price: 18675.98 USD
Availability: InStock

NVIDIA

PCN#

8LC316

MFG#

MSN3420-CB2FC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$18,675.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,784.99

3-Year $2,341.99

Free Shipping

Estimated Shipment:

Product Highlights:

Manageable
25 Gigabit Ethernet, 100 Gigabit Ethernet
25GBase
X, 100GBase
X
3 Layer Supported
Modular
Optical Fiber
Black
1U
Rail
mountable, Rack
mountable, Compact
1 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 13 lbs.

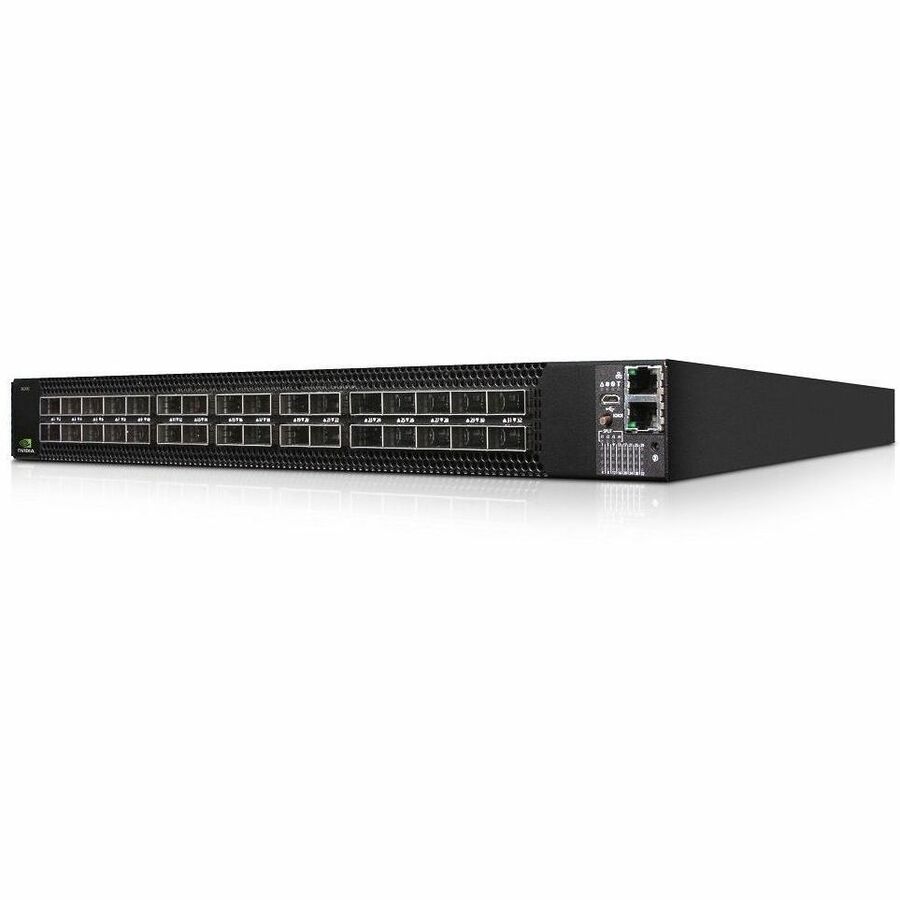

Mellanox Spectrum-2 SN3000 SN3420 Ethernet Switch

The SN3000 series switches are the 3rd generation of NVIDIA® Mellanox ® Spectrum® switches, purpose-built for leaf/spine/super-spine datacenter applications. Allowing maximum flexibility, SN3000 series provides port speeds spanning from 1GbE to 400GbE, and a port density that enables full rack connectivity to any server at any speed. In addition,the uplink ports allow a variety of blocking ratios to suit any application requirement.

The SN3000 series is ideal for building wire-speed and cloud-scale layer-2 and layer-3 networks. The SN3000 platforms deliver high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications.

Overview

NETWORK DISAGGREGATION

OPEN ETHERNETOpen Ethernet breaks the paradigm of traditional switch systems, eliminating vendor lock-in. Instead of forcing network operators to use the specific software that is provided by the switch vendor, Open Ethernet offers the flexibility to use a choice of operating systems on top of Ethernet switches, thereby re-gaining control of the network, and optimizing utilization, efficiency and overall return on investment.Encouraging an ecosystem of open source, standard network solution, Open Ethernet adopts the same principles as standard open solutions for servers and storage, and applies them to the world of networking infrastructure. These solutions can then be easily deployed into the modern data center across network equipment that eases management and ensures full interoperability.With a range of system form factors, and a rich software ecosystem, SN3000 series allows you to pick and choose the right components for your data center.Product TypeEthernet SwitchTechnical InformationFeaturesHot-swappableInterfaces/PortsModularYesPort/Expansion Slot Details48 x 25 Gigabit Ethernet Expansion Slot12 x 100 Gigabit Ethernet Expansion SlotMedia & PerformanceMedia Type SupportedOptical FiberEthernet Technology25 Gigabit Ethernet100 Gigabit EthernetNetwork Technology25GBase-X100GBase-XI/O ExpansionsTotal Number of Expansion Slots60Expansion Slot TypeSFP28QSFP28Network & CommunicationLayer Supported3Networking StandardsIEEE 802.1QIEEE 802.3xIEEE 802.3adIEEE 802.1wIEEE 802.1xIEEE 802.1abIEEE 802.1QbbIEEE 802.1QazManagement & ProtocolsManageableYesPower DescriptionInput Voltage120 V AC230 V ACFrequency50 Hz60 HzPower SourcePower SupplyRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Number of Power Supplies Installed2Physical CharacteristicsColor FamilyBlackProduct ColorBlackCompatible Rack Unit1UForm FactorRail-mountableRack-mountableCompactHeight1.7"Width16.8"Depth17"MiscellaneousApplication/UsageNetworkData CenterCertifications & Standards

Tech Specs

Visibility

NVIDIA Mellanox What Just Happened® (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to
When, What, Who, Where and Why
Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
Inband Network Telemetry (INT)-ready hardware
Streaming Telemetry
512K on-chip flow counters

Performance

Fully shared packet buffer provides a fair, predictable and high bandwidth data path
Consistent and low cut-through latency
Robust RoCE transport to power NVMe over fabric and Machine Learning applications that leverage NVIDIA Mellanox GPUDirect
Best-in-class VXLAN scale-10X more tunnels and tunnel endpoints than others
512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications

Packaged Quantity1Product TypeEthernet SwitchTechnical InformationFeaturesHot-swappableInterfaces/PortsModularYesPort/Expansion Slot Details

48 x 25 Gigabit Ethernet Expansion Slot
12 x 100 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type SupportedOptical FiberEthernet Technology

25 Gigabit Ethernet
100 Gigabit Ethernet

Network Technology

25GBase-X
100GBase-X

I/O ExpansionsTotal Number of Expansion Slots60Expansion Slot Type

SFP28
QSFP28

Network & CommunicationLayer Supported3Networking Standards

IEEE 802.1Q
IEEE 802.3x
IEEE 802.3ad
IEEE 802.1w
IEEE 802.1x
IEEE 802.1ab
IEEE 802.1Qbb
IEEE 802.1Qaz

Management & ProtocolsManageableYesPower DescriptionInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power SourcePower SupplyRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Number of Power Supplies Installed2Physical CharacteristicsColor FamilyBlackProduct ColorBlackCompatible Rack Unit1UForm Factor

Rail-mountable
Rack-mountable
Compact

Height1.7"Width16.8"Depth17"MiscellaneousApplication/Usage

Network
Data Center

Certifications & Standards Safety

CB
CE
cTUVus
CU

EMC

CE
ICES
FCC
RCM
VCCI

Environmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty1 Year
