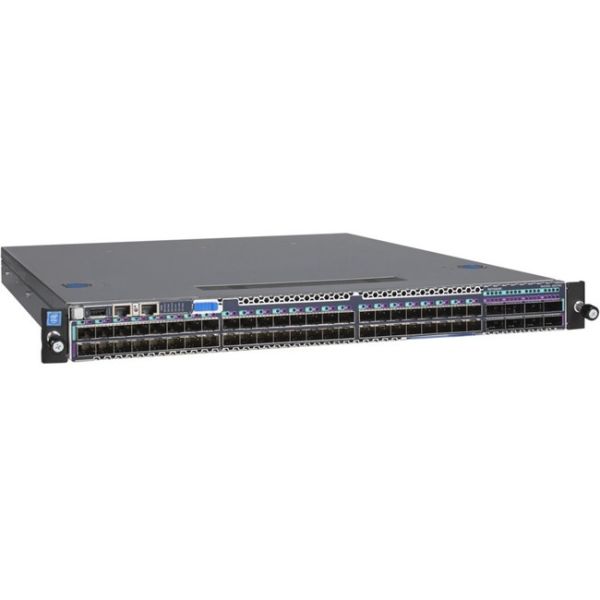

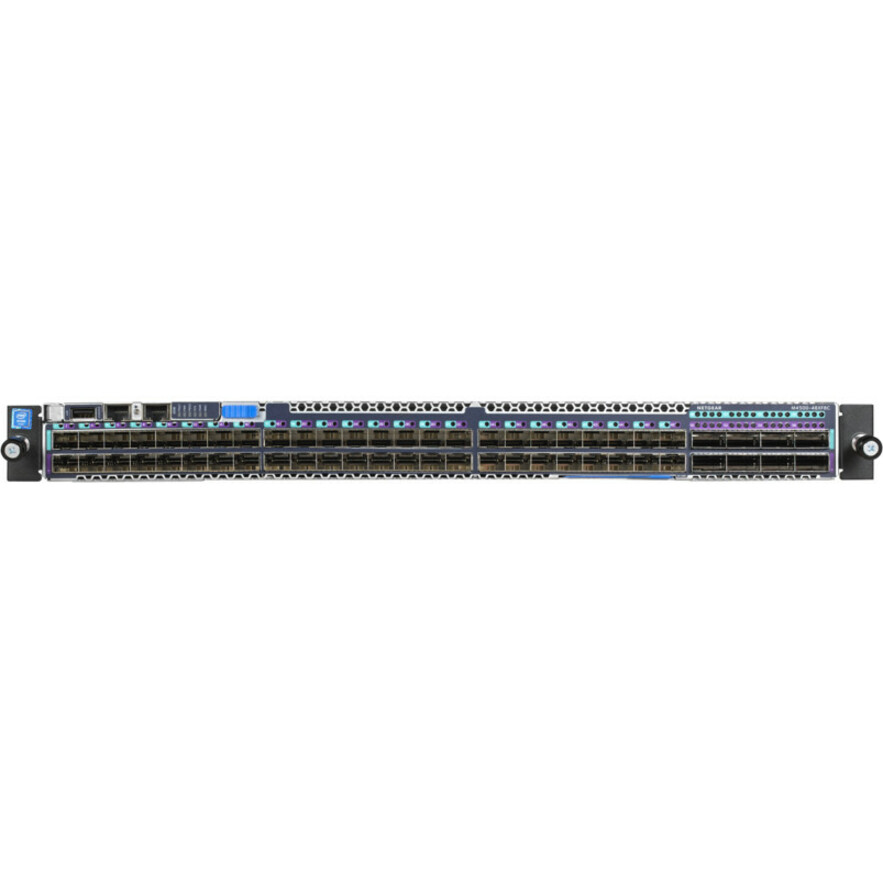

Netgear XSM4556 Ethernet Switch

Name: Netgear XSM4556 Ethernet Switch
Brand: NETGEAR NFB
SKU: 6LR089
Price: 15870.05 USD
Availability: InStock

NETGEAR NFB

PCN#

6LR089

MFG#

XSM4556-100NAS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$15,870.05

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,449.99

3-Year $2,118.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
3 Layer Supported
Modular
Optical Fiber
1U High
Rack
mountable, Rail
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 45 lbs.

Netgear XSM4556 Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Netgear, Inc
Manufacturer Part Number	XSM4556-100NAS
Manufacturer Website Address	http://www.netgear.com
Brand Name	Netgear
Product Series	M4500
Product Model	XSM4556
Product Name	XSM4556 Ethernet Switch
Marketing Information	The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box. Highlights A 10G to 100G solution The M4500-32C offers 32-port QSFP28 preconfigured for 100G and can support 40G QSFP+ and 50G QSFP28 optics or DAC cables The M4500-48XF8C offers 48-port SFP28 preconfigured for 10G with 8-port 100G QSFP28 uplinks, and the SFP28 ports can support 10G and 25G For Pro AV installations Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box True AV and multicast Zero Touch network configuration: Connect AV-over-IP encoders and decoders, and power on the switch. It just works! Intelligent IGMP Plus IGMP Plus multicast allows for scalable Pro AV installations at Layer 2 without the PIM (Protocol Independent Multicast) complexity IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across M4500 and M4300 switches on that VLAN Higher availability Meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications The M4500 switches offer 1+1 power and 4+2 fan redundancy, an x86 Intel Atom® Processor C3558 with 8GB DDR3/ECC RAM and 128GB SSD storage Industry standard management The M4500 switches come with an industry standard command line interface (CLI), SSH, SNMP, sFlow, and MLAG An out of band 1 Gigabit Ethernet port facilitates management, with simplified macro-commands for AV-over-IP configuration Industry leading warranty NETGEAR M4500 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Modular	Yes
Port/Expansion Slot Details	48 x 25 Gigabit Ethernet Expansion Slot 8 x 100 Gigabit Ethernet Uplink

Media & Performance

Media Type Supported	Optical Fiber
Ethernet Technology	25 Gigabit Ethernet 100 Gigabit Ethernet
Network Technology	25GBase-X 1000Base-X

I/O Expansions

Number of Total Expansion Slots	56
Expansion Slot Type	SFP28 QSFP28

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

Power Source	Power Supply
Redundant Power Supply Supported	Yes

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Rail-mountable
Height	1.7"
Width	17.3"
Depth	20"
Weight (Approximate)	21.43 lb

Miscellaneous

Package Contents	XSM4556 Ethernet Switch 2 x Power Supplies and Six Fan Trays Already Installed Power Cord(s) Console Cable with One DB9 Female Connector and One RJ-45 Serial Connector 2 x Mounting Ears and Screws For Rack Mounting (Front) 1 x Set of Rail Kits For Rack Mounting (Back)
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE REACH ErP
Country of Origin	China

Warranty

Limited Warranty

Lifetime
