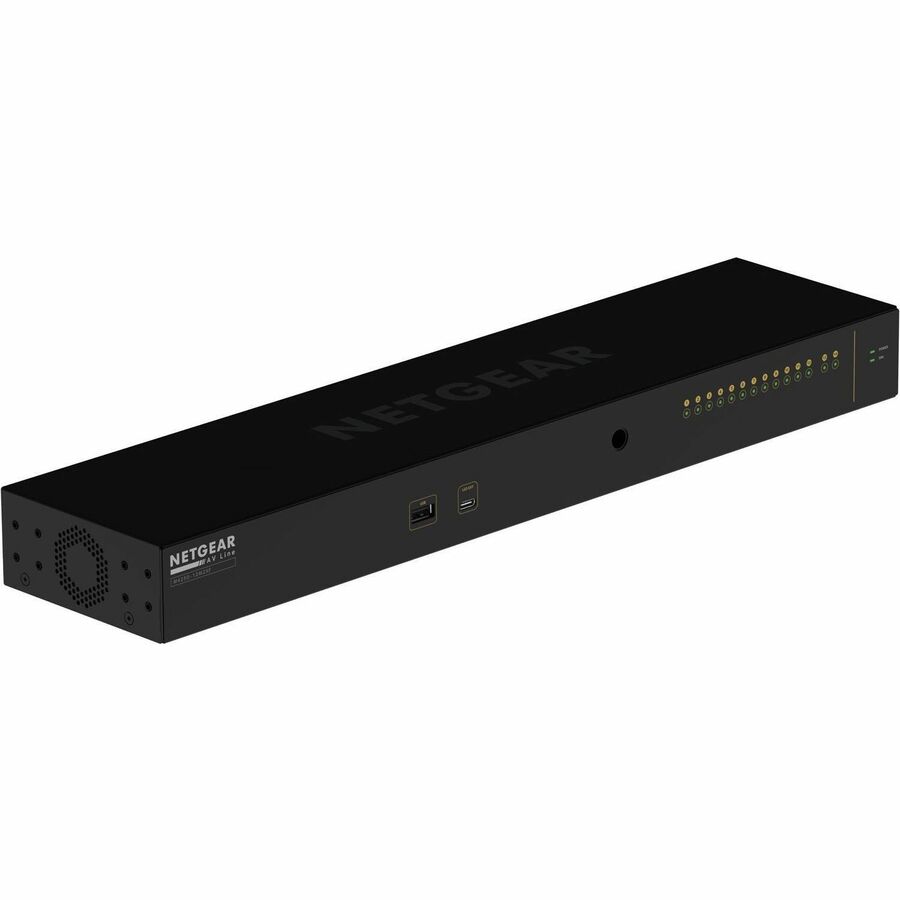

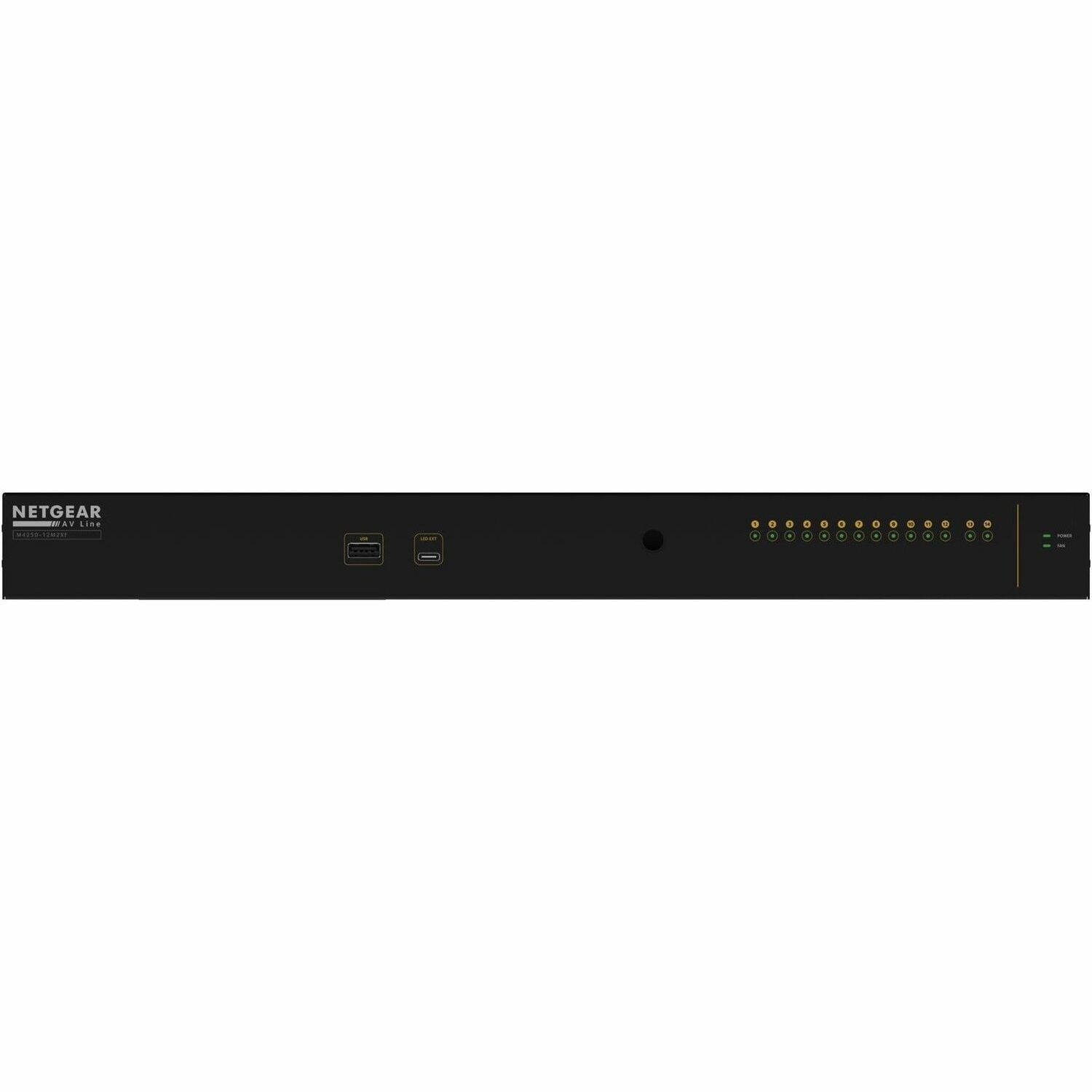

M4250-12M2XF MANAGED SWITCH

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio, Dante, Q-SYS, AES67, and AVB profiles are available. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.|

Highlights

Extended AV features

• Dedicated AV web-based GUI interface for more specific AV installations
• Color-based AV profiles can be applied to the different ports
• Dante, Q-SYS, AES67 and AVB audio profiles
• NVX, SVSI, Q-SYS, NDI and Dante video profiles
• Audio / video / control mixed profiles
• Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG and IGMP Plus
• Common Layer 2 and Layer 3 switching engine across all M4250 models
• Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4300 and M4500 series
• Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Audio Video Bridging (AVB) services

• AVB is one of the many features designed into the M4250 product line
• AVB is an industry standard for transporting content over a network
• AVB is used most often when very low latency is required such as in live performances when lip sync is critical

Other IT use cases

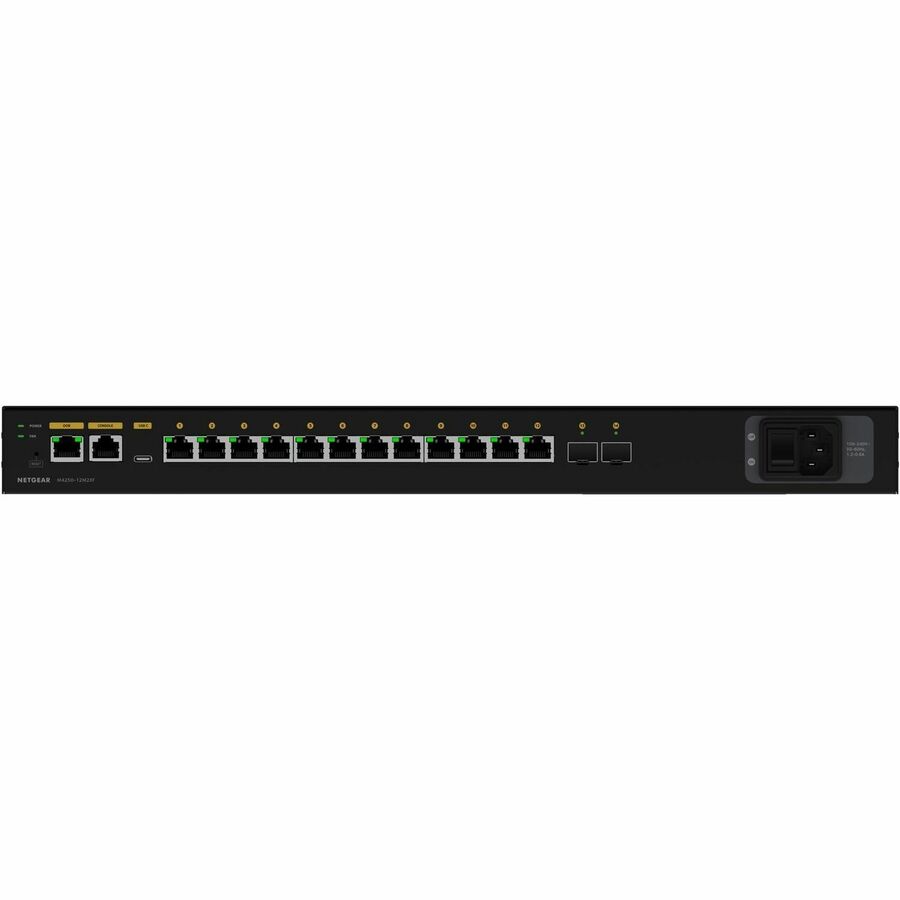

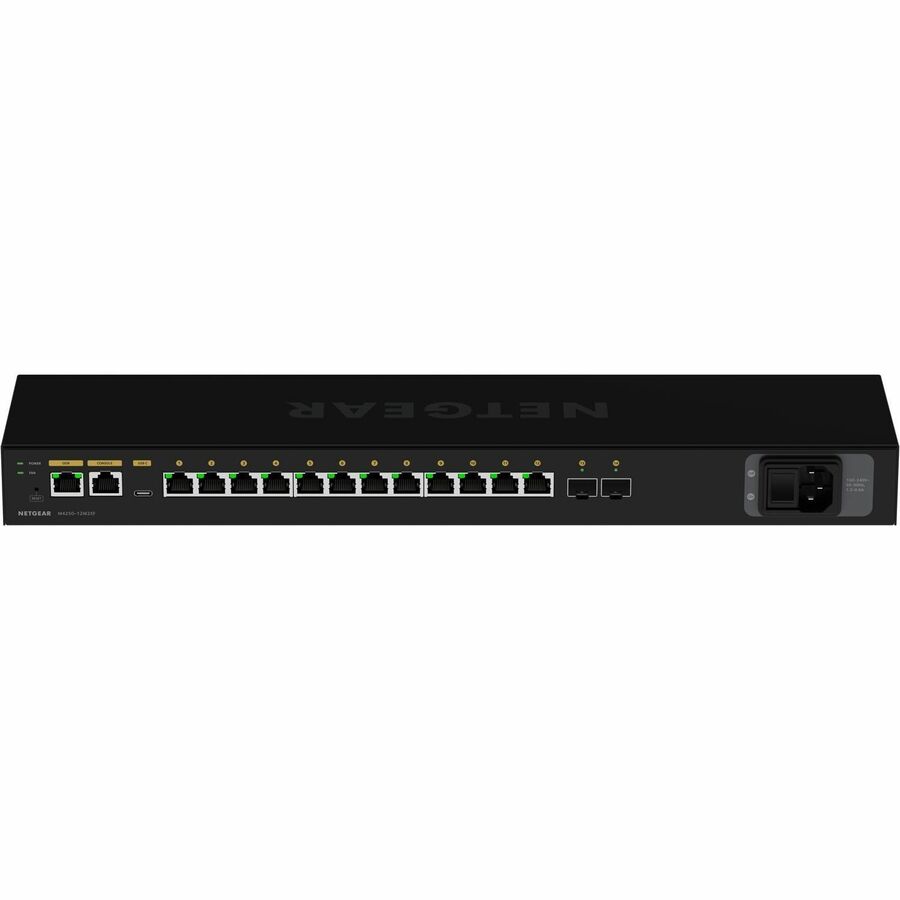

• Standard or recessed mounting with all ports in the back, or all ports in the front
• Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN

• Fanless
• DHCP Snooping
• Dynamic ARP Inspection
• Router Advertisement (RA) Guard
• Remote Monitoring (RMON)
• Broadcast Storm Control
• Access Control List
• DHCP Relay

• 12 x 1/2.5BASE-T Gigabit Ethernet RJ-45 Network Port
• 2 x 10 Gigabit Ethernet SFP+ Expansion Slot

• Optical Fiber
• Twisted Pair

• 10 Gigabit Ethernet
• 2.5 Gigabit Ethernet
• Gigabit Ethernet

• 2.5GBase-T
• 1000Base-T
• 1000Base-X
• 10GBase-X

• IEEE 802.1as
• IEEE 802.1Qav
• IEEE 802.1Qat
• IEEE 802.1ak
• IEEE 802.3az
• IEEE 802.3ad
• IEEE 802.1AX
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1p

• Rack-mountable
• Table Top

• AV Line M4250-12M2XF Ethernet Switch
• Power Cord(s)
• RJ45 straight-through wiring serial console cable to DB9
• USB Type-C to USB-A 2.0 Console Cable
• Rubber caps for the SFP/SFP+ Sockets
• Rubber Footpads for Tabletop Installation
• Installation guide
• 2 x Regular (short) brackets and screws for two-post rack mount (for front posts) allowing for mounting with ports on the back, or ports on the front of the rack
• 2 x longer brackets for two-post rack mount (for front posts) recessing the switch by 2 inches in order to make room for the cabling

• Network
• Security
• Campus Network
• Branch Office
• Enterprise
• IoT Devices
