Netgear M4250-26G4XF-PoE+ AV Line Managed Switch

Name: Netgear M4250-26G4XF-PoE+ AV Line Managed Switch
Brand: NETGEAR NFB
SKU: 8LV783
Price: 1711.15 USD
Availability: InStock

NETGEAR NFB

PCN#

8LV783

MFG#

GSM4230PX-100NAS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-2%

Authorized Dealer

$1,739.99 $1,739.99 To see product price, add this item to your cart. You can always remove it later. What's this?

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
3 Layer Supported
Modular
46.80 W Power Consumption
480 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
1U High
Rack
mountable, Table Top
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 16 lbs.

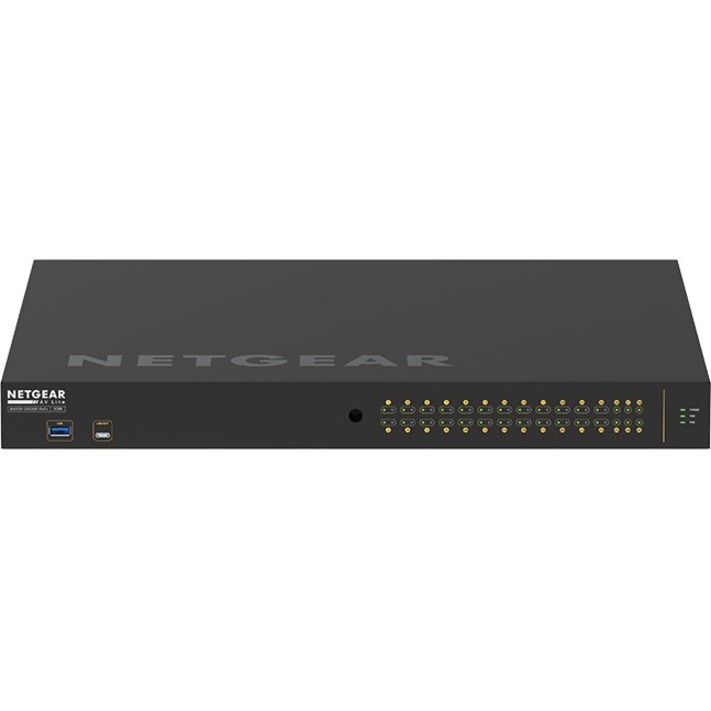

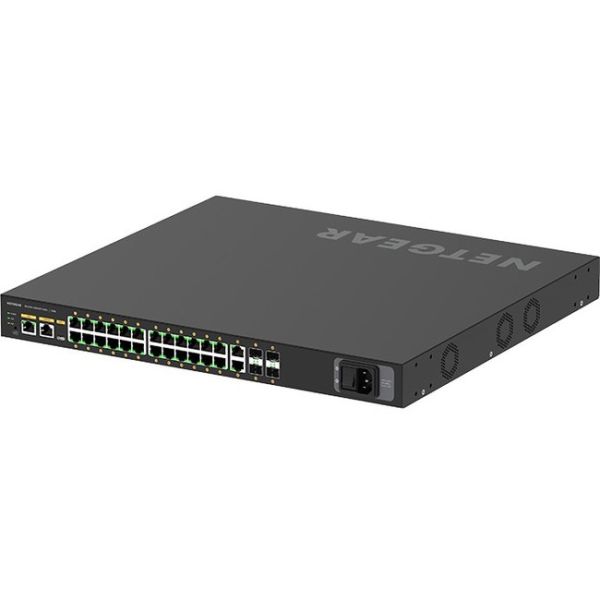

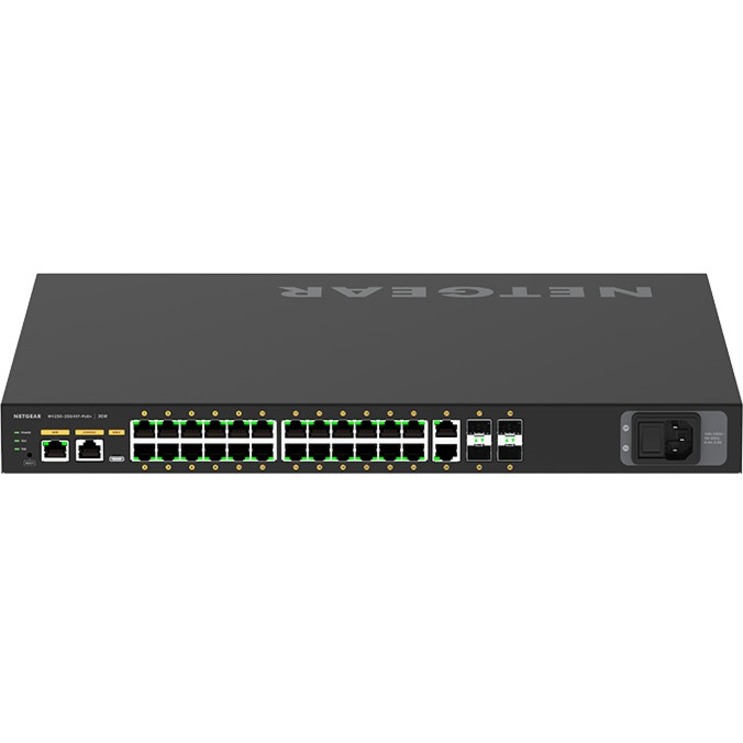

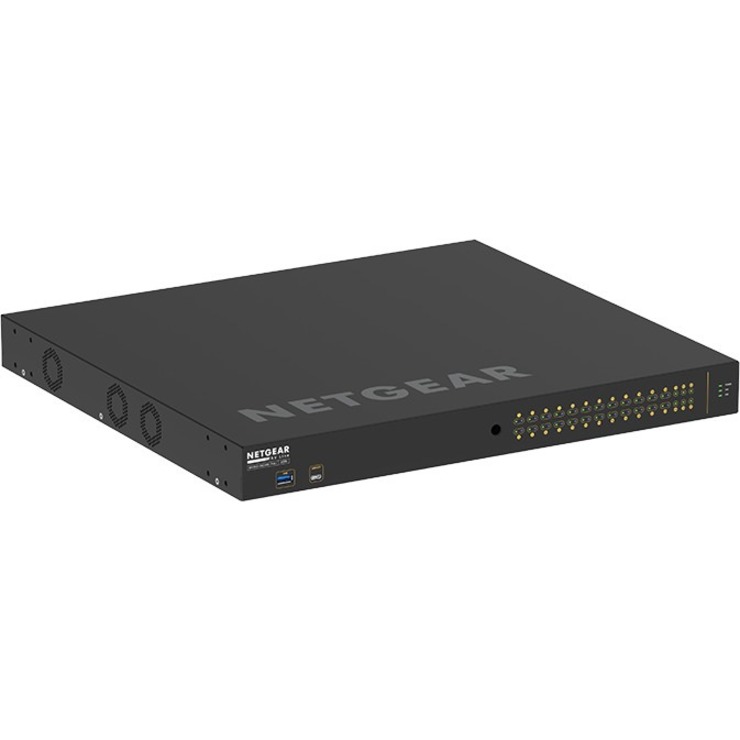

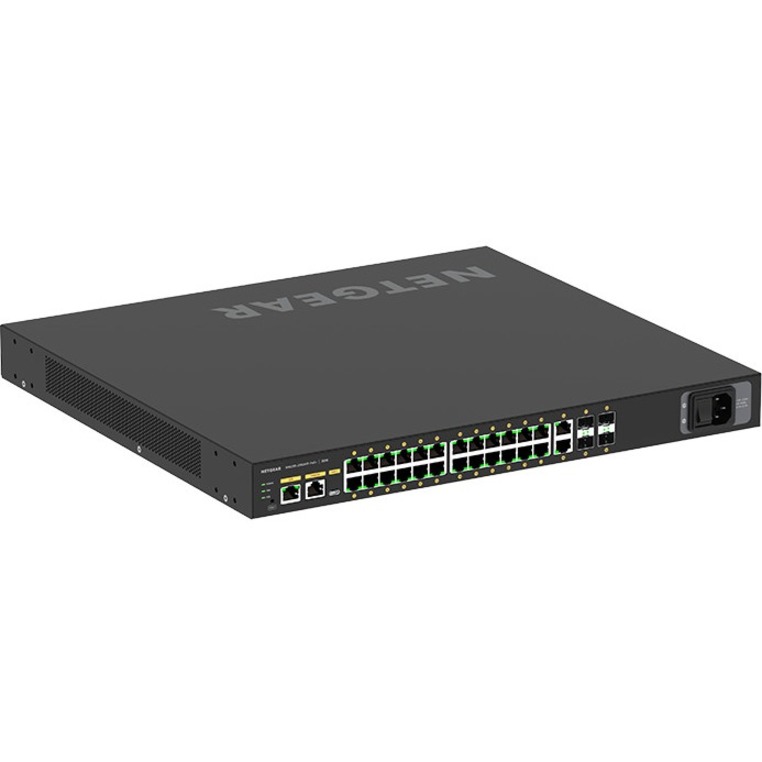

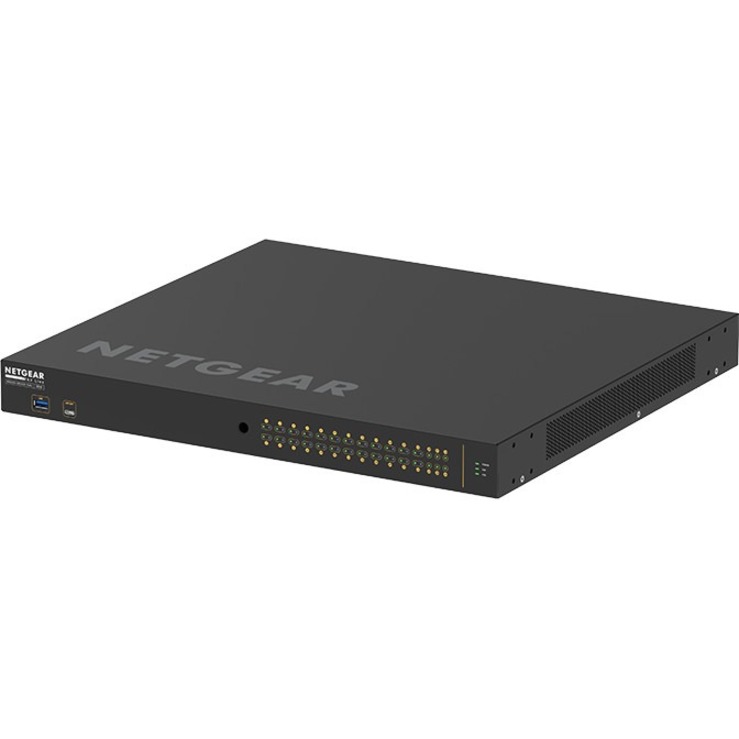

Netgear M4250-26G4XF-PoE+ AV Line Managed Switch

Overview

Tech Specs

Specifications

Manufacturer	Netgear, Inc
Manufacturer Part Number	GSM4230PX-100NAS
Manufacturer Website Address	http://www.netgear.com
Brand Name	Netgear
Product Line	AV Line
Product Series	M4250
Product Model	M4250-26G4XF-PoE+
Product Name	M4250-26G4XF-PoE+ AV Line Managed Switch
Marketing Information	Switching Engineered for AV over IP Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches. Highlights Extended AV features Dedicated AV web-based GUI interface for more specific AV installations Color-based AV profiles can be applied to the different ports Dante, Q-SYS, AES67 and AVB audio profiles AVB requires a license (sold separately NVX, SVSI, Q-SYS, NDI and Dante video profiles Audio / video / control mixed profiles Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG and IGMP Plus Common Layer 2 and Layer 3 switching engine across all M4250 models Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4300 and M4500 series Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2 Audio Video Bridging (AVB) services AVB is one of the many features designed into the M4250 product line AVB is an industry standard for transporting content over a network AVB is used most often when very low latency is required such as in live performances when lip sync is critical All of the AV Line M4250 switches can be optionally licensed for AVB support Other IT use cases Standard or recessed mounting with all ports in the back, or all ports in the front Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV Industry standard management Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN Single-pane-of-glass NMS300 management platform with centralized firmware updates and massconfiguration support Industry leading warranty NETGEAR M4250 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	24
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet PoE+ 2 x Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 10GBase-X

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	480 W
Power Source	Power Supply
Number of Power Supplies Installed	1
Power Consumption	46.80 W
Plug/Connector Type	C14

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Table Top
Height	15.7"
Width	17.3"
Depth	1.7"
Weight (Approximate)	12.02 lb

Miscellaneous

Package Contents	M4250-26G4XF-PoE+ AV Line Managed Switch Power Cord(s) RJ45 Straight-through Wiring Serial Console Cable to DB9 USB Type-C to USB-A 2.0 Console Cable Rubber Caps for the SFP/SFP+ Sockets Rubber Footpads for Tabletop Installation Installation Guide 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
Country of Origin	Thailand
Environmentally Friendly	Yes
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

Lifetime
