MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX MOTHERBOARD

Name: MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX MOTHERBOARD
Brand: MSI SOURCING
SKU: JT3692
Price: 197.84 USD
Availability: InStock

MSI SOURCING

PCN#

JT3692

MFG#

B550TMHWKMWI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$197.84

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Ryzen 9 Processor Supported
128 GB DDR4 SDRAM Maximum RAM
DIMM, UDIMM
4 x Memory Slots
Gigabit Ethernet
2.5Gigabit Ethernet
Yes
Yes
6 x SATA Interfaces

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

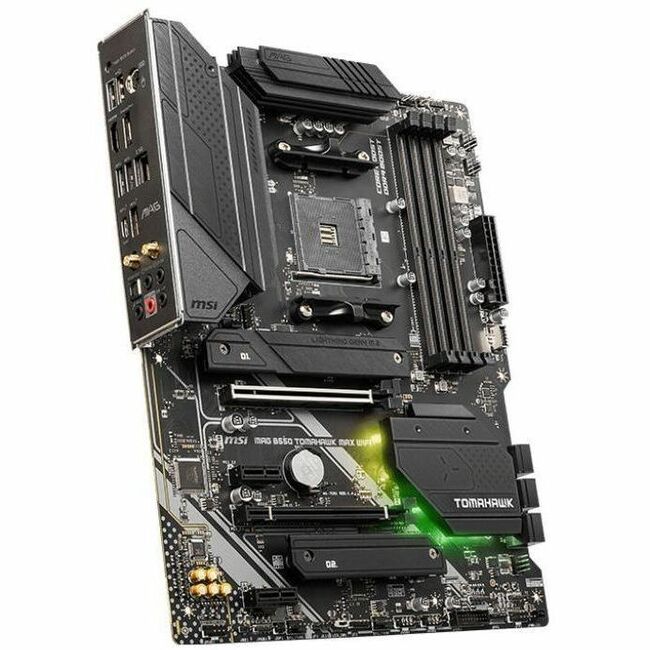

MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	B550TMHWKMWI
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	MAG
Product Model	B550 TOMAHAWK MAX WIFI
Product Name	B550 TOMAHAWK MAX WIFI
Marketing Information	Conquer the Battlefield The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers. THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. LIGHTNING GEN 4 M.2 Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Product Type	Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	AMD
Chipset Model	B550
Total Processor Supported	1
Processor Socket	Socket AM4
Processor Supported	Ryzen 9
Multi GPU Supported	CrossFire

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	5100 MHz 5000 MHz 4866 MHz 4800 MHz 4600 MHz 4533 MHz 4400 MHz 4300 MHz 4266 MHz 4200 MHz 4133 MHz 4000 MHz 3866 MHz 3733 MHz 3600 MHz 3466 MHz 3400 MHz 3333 MHz 3300 MHz 3200 MHz 3000 MHz 2933 MHz 2666 MHz 2400 MHz 2133 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 10 1

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

Gigabit Ethernet	Yes
2.5Gigabit Ethernet	Yes

I/O Expansions

Total Number of Expansion Slots	4.0
Total Number of PCI Express Slots	4
Number of PCI Express x1 Slots	2
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 1 Type-A Ports	2
Number of USB 3.2 Gen 2 Type-A Ports	1
Number of USB 3.2 Gen 2 Type-C Ports	1
S/PDIF	Yes
HDMI	Yes
HDMI Version	2.1
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	2
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4

Physical Characteristics

Form Factor

ATX

Miscellaneous

Brand Compatibility	AMD
Country of Origin	China

Warranty

Limited Warranty

3 Year
