CUBI NUC 13MQG-203BUS VPRO/BAREBONE/CORE I5-1345U/3Y

Name: CUBI NUC 13MQG-203BUS VPRO/BAREBONE/CORE I5-1345U/3Y
Brand: MSI
SKU: NT7545
Price: 792.3 USD
Availability: InStock

MSI

PCN#

NT7545

MFG#

CUBI13MQG203B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$792.30

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

MSI Cubi NUC is a barebone PC ready to be configured with Hard drive, memory size, and operating system of your choice. This system is not a fully built system ready to be used. it requires additional hardware installation

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 Year Advance Replacement

Shipping Weight: 4 lbs.

MSI Cubi NUC 13MQG 203BUS Mini Barebone PC, Intel Core i5-1345U vPro Entperise (Windows OS, RAM, HDD are not included)

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	Cubi13MQG203B
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	Cubi NUC
Product Series	13MQ
Product Model	Cubi NUC 13MQG-203BUS
Product Name	Cubi NUC 13MQG-203BUS Barebone System
Marketing Information	The MSI Cubi NUC mini PC is compact and lightweight in size but is packed with the full power of the traditional desktop tower PC. Ideal for purpose-built computing for industrial, digital signage, office admin desk, or as local POS server, the MSI Cubi NUC PC is a robust client device solutions for your business or institution.
Product Type	Barebone System

Processor

Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Core i5
Processor Generation	13th Gen
Processor Model	i5-1345U
Processor Core	Deca-core (10 Core)
Processor Speed	3.50 GHz
Maximum Turbo Speed	4.70 GHz
64-bit Processing	Yes

Chipset

Chipset Manufacturer

Intel

Memory

Maximum Memory Supported	96 GB
Memory Technology	DDR5 SDRAM
Memory Standard	DDR5-5200/PC5-41600
Total Number of Memory Slots	2

Storage

Supported Storage Drive Interfaces	PCI Express NVMe 4.0 x4 Serial ATA
Supported Storage Drive Types	SSD

Controllers

Controller Type

NVMe

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	Iris Xe Graphics
Graphics Memory Technology	DDR5 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology	2.5 Gigabit Ethernet
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ax
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.3

I/O Expansions

Number of Total Expansion Bays	1
Number of 2.5" Bays	1
Number of M.2 Interfaces	4

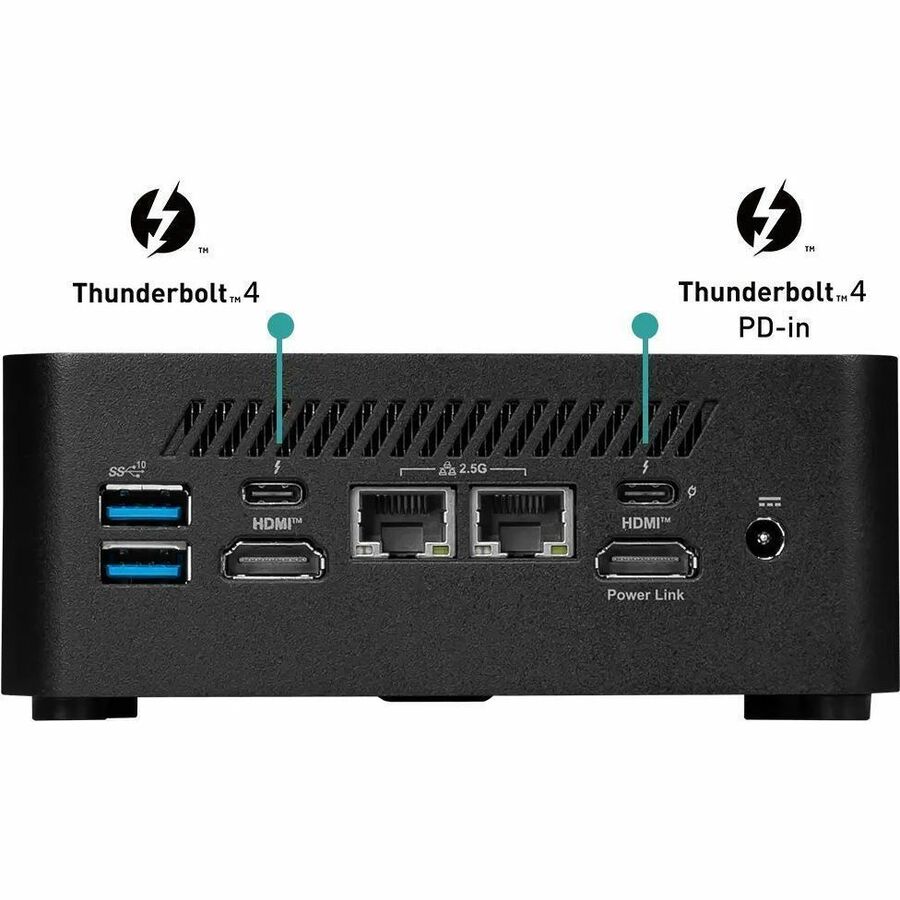

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	4
Number of USB 3.2 Gen 2 Type-A Ports	4
USB Type-C (Front)	No
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
DisplayPort	No
Number of Thunderbolt 4 Ports	2

Operating System

Operating System Supported

Windows 11 Home
Windows 11 Pro

Power Description

Maximum Power Supply Wattage

120 W

Physical Characteristics

Color Family	Black
Product Color	Core Black
Form Factor	Mini PC
Height	5.3"
Width	5.2"
Depth	2"
Weight (Approximate)	1.38 lb

Miscellaneous

Package Contents	Cubi NUC 13MQG-203BUS Barebone System AC Adapter
Energy Star	Yes
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
Country of Origin	China
TAA Compliant	No

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 Year Advance Replacement
