BLACKBIRD 4K HDMI MATRIX_ 8X8_ HDBASET_ HDR_ 18G_ 4K@60HZ_ YCBCR 4:4:4_ HDCP 2.2

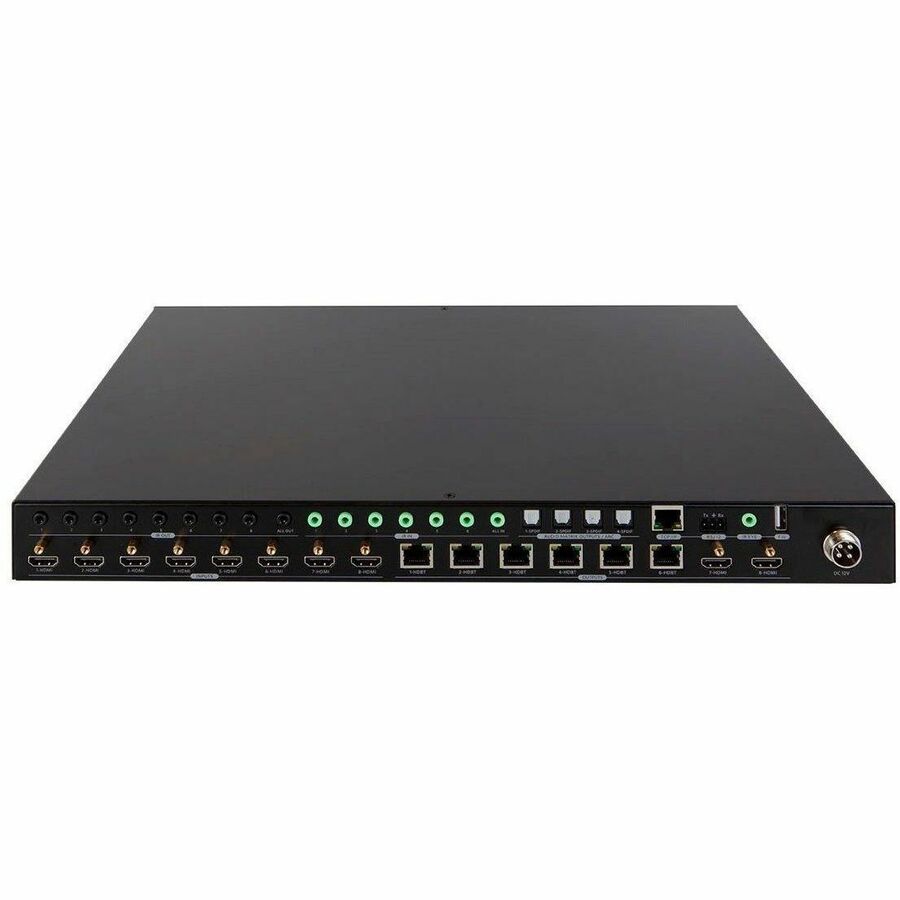

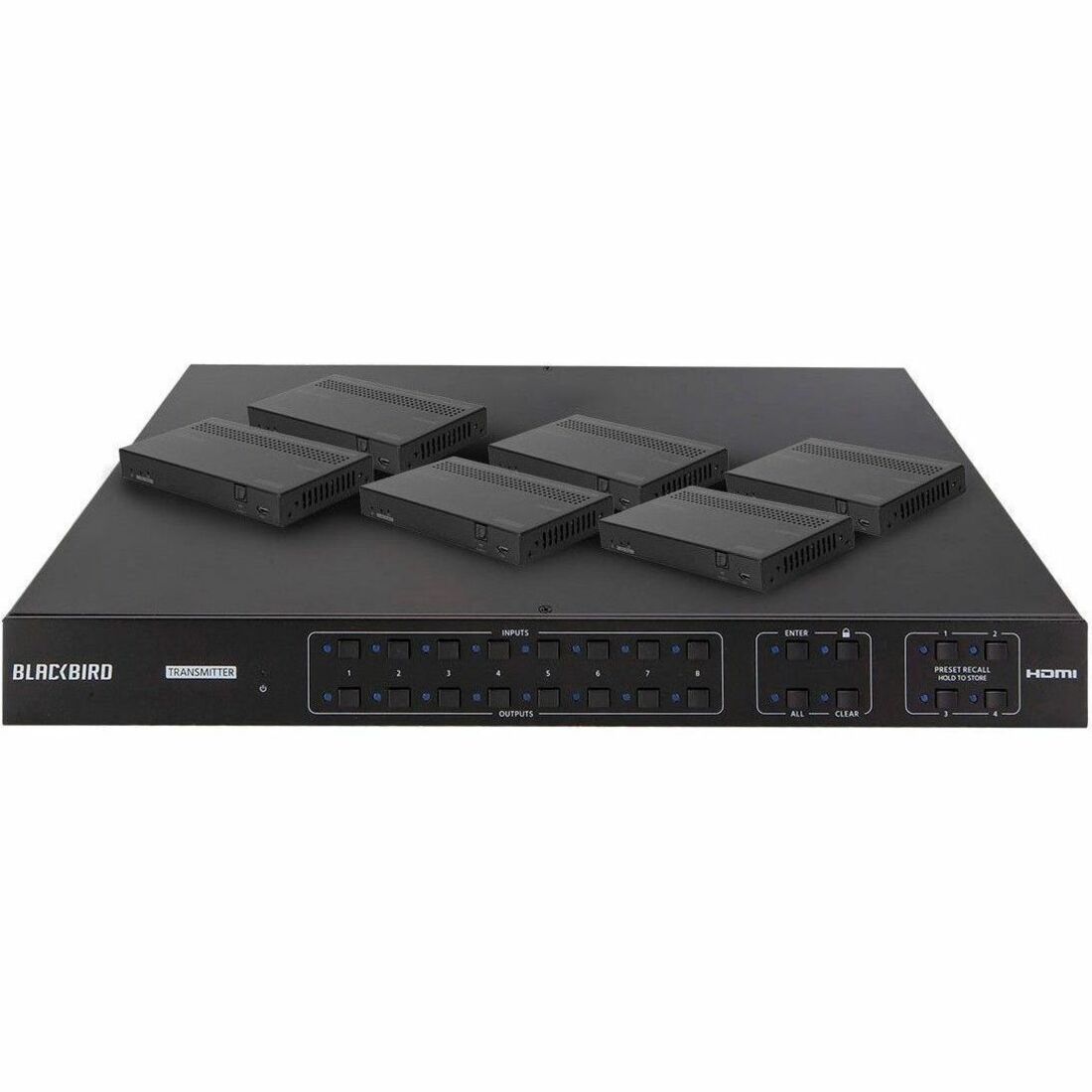

This Blackbird™ 4K 8x8 HDBaseT™ Matrix features 8 HDMI® inputs, 2 HDMI outputs, 6 HDBaseT outputs, and 4 digital optical S/PDIF audio outputs. It supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 and can transmit 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable. Audio extracted from the HDMI inputs, HDBaseT outputs, and Audio Return Channel (ARC) output from the HDBaseT receivers can be output using the 4 digital optical S/PDIF audio connectors. It supports bidirectional IR extension and features front panel buttons, IR remote control, RS-232, and Web GUI control options. It supports the Power over Cable (PoC) feature, which allows the receivers to draw their power from the matrix over the Ethernet cable. It includes smart EDID® management using the 4-pin DIP switch on the rear panel.

Features:

• Supports HDMI® resolutions up to 4K@60Hz with YCbCr 4:4:4 HDR, including 1080p@60Hz and 3D video
• Fully compliant with the HDMI 2.0 and HDCP™ 2.2 specifications
• Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080p signals to distances up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable

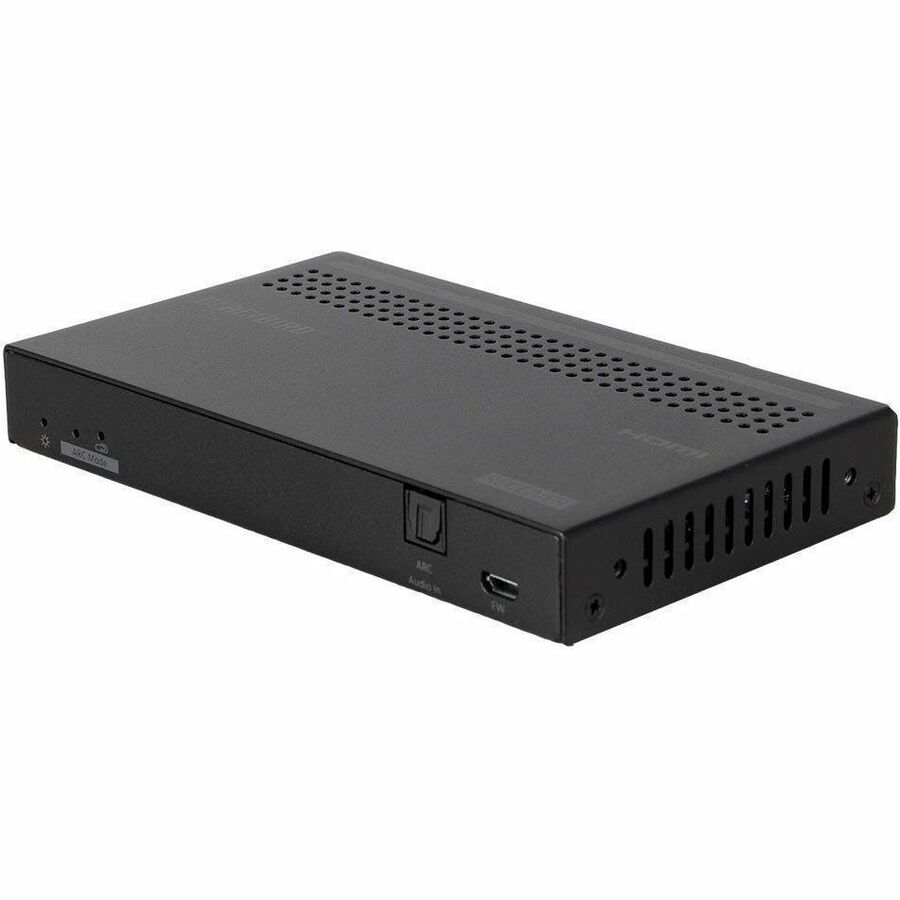

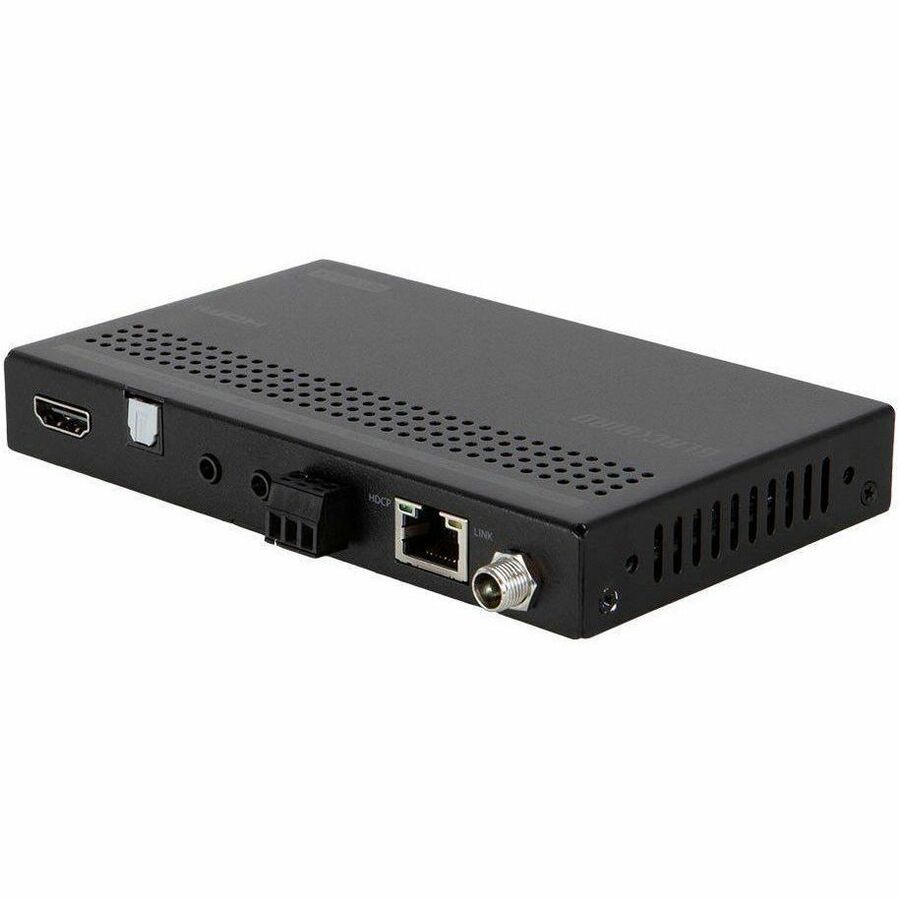

• Features 6 HDBaseT™ outputs and includes 6 receivers
• Supports the 24V Power over Cable (PoC) feature, allowing the receivers to draw their power from the matrix over the Ethernet cable
• Includes two HDMI outputs for connecting local displays
• Audio from the HDMI inputs, HDBaseT and HDMI outputs, and Audio Return Channel (ARC) audio from the receivers can be output to 4 digital optical S/PDIF audio outputs
• Includes smart EDID® management using the 4-pin DIP switch on the rear panel

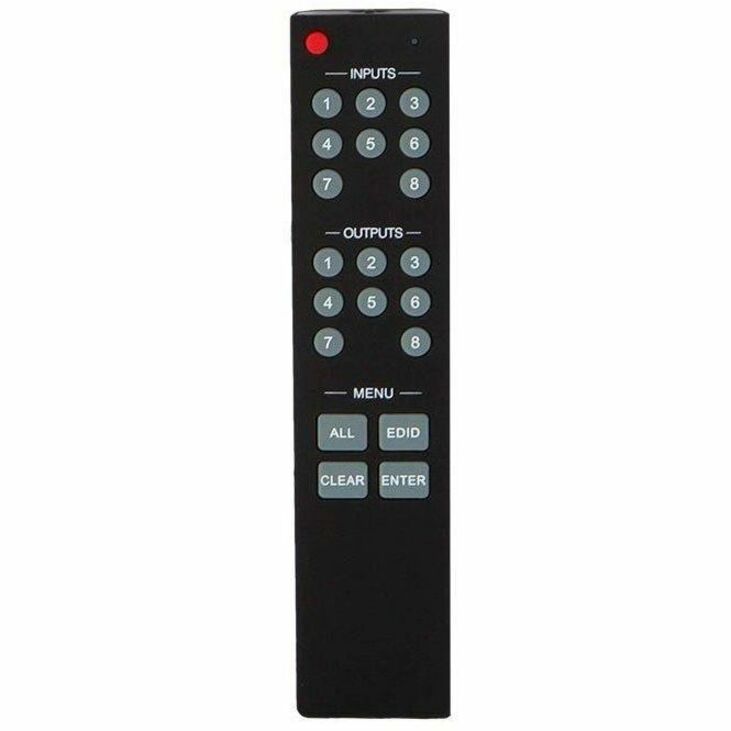

• Can be controlled using the front panel controls, the included IR remote control, or with a computer using an RS-232 or Ethernet connection

• Display
• Notebook
• Blu-ray Disc Player
• Gaming Console
• Projector
• TV

• Blackbird 39670 Audio/Video Switchbox
• 6x Extenders over HDBaseT
