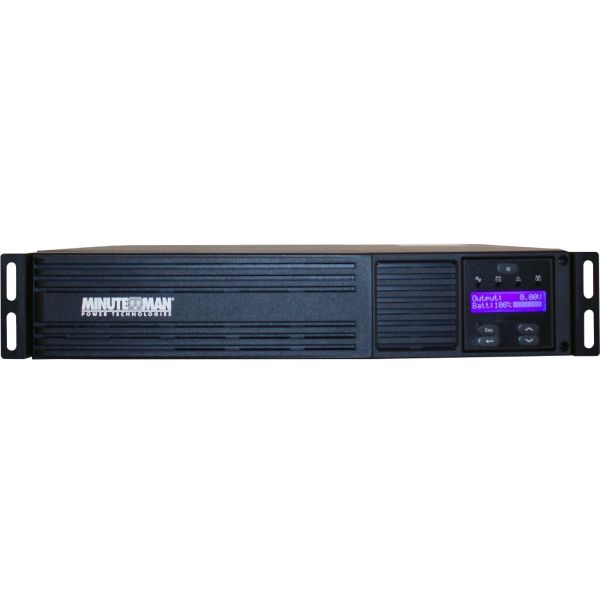

Minuteman EXR Series Line Interactive Uninterruptible Power Supply

The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!

The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.

EXR® Key Features

Key Features Include:

• 0.9 power factor - increased capacity without migrating to larger models
• NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
• UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
• Load shedding - two power banks allow equipment prioritizing for increased runtime
• Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.

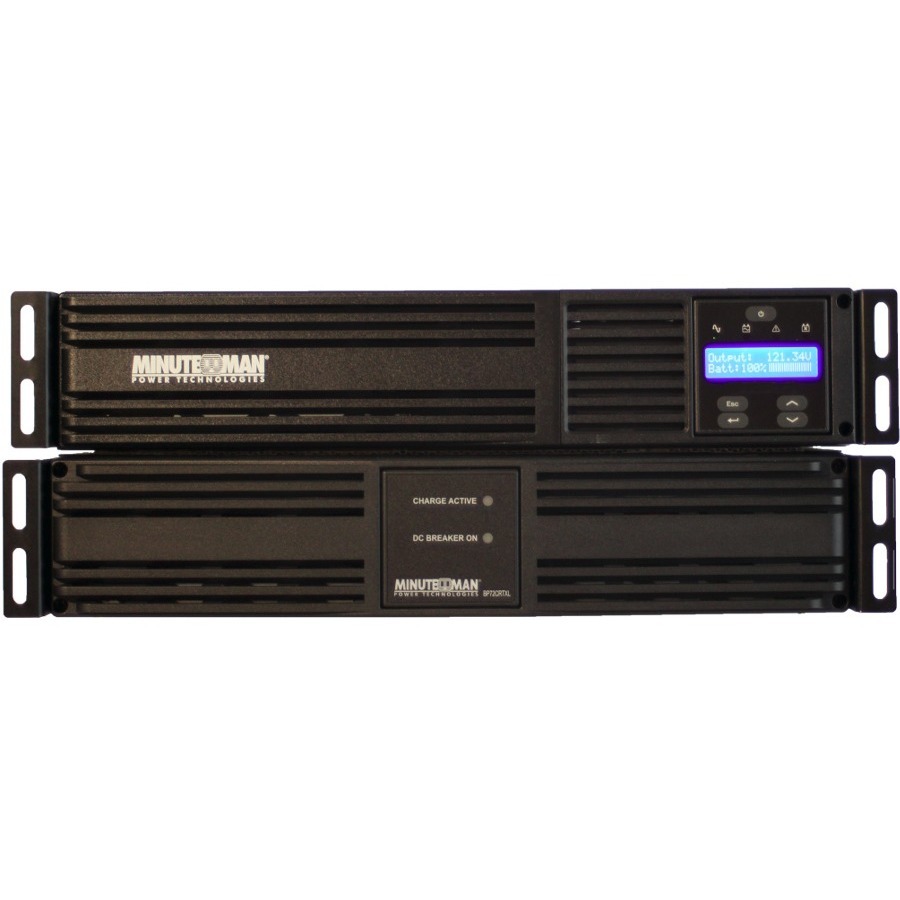

• Auto-recognition of external battery packs - automatically recalculate runtimes
• Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand

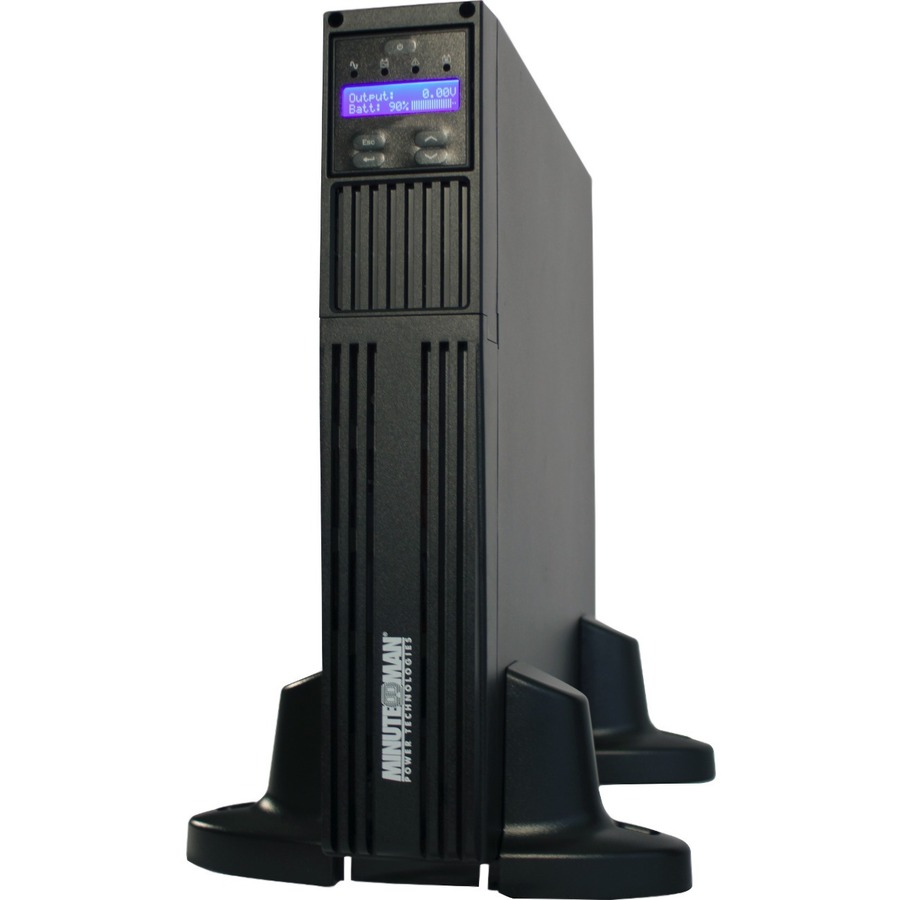

• Flexible installation - rack or tower configurable; wall mount kits available
• Simultaneous USB, RS232, and SNMP communications
• Minuteman® SentryHD™ - UPS monitoring and control software included
• Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
• Dedicated remote Emergency Power Off (EPO) port
• 120V & 208V - 208V models available (1500 & 3000VA models)
• cULus certification - NOM certification (Mexico)
• RoHS 2 compliant
• Energy Star 2.0 certification

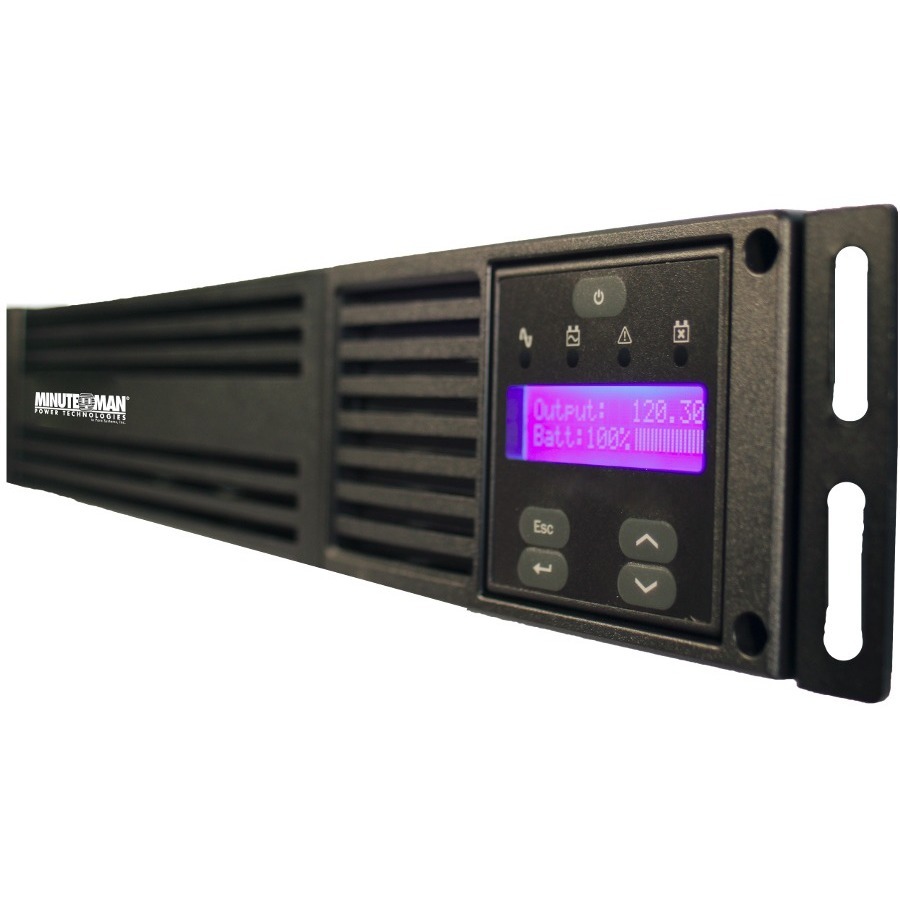

Front LCD Panel

The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:

• Input and Output Voltage
• Estimated runtime
• UPS Operating Mode
• UPS Self-test results
• Battery Condition
• Display model and serial number
• View load bank status and capacities
• Display battery module part number
• Replace Error Codes with descriptions

The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.

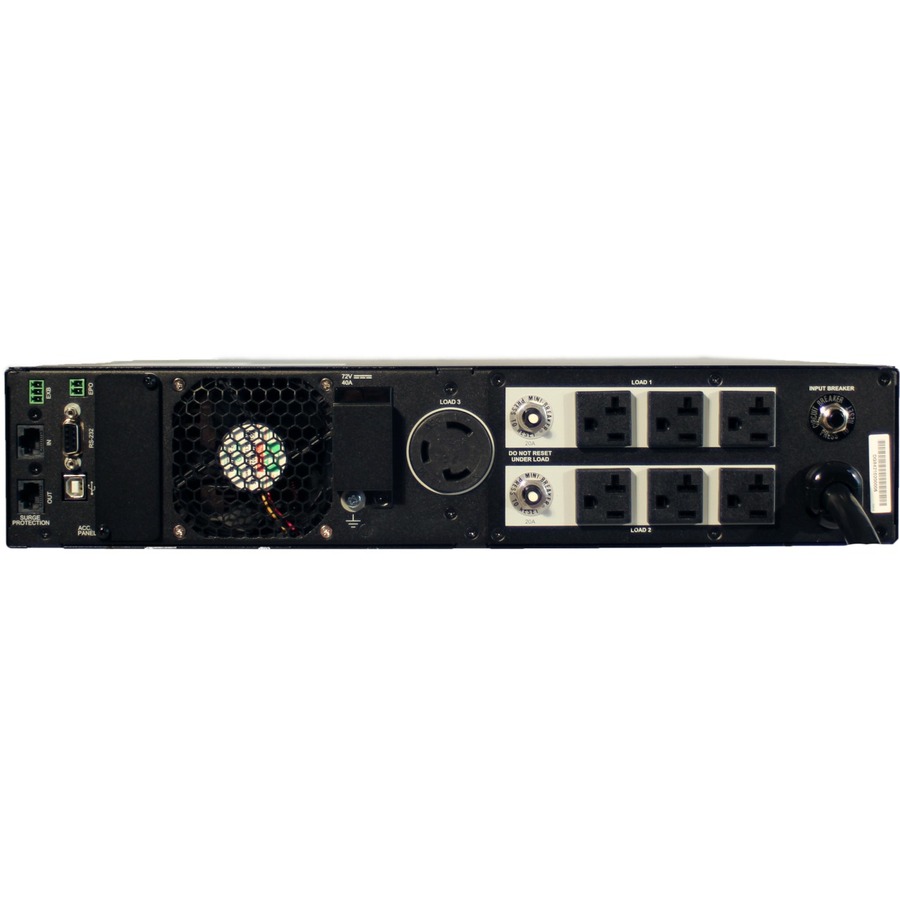

• NEMA 5-20R
• NEMA L5-30R
• NEMA 6-15/20R
• NEMA L6-30R

• 6 x NEMA 5-20R
• 1 x NEMA L5-30R
• 6 x NEMA 6-15/20R
• 1 x NEMA L6-30R

• Network
• Data Center
• Network Closet
• Security System
• Education
• Mission Critical Equipment
• Electronic Equipment

• 120 V AC
• 208 V AC

Front LCD Panel:

• Input and Output Voltage
• Estimated runtime
• UPS Operating Mode
• UPS Self-test results
• Battery Condition
• Display model and serial number
• View load bank status and capacities
• Display battery module part number
• Replace Error Codes with descriptions
