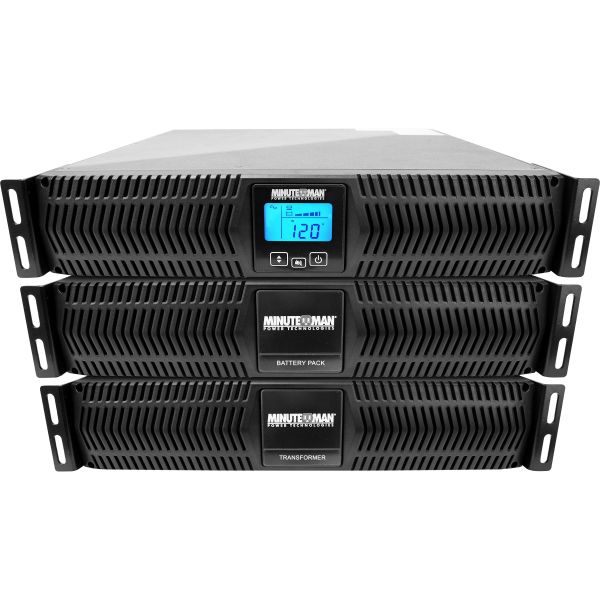

Minuteman 5kVA On-line Rack/Tower UPS

by
MINUTEMAN POWER
PCN#
XC0900
MFG#
ED5000RTXL
main product photo
fotorama-image
fotorama-image
$5,014.80
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 6U Rack/Tower
  • 6.30 Minute Stand
  • by

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 330 lbs.
Minuteman 5kVA On-line Rack/Tower UPS
Overview
Tech Specs
Specifications

Manufacturer

Para Systems, Inc

Manufacturer Part Number

ED5000RTXL

Manufacturer Website Address

http://www.minutemanups.com

Brand Name

Minuteman

Product Line

Endeavor

Product Model

ED5000RTXL

Product Name

5kVA On-line Rack/Tower UPS

Marketing Information

Protection For Mission-critical Applications

The Minuteman® EndeavorTM 5-10kVA Series UPS combines transient free pure sine wave output, extended runtime capability, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.

Product Type

Double Conversion Online UPS
Technical Information

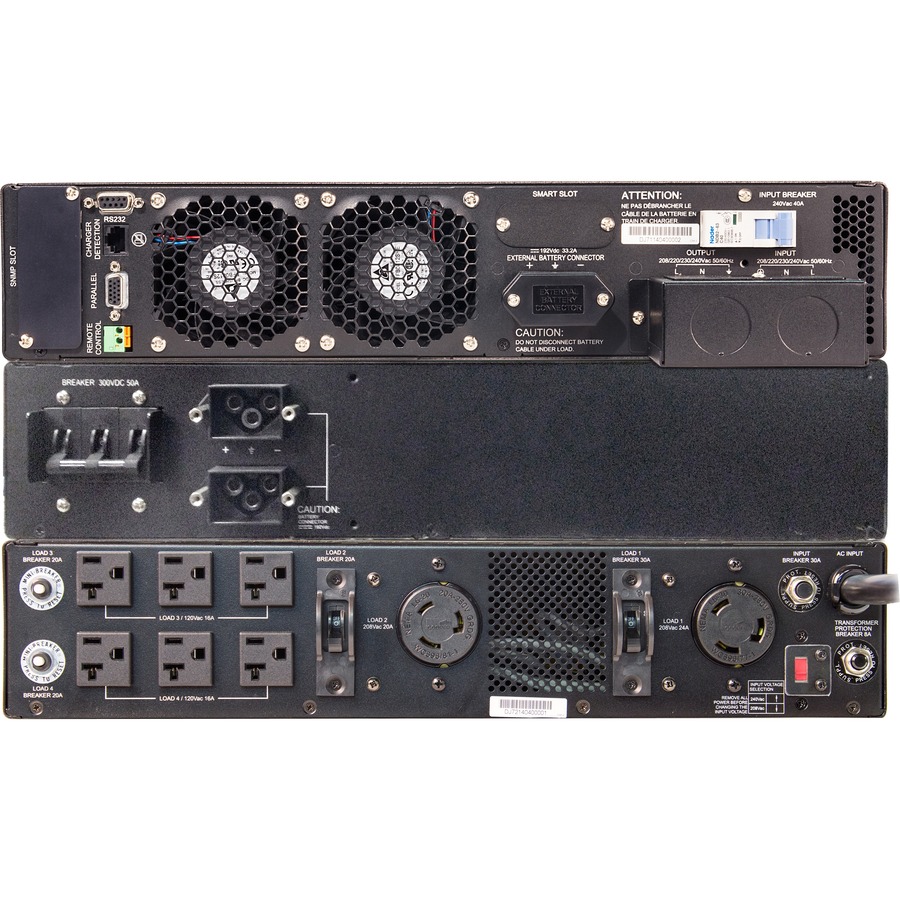

Plug/Connector Type

NEMA L6-30P

Receptacle Type

  • NEMA L6-30R
  • NEMA L6-20R
  • NEMA 5-15/20R

Receptacle Detail

  • 1 x NEMA L6-30R
  • 1 x NEMA L6-20R
  • 6 x NEMA 5-15/20R

Protection Type

Surge

Overload Protection

Yes

EMI/RFI Noise Filter

Yes
Power Description

Load Capacity (VA)

4556 VA

Input Voltage

208 V AC

Output Voltage

  • 120 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC

Input Frequency

70 Hz

Output Frequency

60 Hz

Waveform Type

Pure Sine Wave

Surge Energy Rating

1050 J
Management

Network Management

SNMP Manageable

Bypass Switch

Internal
Interfaces/Ports

Serial Port

Yes
Battery Information

Backup/Run Time (Full Load)

6.30 Minute

Backup/Run Time (Half Load)

12.30 Minute
Physical Characteristics

Form Factor

Rack/Tower

Rack Height

6U

Height

10.5"

Width

17.3"

Depth

26.2"

Weight (Approximate)

198.50 lb
Miscellaneous

Software Included

Operating System Shutdown

Energy Star

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS) 2
Warranty

Limited Warranty

3 Year
