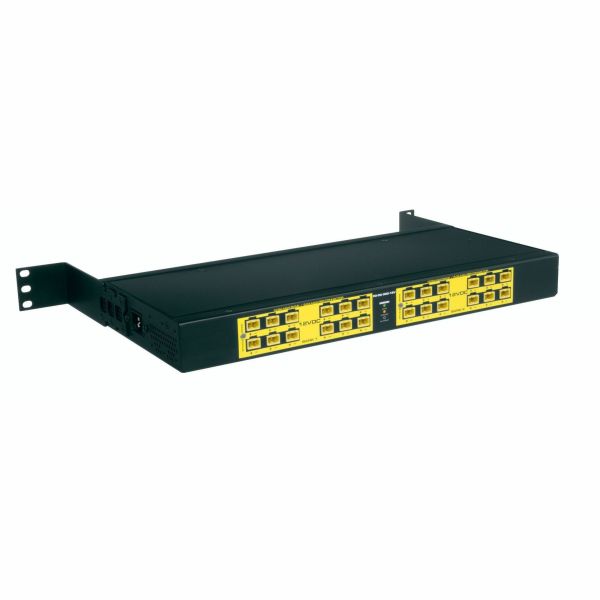

Middle Atlantic DC PDU Series 300W 12V PDU

Name: Middle Atlantic DC PDU Series 300W 12V PDU
Brand: LEGRAND AV - MIDDLE ATLANTIC
SKU: HJ2645
Price: 1403.1 USD
Availability: InStock

LEGRAND AV - MIDDLE ATLANTIC

PCN#

HJ2645

MFG#

PD-DC-300-12V

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,403.10

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

DC power distribution series
1RU PDU
10 amp
12V

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 9 lbs.

Middle Atlantic DC PDU Series 300W 12V PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PD-DC-300-12V
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Model	PD-DC-300-12V
Product Name	Middle Atlantic DC Maximum Power 300W 12V Power Distribution Unit
Marketing Information	Clean up your rack by replacing messy, space consuming wall warts and power strips with the Select Series DC Power Distribution designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. The PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. Additionally, with flexible mounting options, you can bring DC Power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience. 12V, 25A Max (300W) Industry-leading number of outputs. Power as many as 24 devices. Basic surge protection and overload protection on the AC input. Individual redundancy built in with auto-resetting PTC overload protection on each individual output. Ultimate mounting flexibility. The reversible, adjustable mounting ears support many mounting methods. You can even mount the unit to the back or the side of the rack! Color-coded screw terminal connectors with industry standard voltages and polarity labeling are included for easy identification. 5 volts indicated by orange connectors. 12 volts indicated by yellow connectors. 24 volts indicated by red connectors. 18 volts indicated by blue connectors. LED indicator lights show activity on each output and alert you to maximum capacity on each voltage bank. The ability to trim your power cords to a suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow. The ultra-quiet, thermostatic temperature-controlled fan has automatic speed adjustment to keep your PDU from overheating.
Packaged Quantity	1
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA 5-15P
Plug/Connector Detail	1 x NEMA 5-15P
Receptacle Type	Screw Terminal
Receptacle Detail	24 x Screw Terminal
Protection Type	Surge Protection Overload Protection

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	120 V AC - 230 V AC
Output Voltage	12 V DC
Power Rating (Watt)	300 W
Input Current	25 A

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	0U/1U
Height	1.8"
Width	19"
Depth	7.3"
Weight (Approximate)	8.10 lb

Miscellaneous

Package Contents	PD-DC-300-12V 24-Outlets PDU Flexible Mounting Hardware Color-coded Screw Terminal Connectors to Connect Devices 1 x 6ft IEC Power Cord
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
