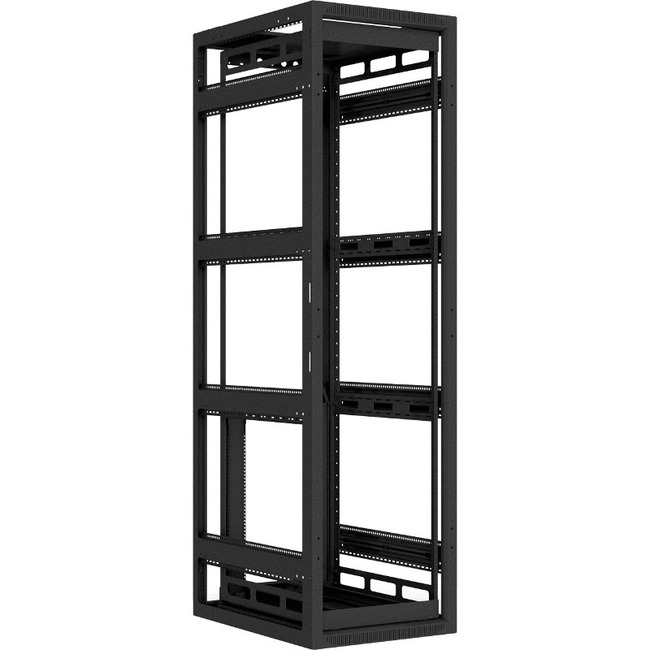

Middle Atlantic 42 RU AXS Series In Rack (IR), 26 Inches Deep

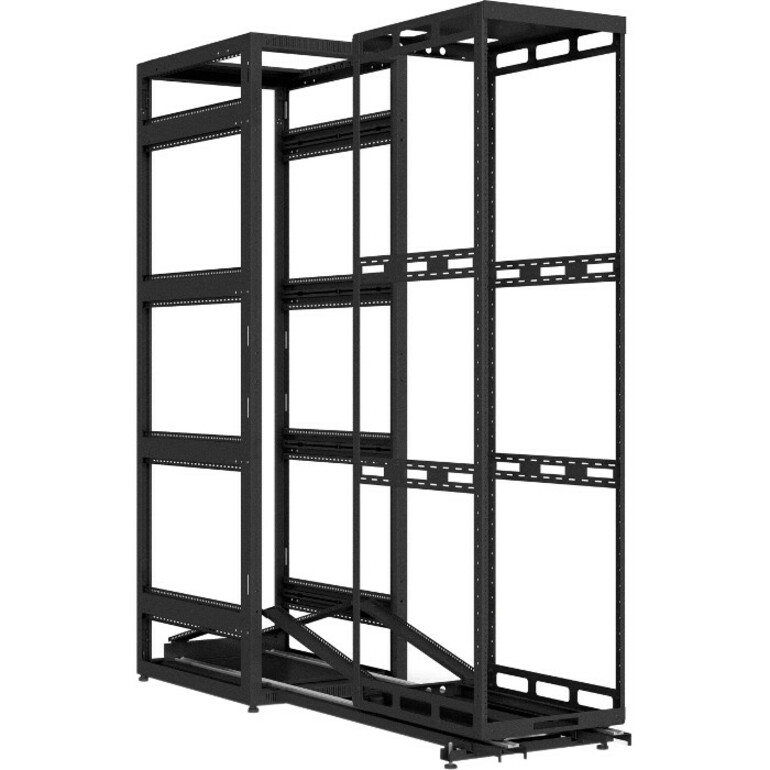

Roll entire bays of equipment straight out for service and installation flexibility. A factory-assembled AXS system in a rack (IR) is ideal for access to rear equipment connections or when space-limited environments require equipment bays to be placed up against a wall.

• 42 useable RUs in a 45RU enclosure
• 26" of useable depth in a32" deep enclosure
• The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the AXS system
• Seismically rated when installed with AXS-IR-Z4K kit
• Meets OSHPD OPM requirements in the State of California when using AXS-IR-Z4K seismic mounting kit
• AXS includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces
• Includes extending cable carriers for effective cable management when the AXS is pulled out or retracted
• Includes rack, rack frame, cable carriers, base, and safety leashes
• Service Tracks are required to pull AXS out of Host Enclosure for servicing
• Accepts standard BGR options like doors, side panels, tops, etc. (see below for all Compatible Products)

• Cable Management
• Fixed Front Rail

• 42 RU AXS Series In Rack (IR), 26 Inches Deep
• Cable Carriers
• Base
• Safety Leashes

• Restriction of Hazardous Substances (RoHS)
• Restriction of Hazardous Substances (RoHS) 3
